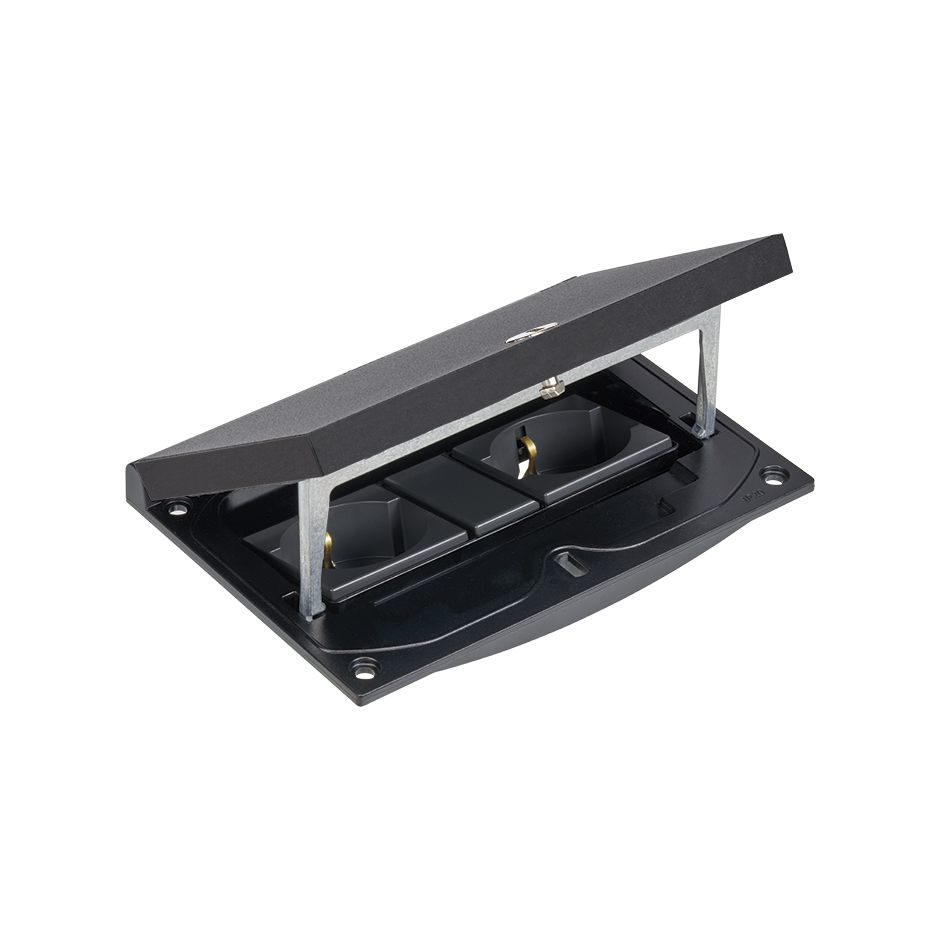

IP66 Mechanism holder and manual frame with 2 italian P40 socket and 22,5x45mm K45 mechanism

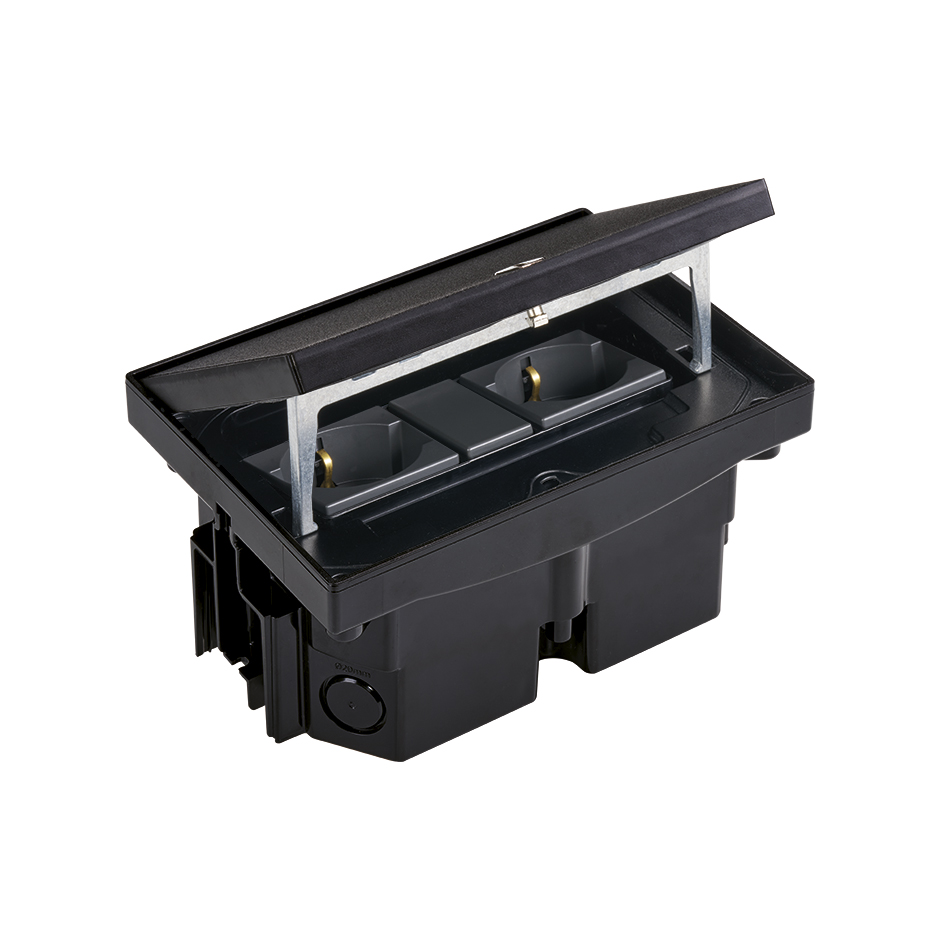

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. It consists of a frame for manual closure mechanisms with 2 Italian P40 bases and the capacity for K45 function of 22.5x45mm. In combination with its tray, it allows installation in technical flooring or pavement. The product design, combined with its manufacture using stainless steel, achieves a robust, solid, and secure installation as it withstands a water jet of 1 kg/cm² in any direction, reaching an IP66 protection rating when the lid is closed. It also supports a maximum load of 2000 kg and has an IK08 impact resistance. It maintains an optimal bend radius for wiring connections for high-category voice and data. Available is our accessory for plug connection with the lid closed, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility of leveling our box in case of irregular flooring (see reference KFA1003), or the capability to concatenate more than one box (see reference KFA1002).
