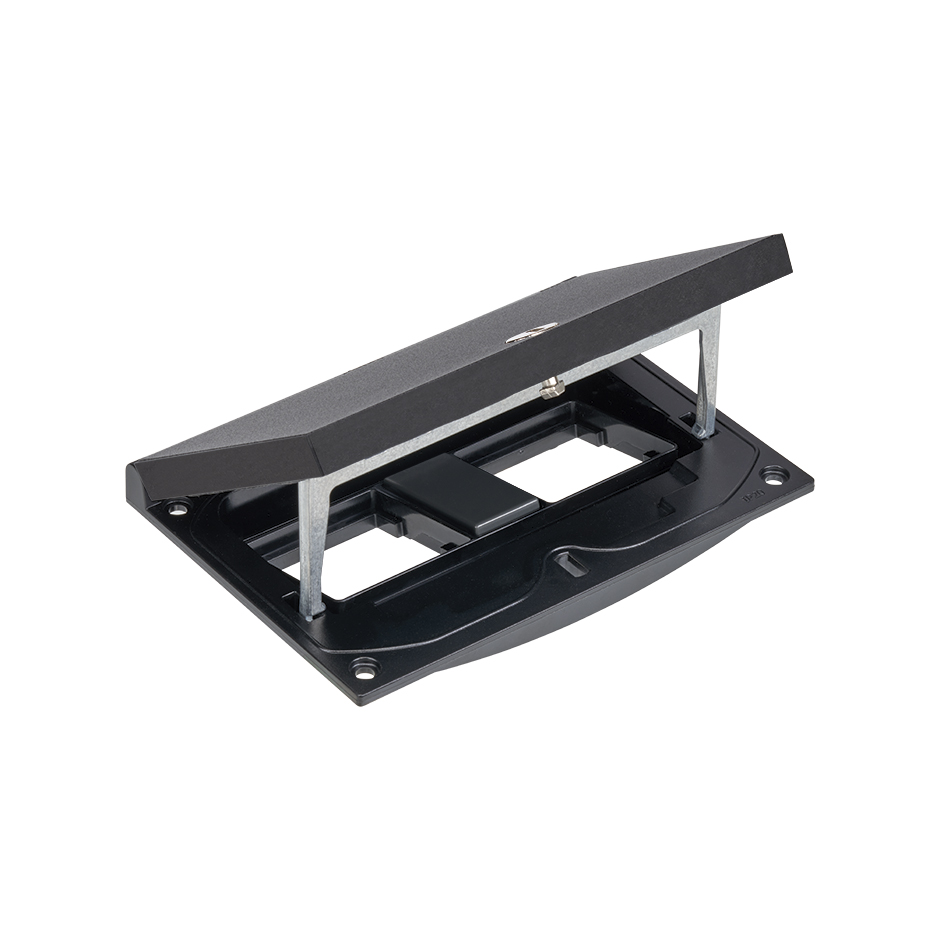

IP66 Mechanism holder and manual frame for 2 45x45mm and 22,5x45mm K45 mechanisms

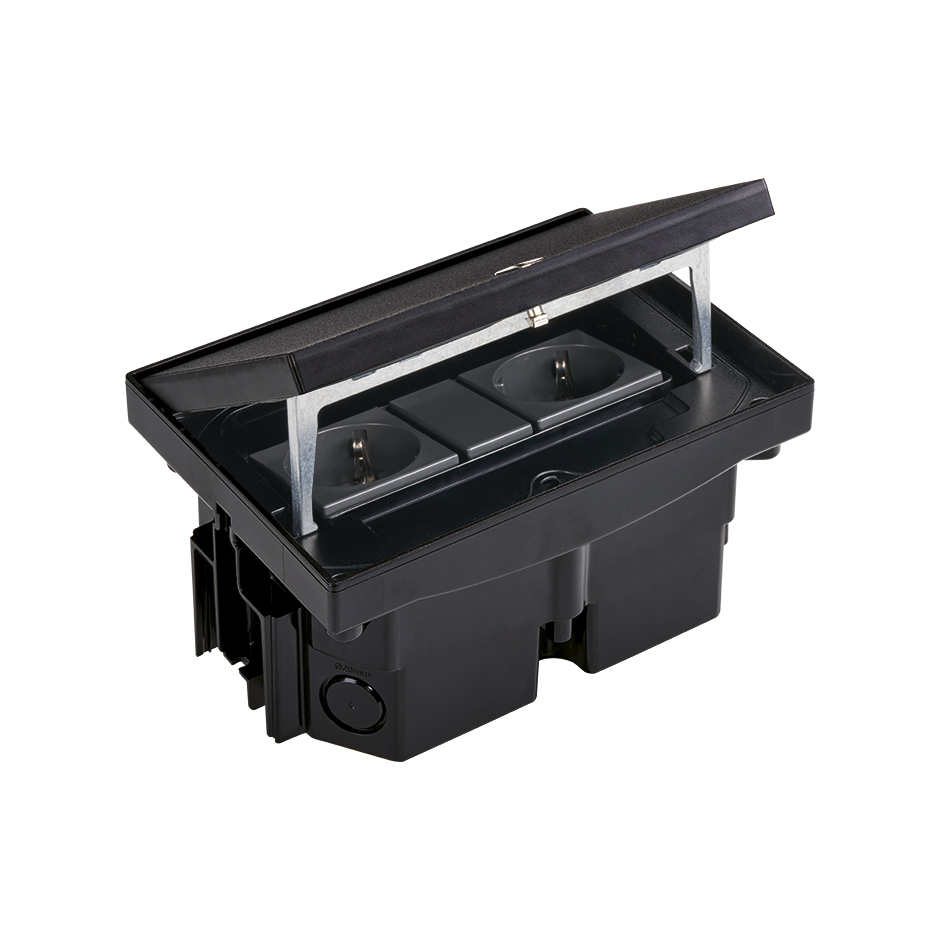

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a manual closure mechanism frame with a capacity for 2 K45 functions of 45x45mm and another of 22.5x45mm. In combination with its bucket, it will allow installation in technical flooring or pavement. The product design, along with its manufacturing in stainless steel, achieves a robust, solid, and secure installation as it withstands a water jet of 1 kg/cm² in any direction, reaching a protection rating of IP66 when the lid is closed. It also supports a maximum load of 2000 kg and has an IK08 impact resistance. It maintains an optimal cable bending radius for high-category voice and data connections. Our accessory for plug connection with the lid closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility to level our box in case of having an uneven substrate (see reference KFA1003), or the ability to concatenate more than one box (see reference KFA1002).
