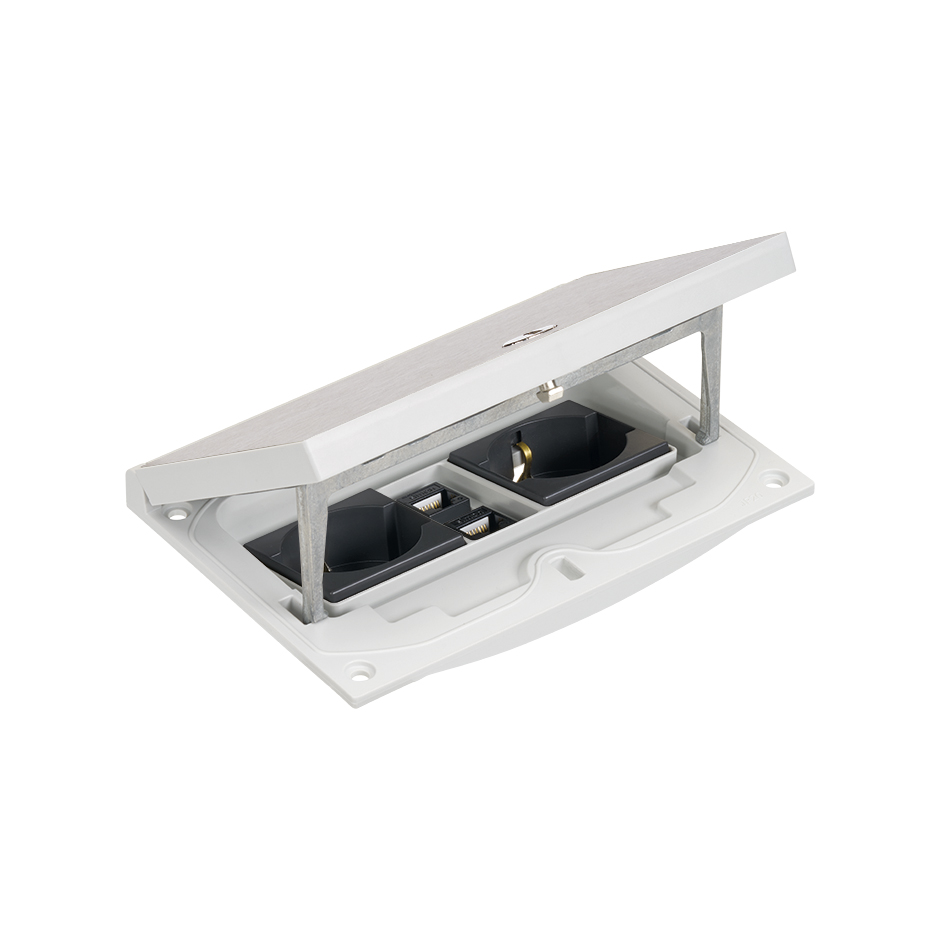

IP66 Mechanism holder and manual frame with 2 italian P40 socket and 2 RJ45 6 UTP

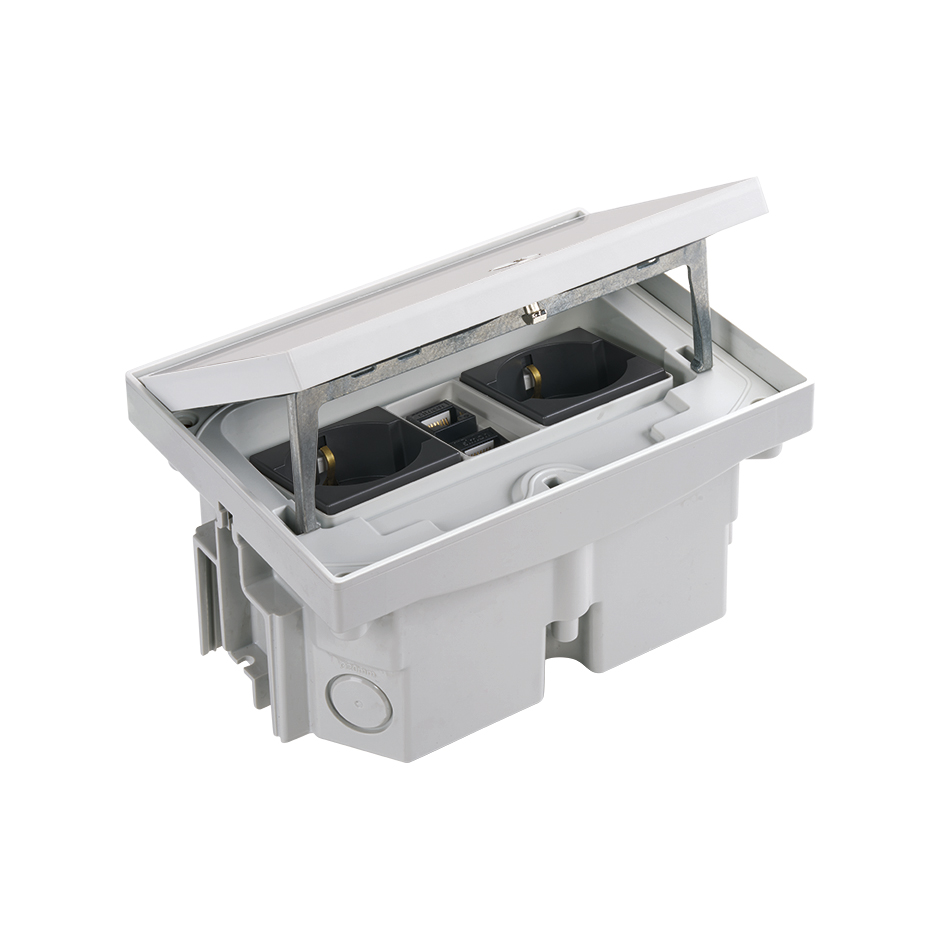

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a manual locking frame for mechanisms with 2 Italian P40 sockets and 2 RJ45 category 6 UTP connectors. In combination with its base, it will allow installation in technical flooring or pavement. The product design, combined with its stainless steel construction, achieves a robust, solid, and secure installation as it withstands a water jet of 1 kg/cm² from any direction, reaching a protection rating of IP66 with the lid closed. It also supports a maximum load of 2000 kg and has an IK08 impact resistance. It maintains an optimal bending radius for high-category voice and data connections. Our accessory for connecting a plug with the lid closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility of leveling our box in case of an irregular floor (see reference KFA1003), or the ability to link more than one box (see reference KFA1002).
