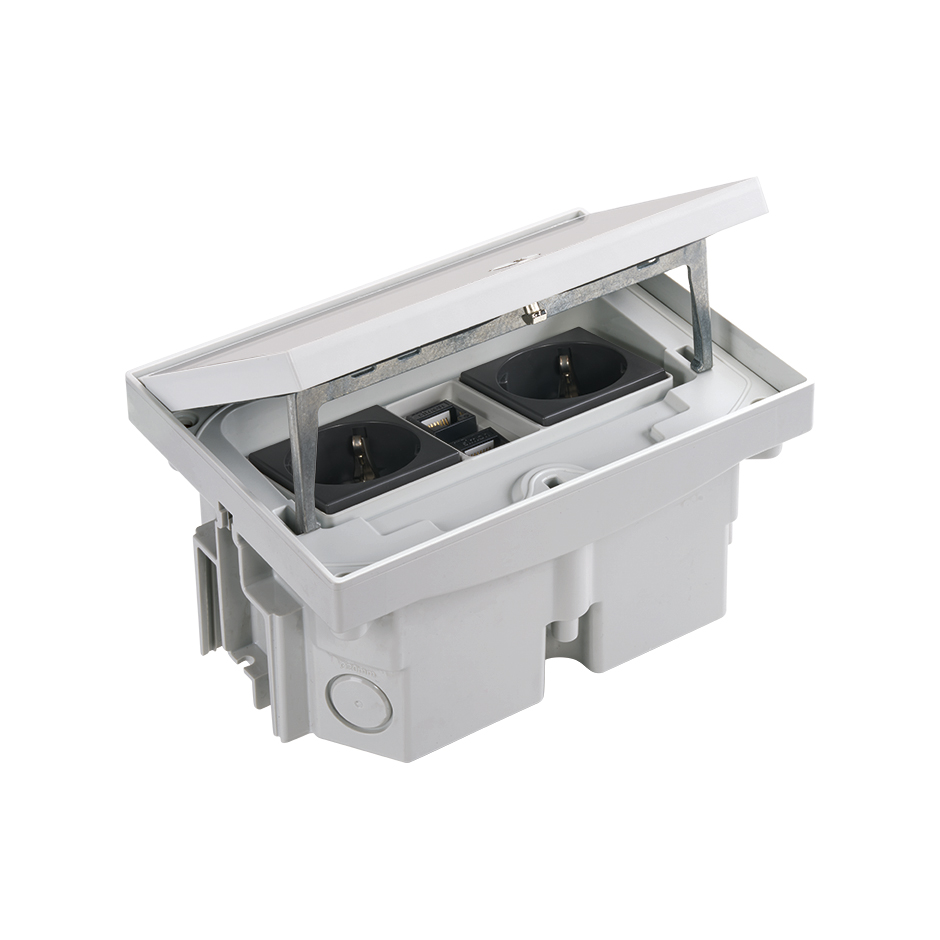

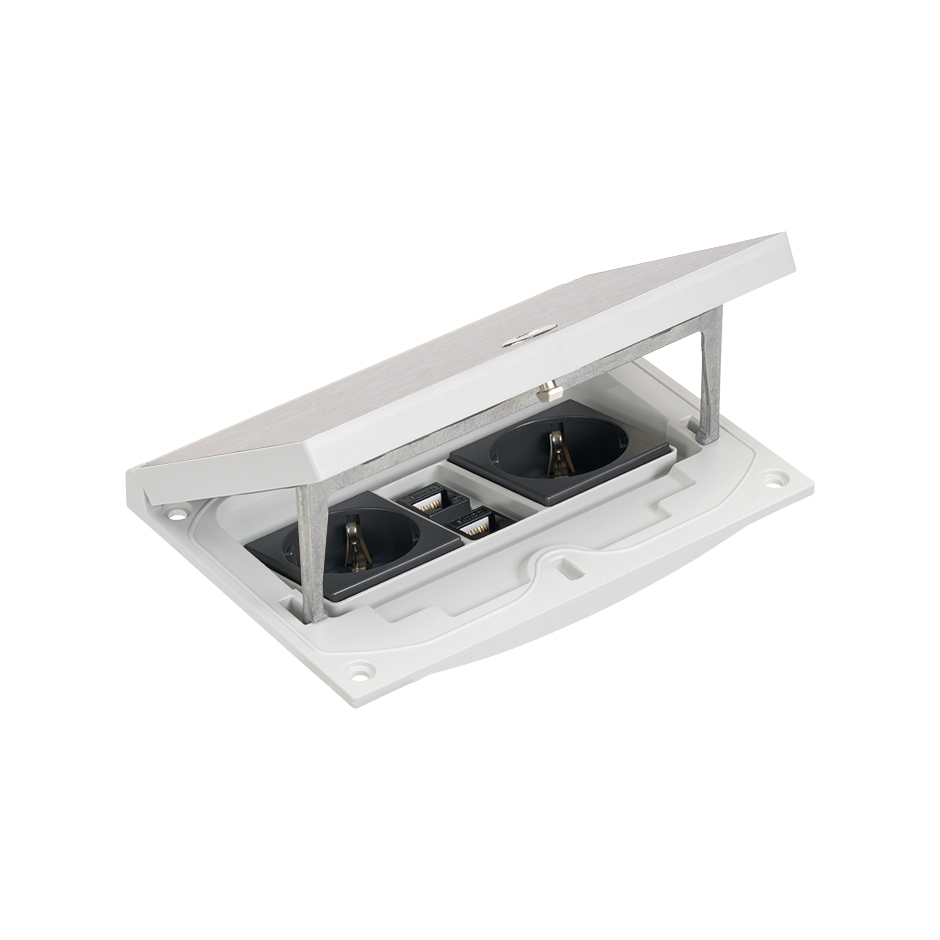

IP66 Mechanism holder and security frame with 2 schuko and 2 RJ45 6 UTP

Simon completely renews its range of waterproof floor boxes for indoor and outdoor environments. This is a mechanism support frame with a security lock for environments that require restricted access, featuring 2 Schuko sockets and 2 RJ45 Category 6 UTP connectors. In combination with its basin, it allows for installation in raised floors or pavement. The product design, combined with its stainless steel construction, ensures a robust, solid, and secure installation as it can withstand a water jet of 1 kg/cm² from any direction, achieving an IP66 protection rating with the lid closed. It also supports a maximum load of 2000 kg and has an IK08 impact resistance. It maintains an optimal bending radius for high-category voice and data connections. Our accessory for connecting a plug with a closed lid is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the option to level our box in case of an uneven slab (see reference KFA1003), or the ability to link multiple boxes together (see reference KFA1002).
