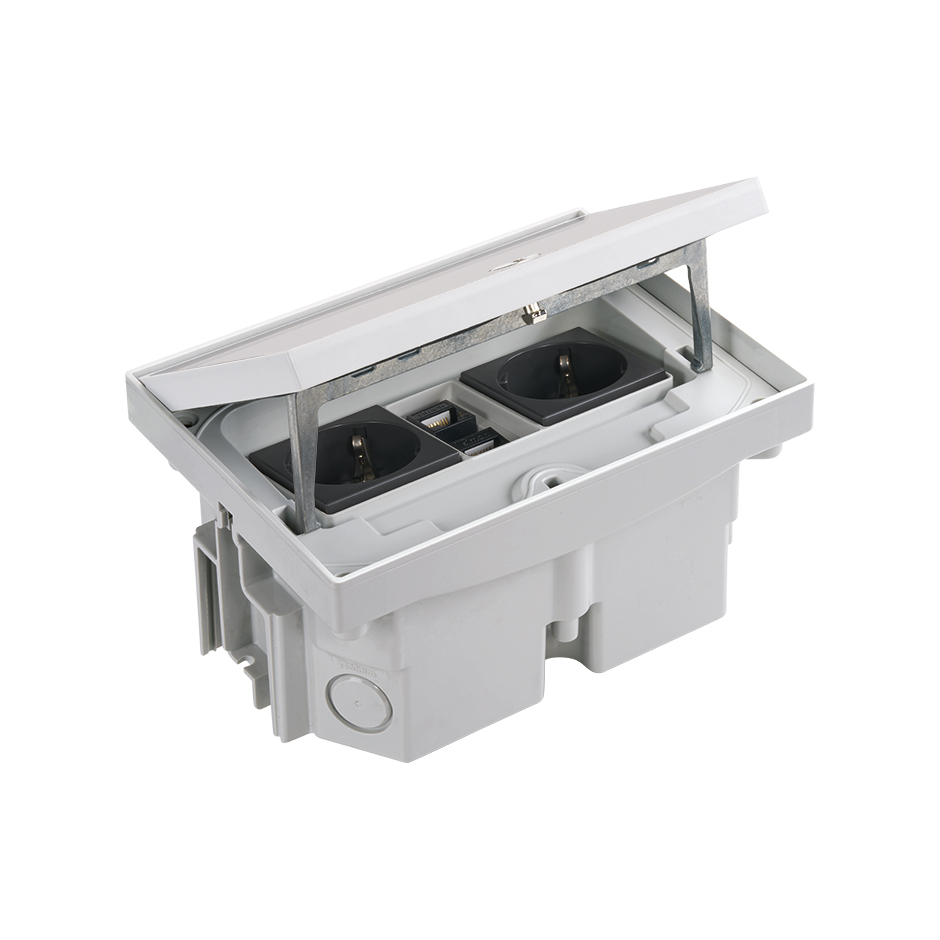

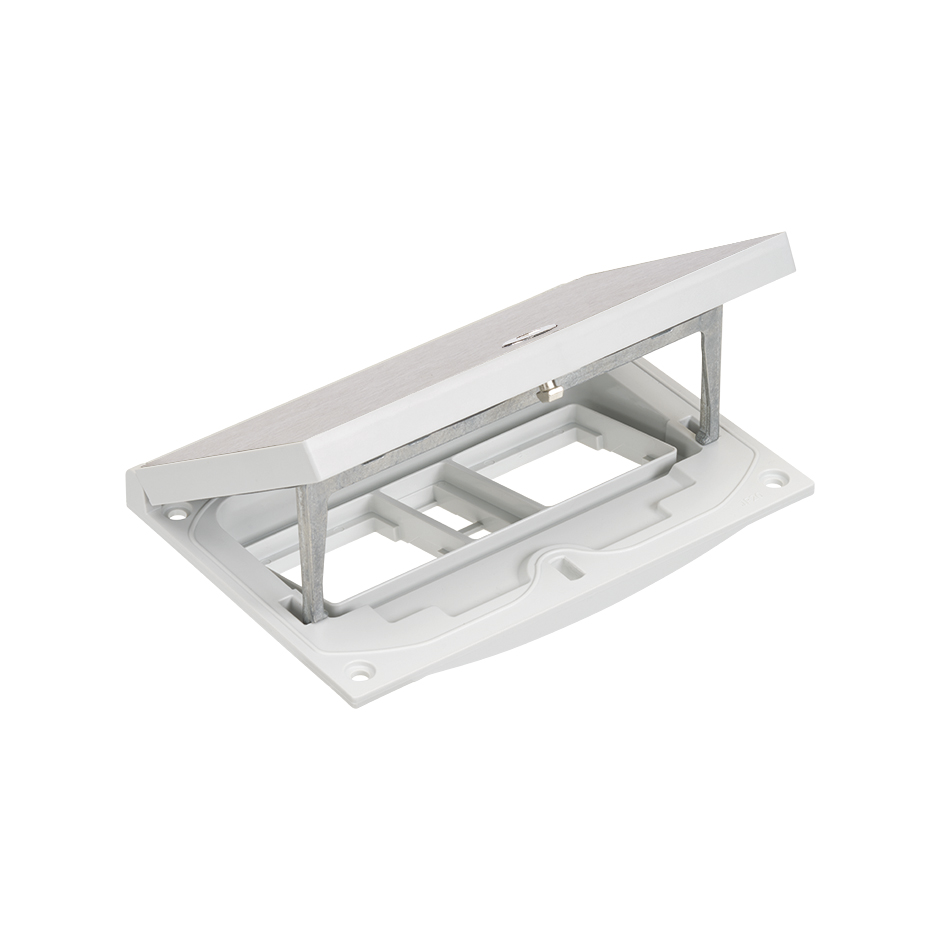

IP66 Mechanism holder and security frame for 2 K45 mechanisms and 2 RJ45 Keystone lodge

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. It is a mechanism support frame with a security lock for areas that require restricted access, capable of accommodating 2 K45 functions of 45x45mm and 2 RJ45 Keystone connectors. In combination with its tray, it will allow installation in technical flooring or pavement. The product design, combined with its stainless steel manufacturing, achieves a robust, solid, and secure installation as it withstands a water jet of 1 kg/cm² from any direction, reaching an IP66 protection rating when the lid is closed. It also supports a maximum load of 2000 kg and has an IK08 impact resistance. It maintains an optimal bending radius for cabling in high-category voice and data connections. Our accessory for plug connection with the lid closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility to level our box in case of uneven flooring (see reference KFA1003), or the ability to link more than one box (see reference KFA1002).
