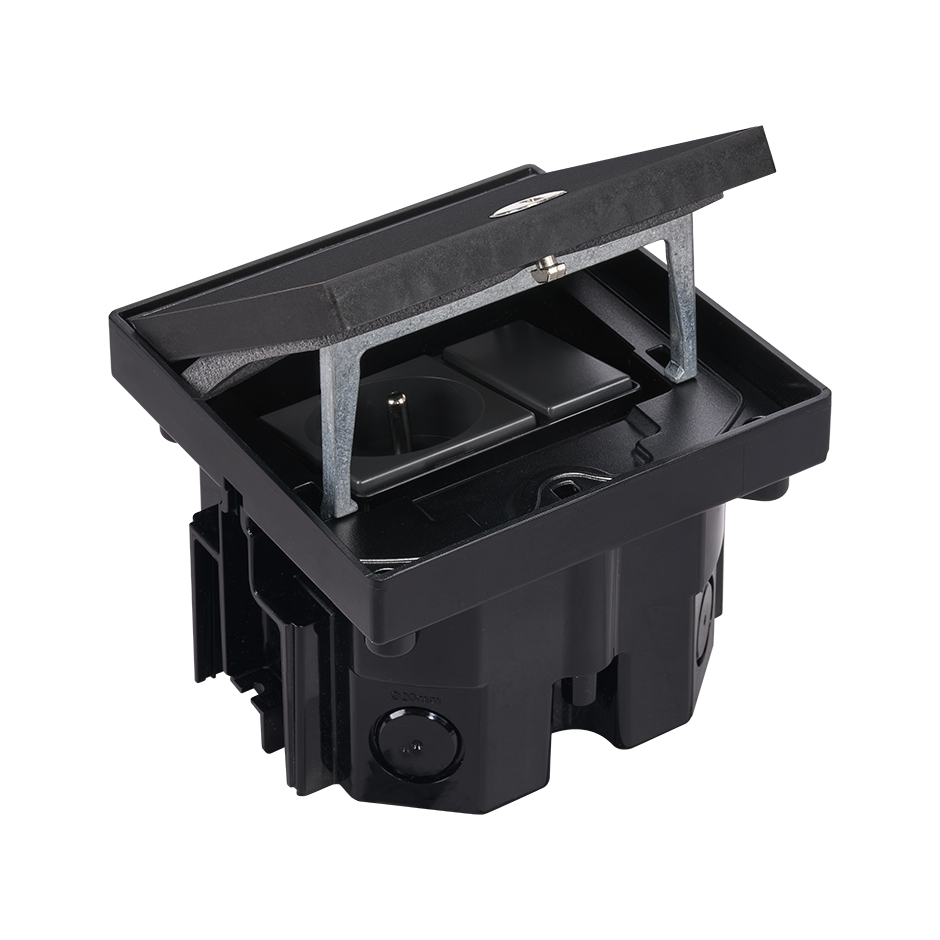

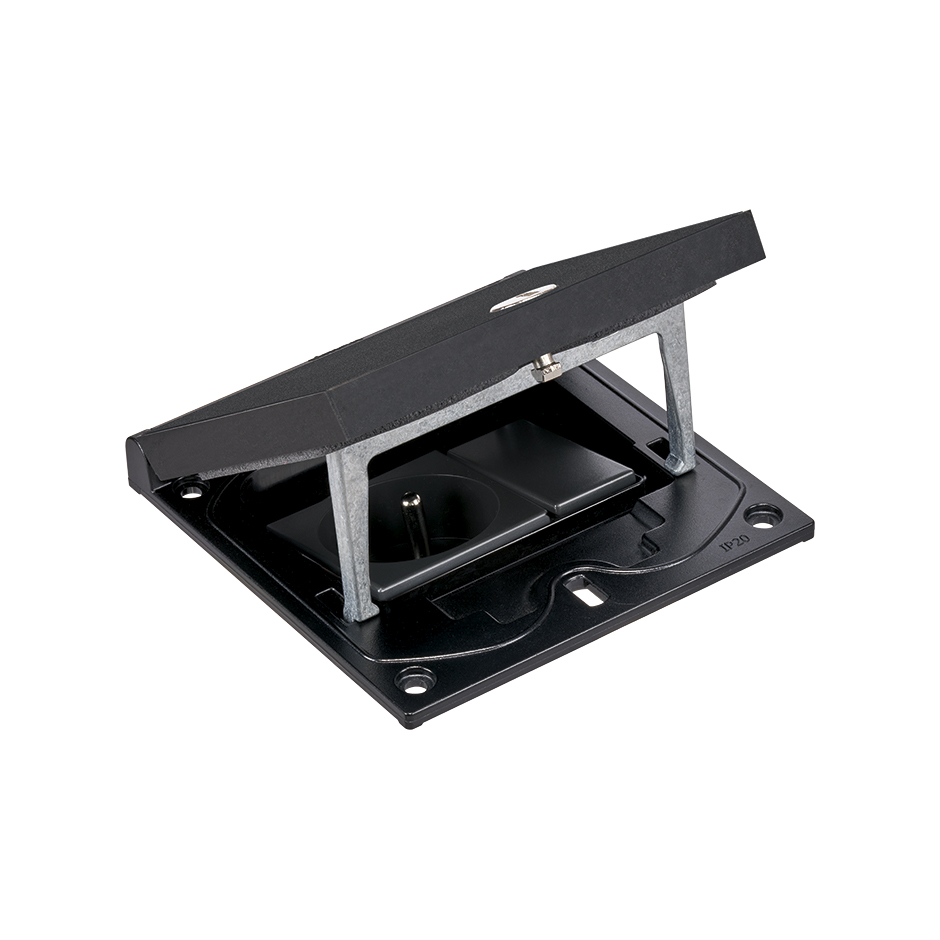

IP66 Mechanism holder and manual frame with french socket and 22,5x45mm K45 mechanism

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a manual closing mechanisms frame with a French electrical base and capacity for K45 function of 22.5x45mm. In combination with its tub, it will allow installation in raised floors or pavements. The product design, combined with its manufacturing from stainless steel, ensures a robust, solid, and secure installation as it withstands a water jet of 1 kg/cm² from any direction, achieving an IP66 protection rating when the lid is closed. It also supports a maximum load of 1500 kg and an IK08 impact resistance. It maintains an optimal bending radius of the wiring in high-category voice and data connections. Our accessory for plug connection with the lid closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility of leveling our box in case of having an irregular floor slab (see reference KFA1003), or the ability to concatenate more than one box (see reference KFA1002).
