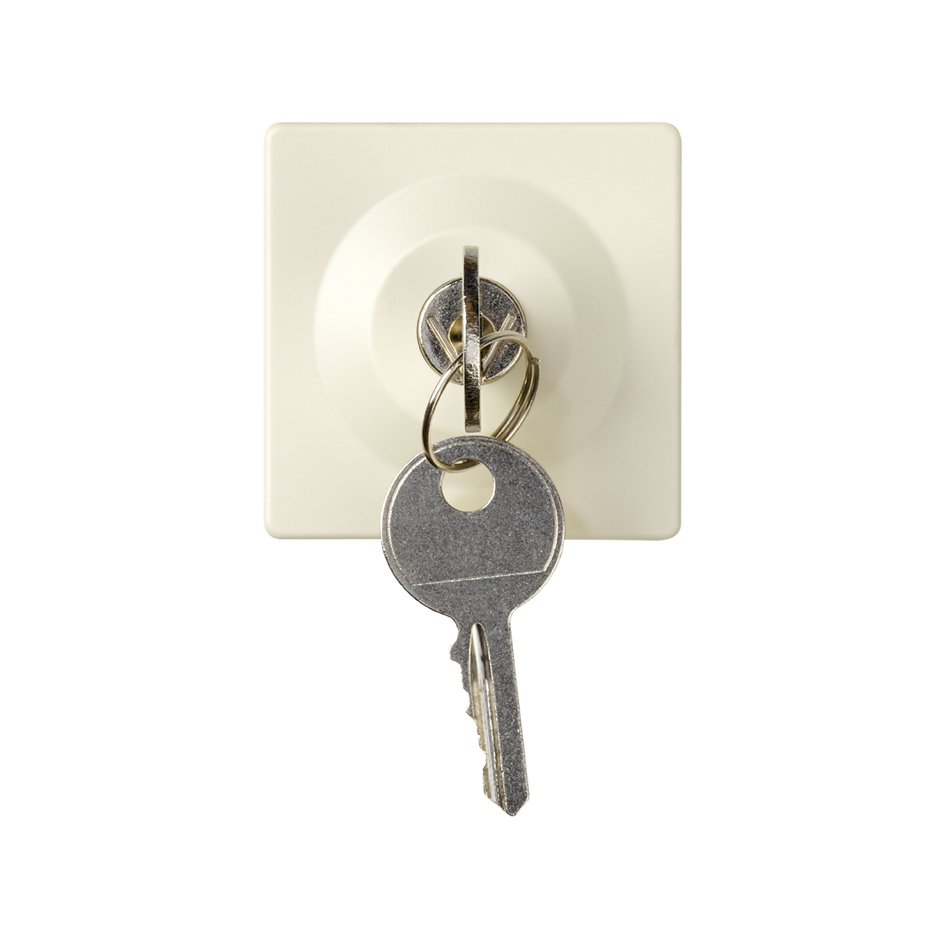

2-way switch with key 2.5A 250V~ with 2 positions (key removable in both positions) and welding terminal connection ivory Simon 27 Play

2-way switch with key 2 positions 2.5A 250V~ Simon 27 Play ivory front view

2-way switch with key 2.5A 250V~ with 2 positions (key removable in both positions) and welding terminal connection ivory Simon 27 Play

REF.
27521-62
RRP/unit
Upon request
PACKAGING:
1 Unit

Series

Simon 27 Play

Compatible series

Simon 27Simon 27 CentralizacionesSimon 27 NeosSimon 27 ScudoSimon AquaSimon 27 Play

Finishes

Selected: Ivory

Information

Documentation

Product information

2-way switch with key 2 positions (removable in both positions) and welding enbornamiento of type of the Simon 27 Play series. This 2-way switch has a current of 2.5 A and a voltage of 250V and is suitable both for surface and flush mounting. It is a 2-way switch is compatible with the frames of the ranges of Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralizations and Simon 44 Aqua. Supports a cable section with a 0.5 m and stripping of 7 mm and can be installed in places with a temperature located between 5 and 40ºC, although it supports extreme temperatures of between -25 to 50ºC. For its manufacturing has been followed by the standard EN 61058-1: 2002 + A2: 2008 + EN 50581: 2012 and is made of metal components with halogen-free insulation and thermoplastic trim. It measures 45x45mm and to clean it will only need a soft, dry cloth and never use abrasive cleaners containing chlorine.
