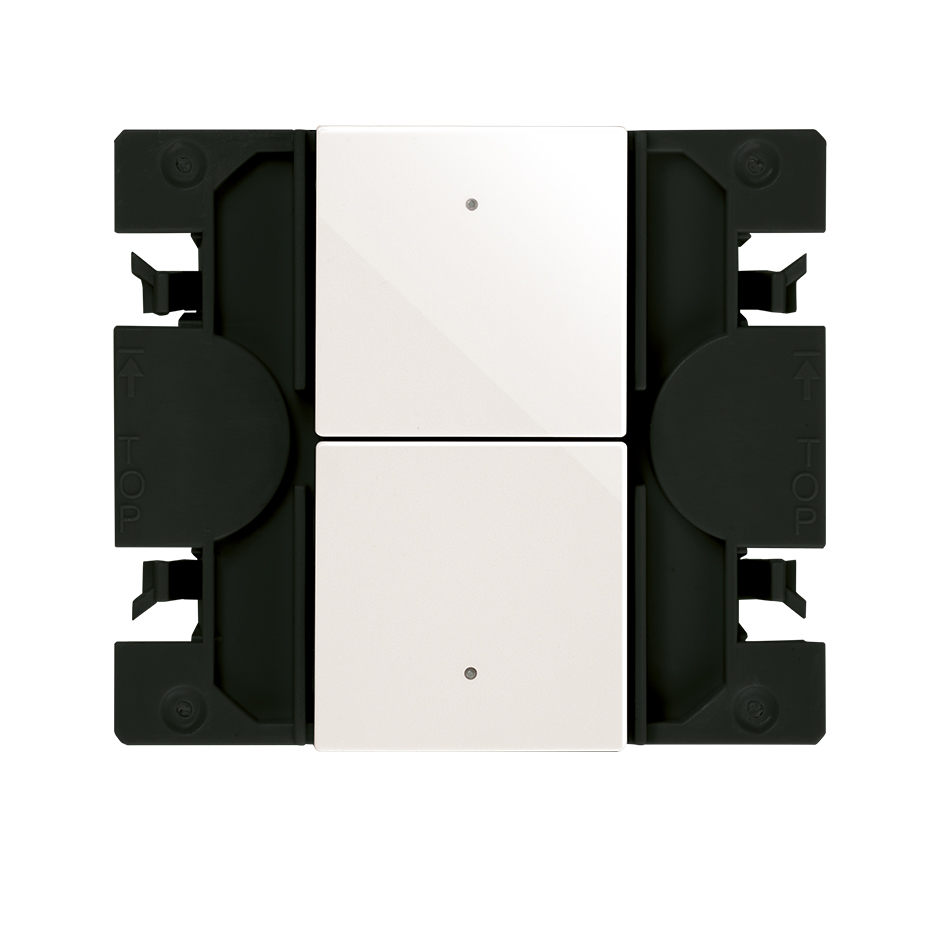

Simon iO master push-button panel, 2 functions for creating experiences white Simon 270
- REF.
- 21021035-090
- RRP/unit
- 94.39 EUR
- PACKAGING:
- 1 Unit
Series
Simon 270Compatible series
Simon 270
Finishes
Selected: Gloss white
Information
Documentation
Product information
Simon iO master push-button panel from the Simon 270 series, with two functions for creating lighting and control experiences. Push-button mechanism with indicator light and narrow rocker, compatible with Simon 270 minimalist-design frames. Made of thermoplastic, it measures 45 x 45 mm.
It communicates via Wi-Fi for remote control and integration into the Simon iO ecosystem. Rated voltage 230 V~ at 50-60 Hz. Screw terminals for cable cross-sections from 1.5 to 2.5 mm, with 7 mm of stripped cable. Suitable for flush mounting in a universal back box, in a vertical or horizontal position. Protection rating IP20. Operating temperature range: 5 to 45 °C. Storage temperature range: -25 to 75 °C. Clean with a soft cloth lightly dampened with soapy water, avoiding abrasive or chlorine-based cleaners.
Up to 9 available finish colours: 090 Glossy White; 190 Matte White; 091 Copper; 093 Aluminium; 094 Champagne; 095 Gold; 096 Titanium; 097 Bronze; 098 Matte Black.
SIMON iO 2-FUNCTION MASTER KEYPAD: Two-button keypad that launches two different Experiences with a single press, controlling the lighting, blinds and sockets of the room in one gesture.
SIMON iO CONNECTIVITY: Communicates with the cloud through the home Wi-Fi and is operated indistinctly from the button itself, from the Simon iO app or by voice with Amazon Alexa and Hey Google.
NO BUILDING WORK: Upgrades the installation using the existing wiring in the wall, with no building work and no need to rewire the circuit. EXPANDABLE WITH THE SIMON iO HUB: The desktop HUB completes the Experiences and adds time scheduling, sensors and remote control from outside the home.
SIMON 270 INTEGRATION: Flush mounting in a universal box with screw terminals, fitting the frames and support frames of the range in all its finishes. Compliant with Dir. 2014/53/EU RED, Dir. 2011/65/EU RoHS and standards EN 50428 and EN IEC 63000:2018.
NO BUILDING WORK: Upgrades the installation using the existing wiring in the wall, with no building work and no need to rewire the circuit. EXPANDABLE WITH THE SIMON iO HUB: The desktop HUB completes the Experiences and adds time scheduling, sensors and remote control from outside the home.
SIMON 270 INTEGRATION: Flush mounting in a universal box with screw terminals, fitting the frames and support frames of the range in all its finishes. Compliant with Dir. 2014/53/EU RED, Dir. 2011/65/EU RoHS and standards EN 50428 and EN IEC 63000:2018.
