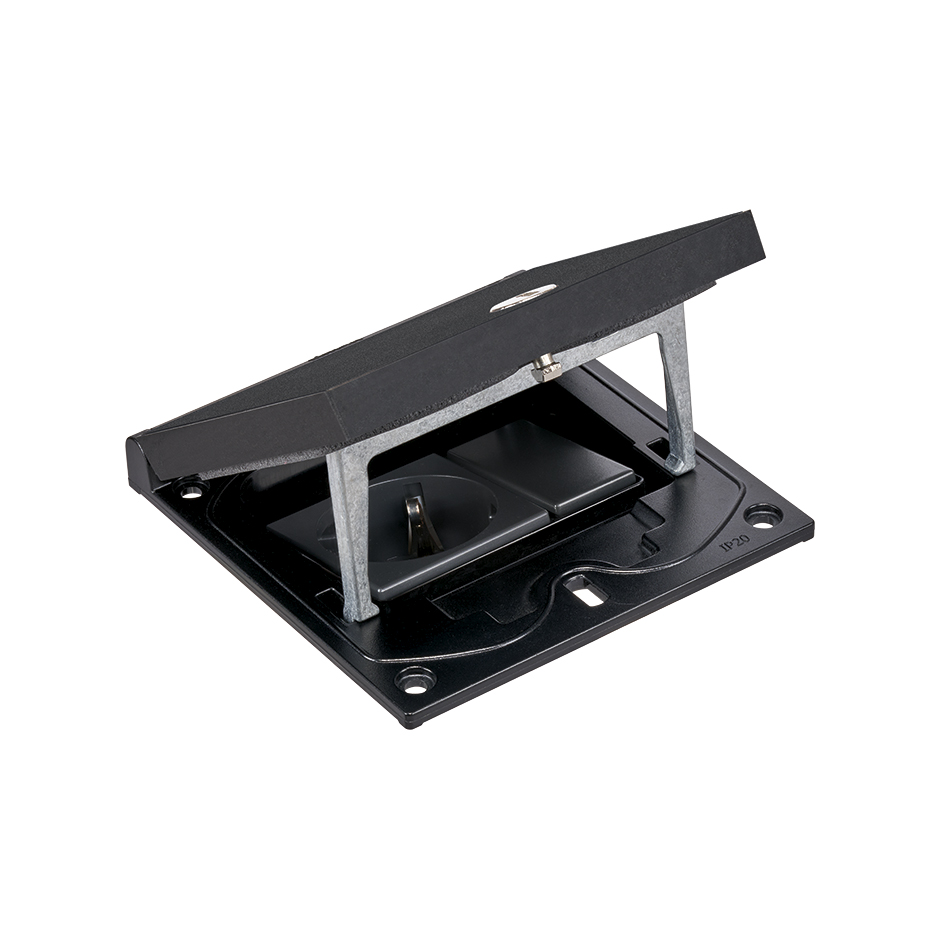

IP66 Mechanism holder and manual frame with schuko and 22,5x45mm K45 mechanism

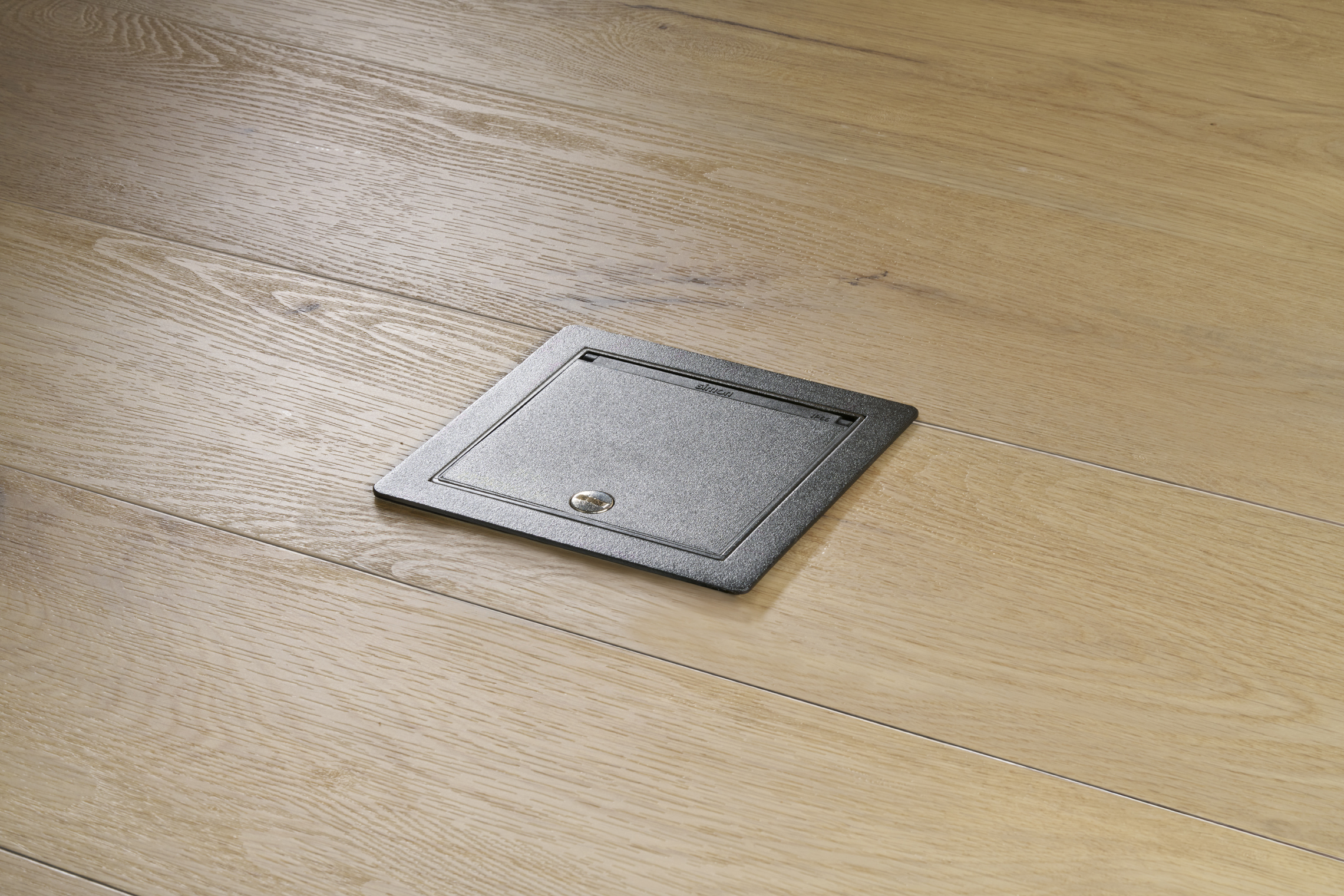

Simon completely renews its range of waterproof floor boxes for indoor and outdoor environments. This is a manual closing frame for Schuko sockets with a capacity for K45 function of 22.5x45mm. In combination with its base, it allows installation in technical flooring or pavement. The product design, combined with its stainless steel construction, ensures a robust, solid, and safe installation as it can withstand a water jet of 1 kg/cm² from any direction, achieving a degree of protection IP66 when the lid is closed. It also supports a maximum load of 1500 kg and has an IK08 impact resistance. It maintains an optimal curvature radius of wiring in high-category voice and data connections. Our accessory for connecting a plug with the lid closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility to level our box in case of an uneven flooring (see reference KFA1003), or the capability to chain more than one box (see reference KFA1002).
