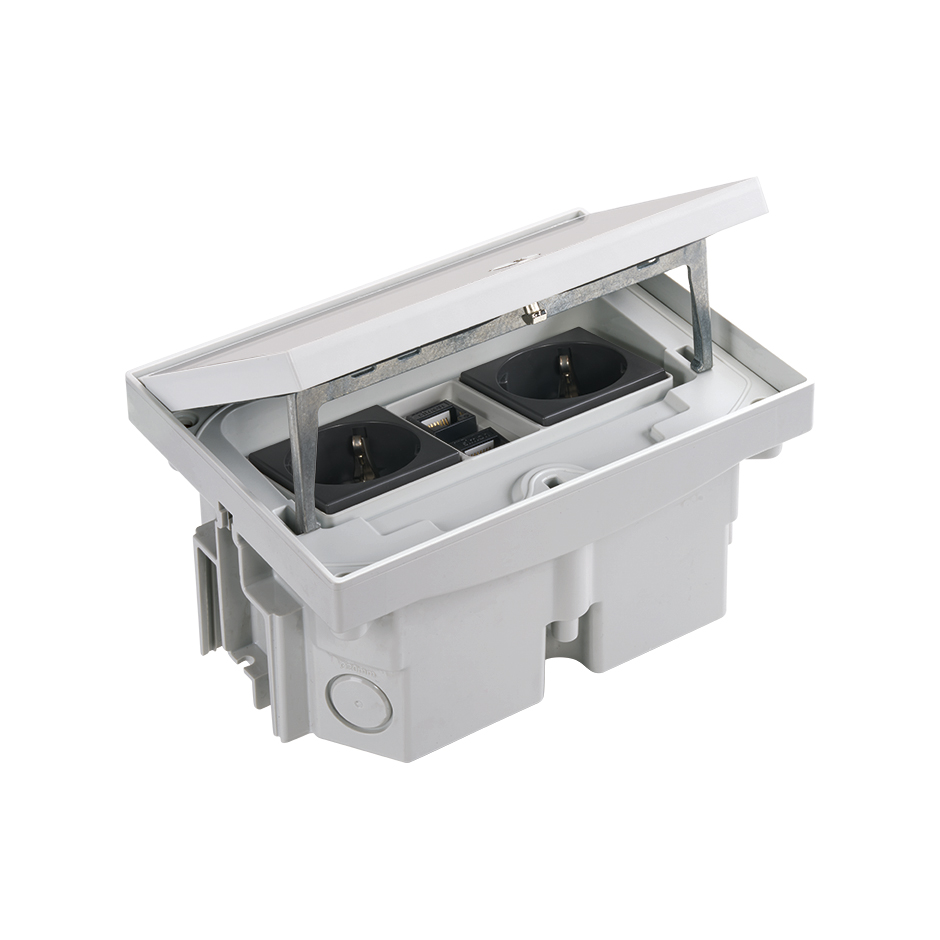

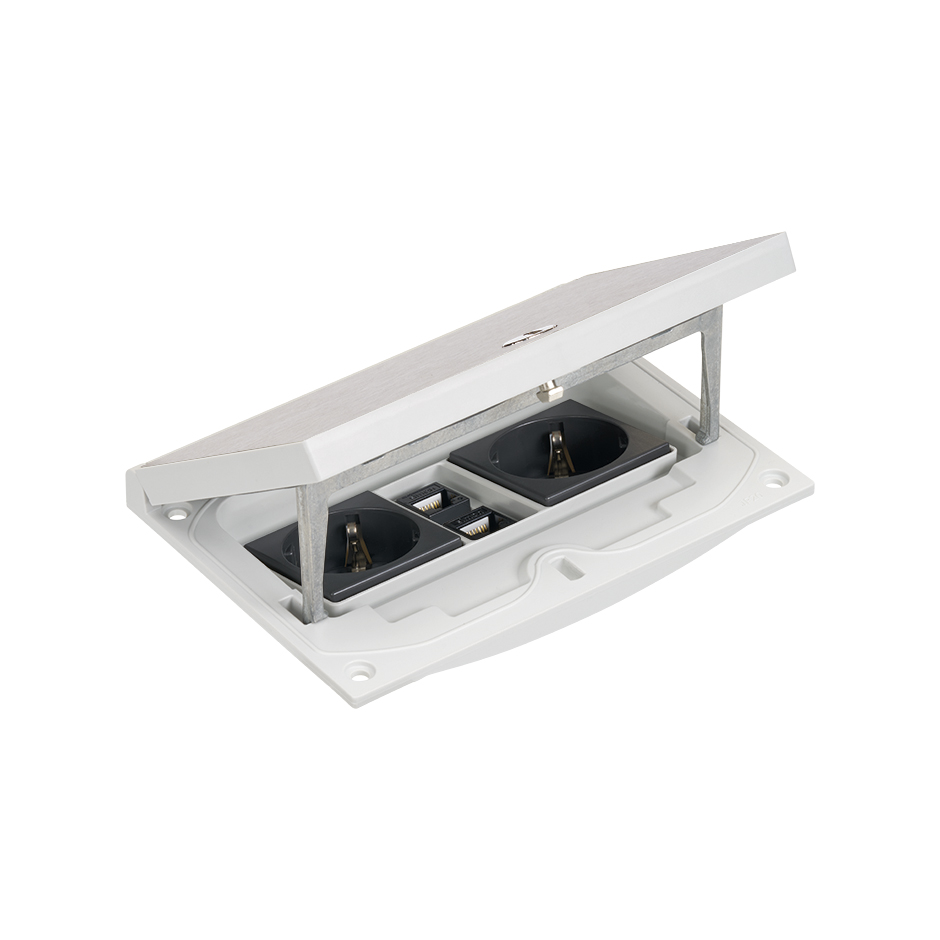

IP66 Mechanism holder and manual frame with 2 schuko and 2 RJ45 6 UTP

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a manual closure mechanism frame with 2 schuko sockets and 2 RJ45 category 6 UTP connectors. In combination with its base, it allows for installation in raised floors or pavements. The product design, coupled with its stainless steel manufacturing, ensures a robust, solid, and secure installation as it withstands a water jet of 1 kg/cm² from any direction, achieving a protection rating of IP66 when the lid is closed. It also supports a maximum load of 2000 kg and has an IK08 impact resistance. It maintains an optimal bending radius for high-category voice and data connections. Our accessory for connecting devices with the lid closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the ability to level our box in case of an uneven substrate (see reference KFA1003), or the capacity to link multiple boxes (see reference KFA1002).
