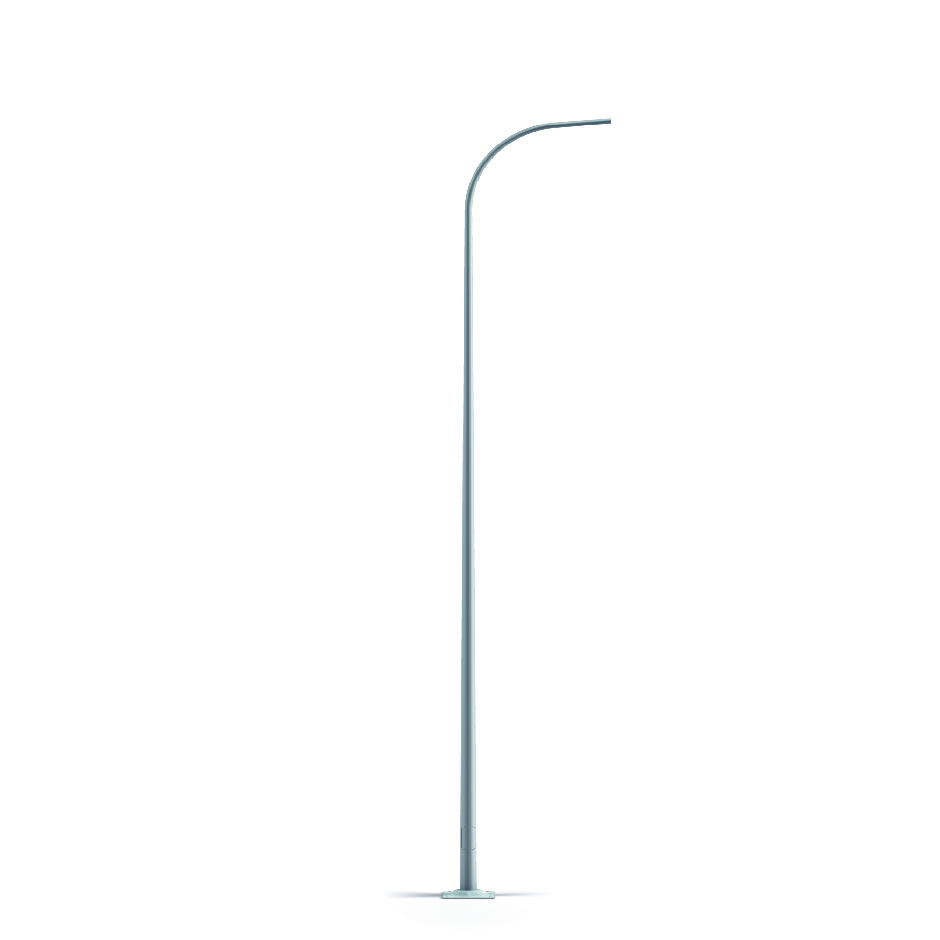

Simon BEU functional curved pole, 9 m high, conical tapering and post top luminaire fixing, front view

Simon BEU functional curved pole, 9 m high, conical tapering and post top luminaire fixing, front view

Ref
BEU09153

Simon BEU functional curved pole, 9 m high, conical tapering and post top luminaire fixing

Price/Unit
Price on request

Available downloads

Data sheet

BEU09153.pdf

Ask for advice
Outstanding Features
Series
Simon BEU
Series Compatibility

Simon BEU

Product Information
Support
Basic information

  • Finish Shaft

    Galvanized

  • Material Shaft

    Carbon steel sheet, S235JR quality

Technical information

  • Thickness

    3

  • Curvature Distance

    1500

  • Distance between bolts (A)

    285

  • Distance of the base-register door (z)

    550

  • Inclination

    1500

  • Register Door Height

    300

  • Total Height (H)

    9000

  • Width of the base

    400

  • IP Rating

    IP3X / IP44

  • Luminaire fixation

    post top

  • Registration Gate

    Flush with interior reinforcement

  • Seat Plate

    Flat steel sheet, S235JR quality

  • Forefront Diameter (d)

    60

  • Meter lenght (MxL) (m)

    M22x600

Regulation

  • Regulations

    EN 40-5
