Ref
82054-30

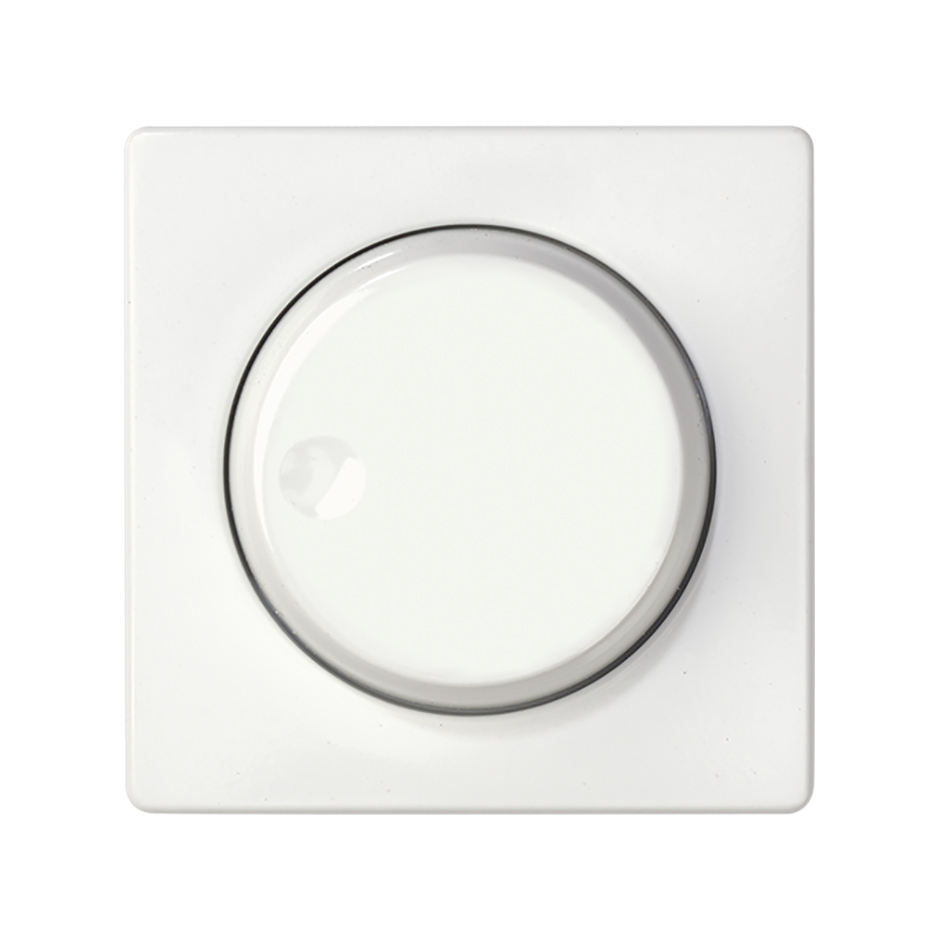

Plate for electronic rotary mechanisms white Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
82054-30-datasheet-en.pdf
Product declaration

  1. UES0021.pdf [678KB]

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82 Detail

Simon 82 Nature

Simon 82

<p class=>2-way dimmer switch 40 to 500W/VA front view</p>
Ref
75319-39
2-way rotary dimmer switch 40 to 500W/VA
<p class=>2-way dimmer switch 1-10V front view</p>
Ref
75317-39
2-way-rotary dimmer switch 1-10V for fluorescent lamps with maximum load of 3A
<p class=>2-way electronic rotary dimmer switch 450 W front view</p>
Ref
7501313-039
2-way electronic rotary dimmer switch 450 W
<p class=>Dimmer switch 40 to 300 W/VA front view</p>
Ref
75311-39
Rotary dimmer switch 40 to 300W/VA
<p class=></p>
Ref
7502313-039
230V Phase Cut Regulator 2 Wires for LED Simon 75
Product Information
Downloads
Support

Provide the finishes ideal for its rotary electronic mechanisms with system thanks to the plate in white Simon 82. With a design of neutral lines and discreet, the plate for rotating mechanisms of this range to guarantee the optimum integration of the set in any space, at the same time that gives it a minimalist style, ideal for environments functional.

Suitable for installation in recessed or surface-mounted, it has a size of 55 x 55 mm, for a more effective adapting the product to the specific needs of each room. Also, it is available in 6 different finishes to select the most in accordance with the aesthetic features of the space.

To protect your room is a possible case of fire, the plate for rotary mechanisms of Simon 82, is made up of thermoplastic which allows you to set reach maximum temperatures of -25 and 50 ºC.

Basic information

  • Compatibility

    Simon 75 mechanisms

  • Remarks

    Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

  • Finish

    White

  • Material

    Plastic

  • Packaging contents

    Plate

Technical information

  • Market available

    CE

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    Single

  • Dimensions (mm)

    55 x 55

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-2-1:2004 + EN 60669-2-1:2004 A1:2009 + EN 60669-2-1:2004 A12:2010

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.03KGM

  • Product gross weight

    0.03KGM

  • Product EAN

    8421053258828

  • Packaging quantity

    5

  • Packaging height

    81MMT

  • Packaging width

    82MMT

  • Packaging length

    90MMT

  • Packaging volume

    597780MMQ

  • Packaging net weight

    0.15KGM

  • Packaging gross weight

    0.15KGM

  • Packaging EAN

    8421053049969
