Single rocker for switches graphite Simon 82

REFERENCE NO.: 82010-38

R.P.: Price on request

PACKAGING: 20Units

Variables de unidades de obras ---> -false-false

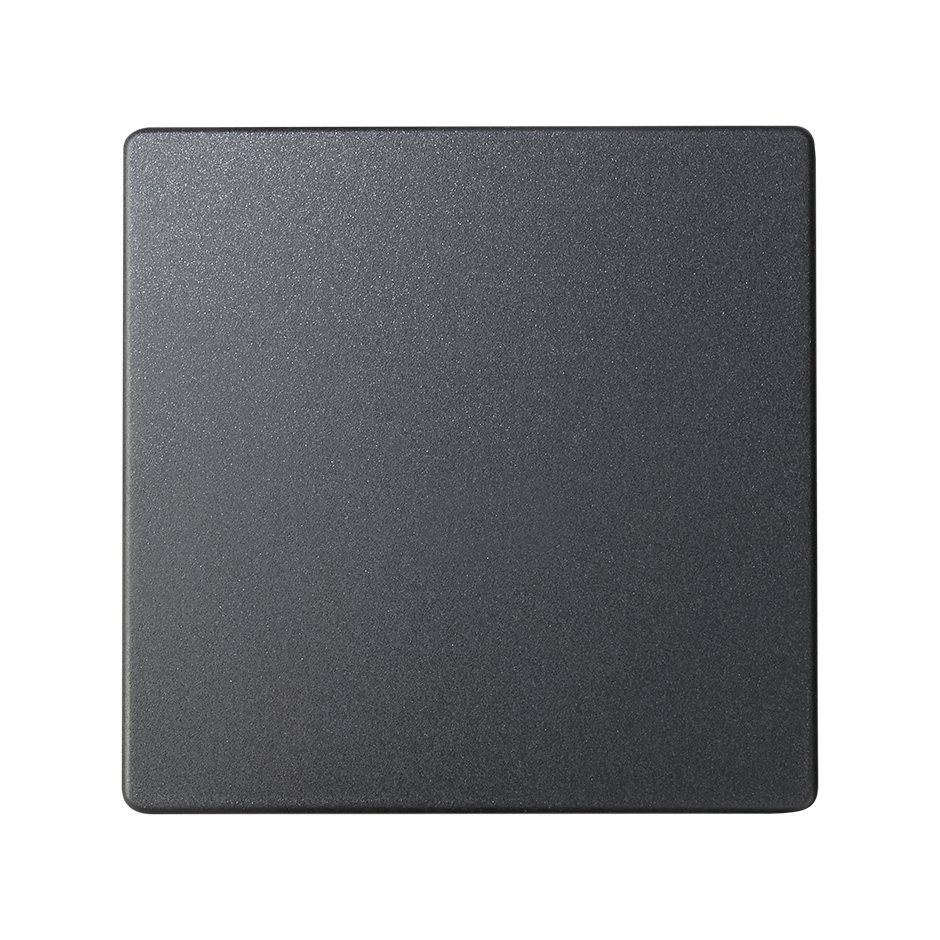

Rocker Simon 82 graphite front view


This image represents the combination of different references

Rocker graphite Simon 82 packaging


SERIES: Simon 82 FINISH: Graphite MATERIAL: Plastic DIMENSIONS: 55x55 mm COMPATIBLE SERIES: Simon 82 Detail Simon 82 Nature Simon 82 Switches

7500313-039

7500316-039

75101-39

75150-39

75152-39

75201-39

Product description

The individual rocker designed for the control mechanisms of the Simon 82 series is designed in a graphite tone to keep up with the latest trends in decoration. The 82 series combines balance and simplicity in all its parts, being able to find this piece available in six different finishes. For the assembly of this part, we can choose to recess or position, place on a surface-mounted. With measures of 55x55 and manufactured in thermoplastic materials according to the regulation regulations, it can withstand temperatures between and 40º, being able to reach a maximum of -25 to 50º. For a correct hygiene of this material, it will be enough to use a small cloth moistened in soapy water, avoiding in any case any product that contains chlorine, because its abrasive power could seriously damage the piece.

BASIC INFORMATION

Series: Simon 82

Version: Single

Finish: Graphite

Indicator function: No

Symbol: No

No. of possible elements: 1 element

Compatibility: Simon 75 and Simon 77 mechanisms

Installation direction: Vertical and horizontal

Packaging contents: Single rocker and fastening bracket

Remarks: Available in 6 finishes. It is recommended to choose a frame with a base the same colour as the selected rocker.

TECHNICAL INFORMATION

Dimensions: 55x55 mm

IP rating: 21

RAL: Does not have

Manufacturing material: Thermoplastic

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 20

Box measurement unit: MM

Height: 82.000

Wide: 165.000

Depth: 223.000

Box volume: 3017190.000

Box volume measurement unit: MMQ

Net weight of box: 0.440

Unit weight of box: KGM

EAN code: 8421053049624

Available in multiple box: Yes

Multiple box packaging quantity: 100

Multiple box measurement unit: MM

Multiple box packaging quantity measurement unit: ZCM

Height of multiple box: 223.000

Width of multiple box: 172.000

Depth of multiple box: 430.000

Multiple box volume: 16493080.000

Multiple box volume measurement unit: MMQ

Net weight of multiple box: 2.200

Unit weight of multiple box: KGM

Multiple box EAN code: 8421053055182

Available on pallet: No

aplicacion-marco-simon-82-detail-grafito-rojo-con-tecla-grafito-en-sala-estudio_3.jpg

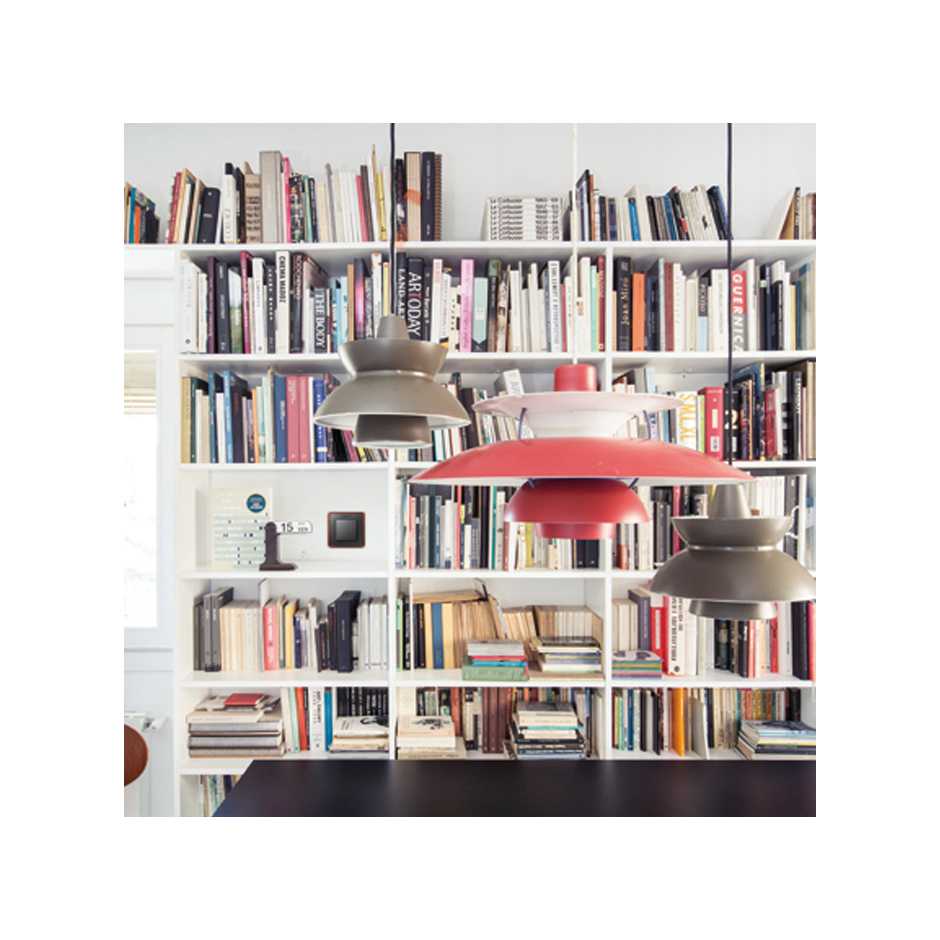

Rocker graphite application in study room

aplicacion-marco-simon-82-detail-grafito-rosa-fluor-con-tecla-grafito-en-cocina_3.jpg

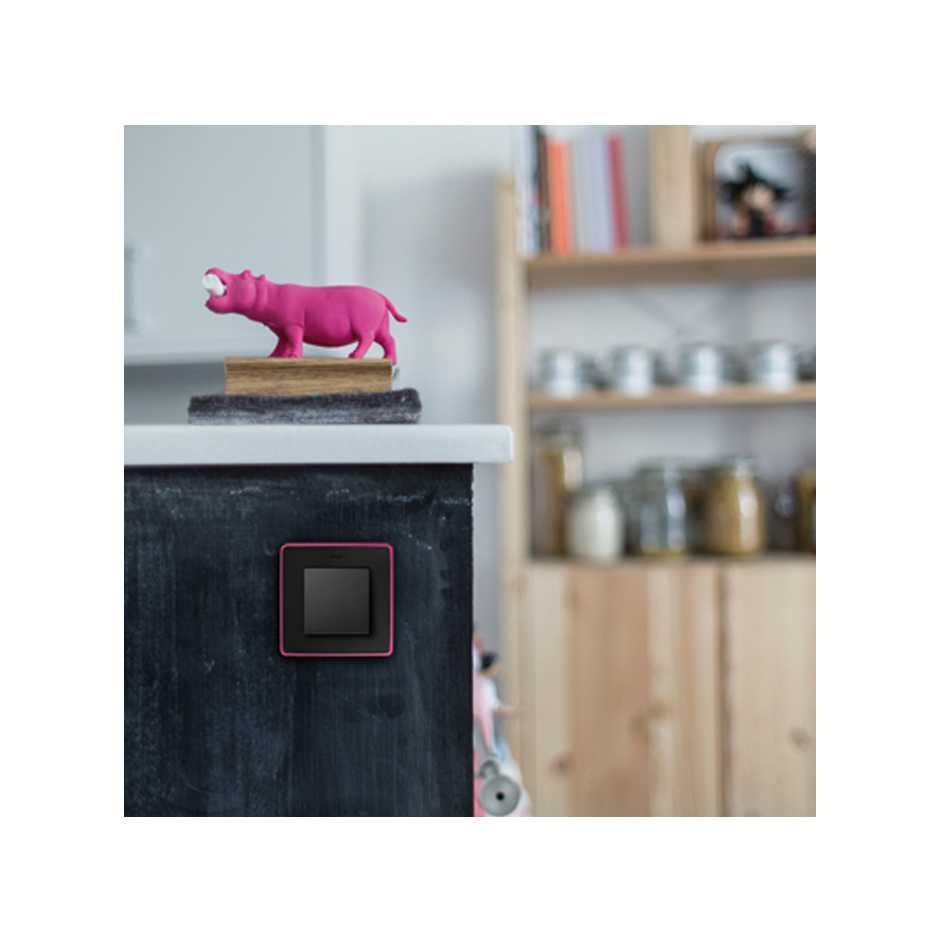

Rocker graphite application in kitchen

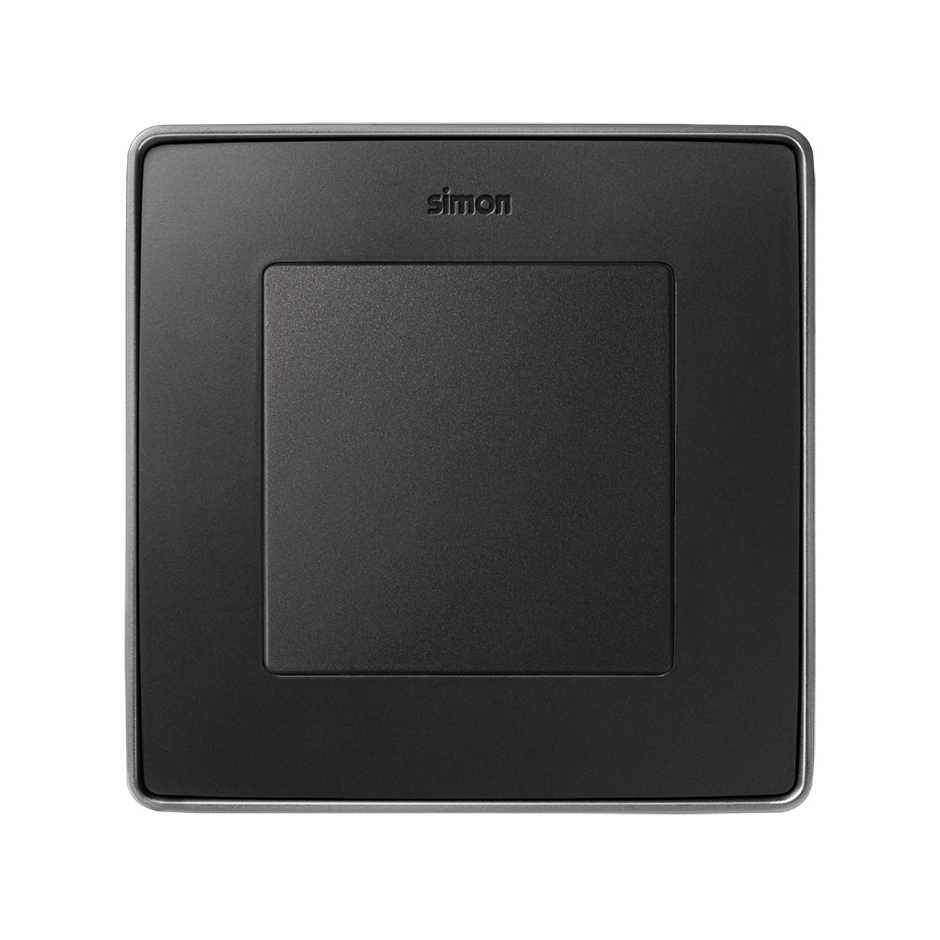

Rocker Simon 82 graphite front view
