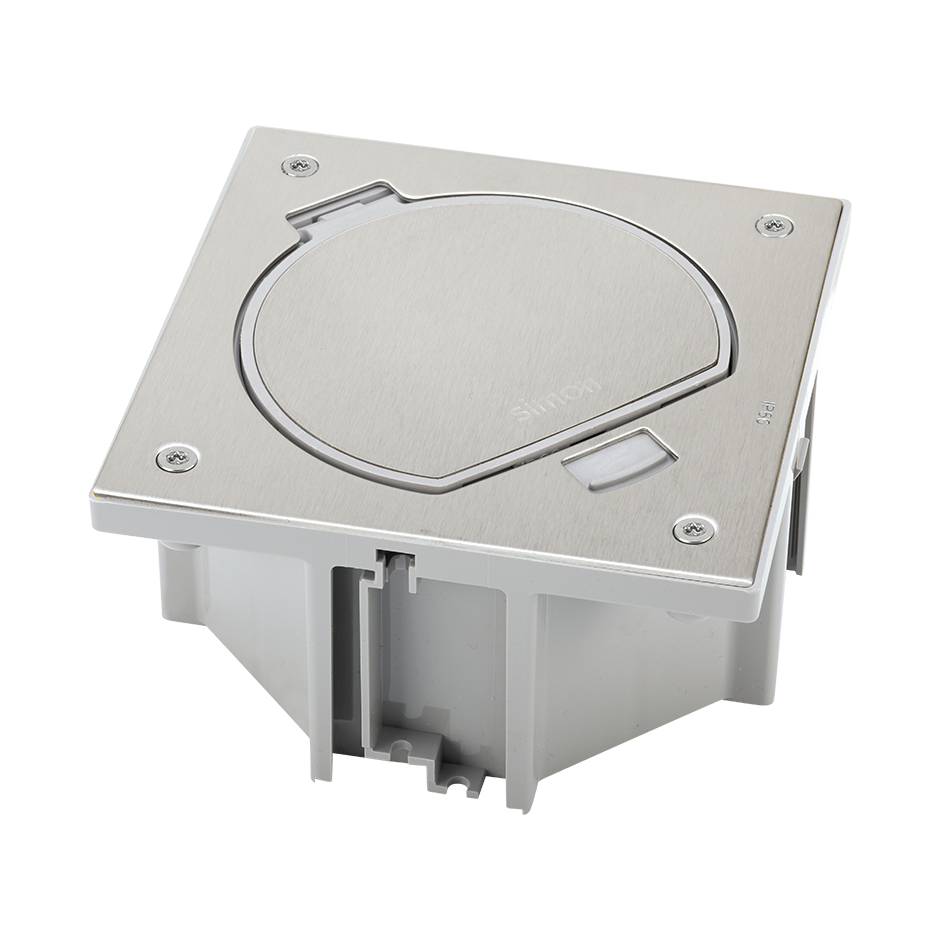

Mechanism-holder unit IP66 with manual lock and Italian socket P40 socket outlet stainless steel Simon K45

Unit mechanism-holders unit with manual closure and socket outlet Italian P40 socket in stainless steel of the series Simon K45. It measures 130 x 130 x 55 mm and has 2 modules. Its current is 16 A and its voltage is 250V. Its type of operation is by screw and its cover also has anchor points that protecting the connections during use against pressures and stresses due to the passage of personnel. Supports a wire from 1.5 to 2.5 mm and the stripping of the wire 12 mm and has been manufactured in baseboard ASI 304 stainless steel on self-extinguishing halogen-free thermoplastic material, which is a very safe as that guarantees no flame spread in case of fire and low toxicity in case of producing a fire or smoke, respectively. Can be integrated into any type of floor, be it a raised or a concrete floor, combining this unit with the tray in accordance with the type of installation. With the range update, its equivalent for the new version is the KFH110/72 reference.
