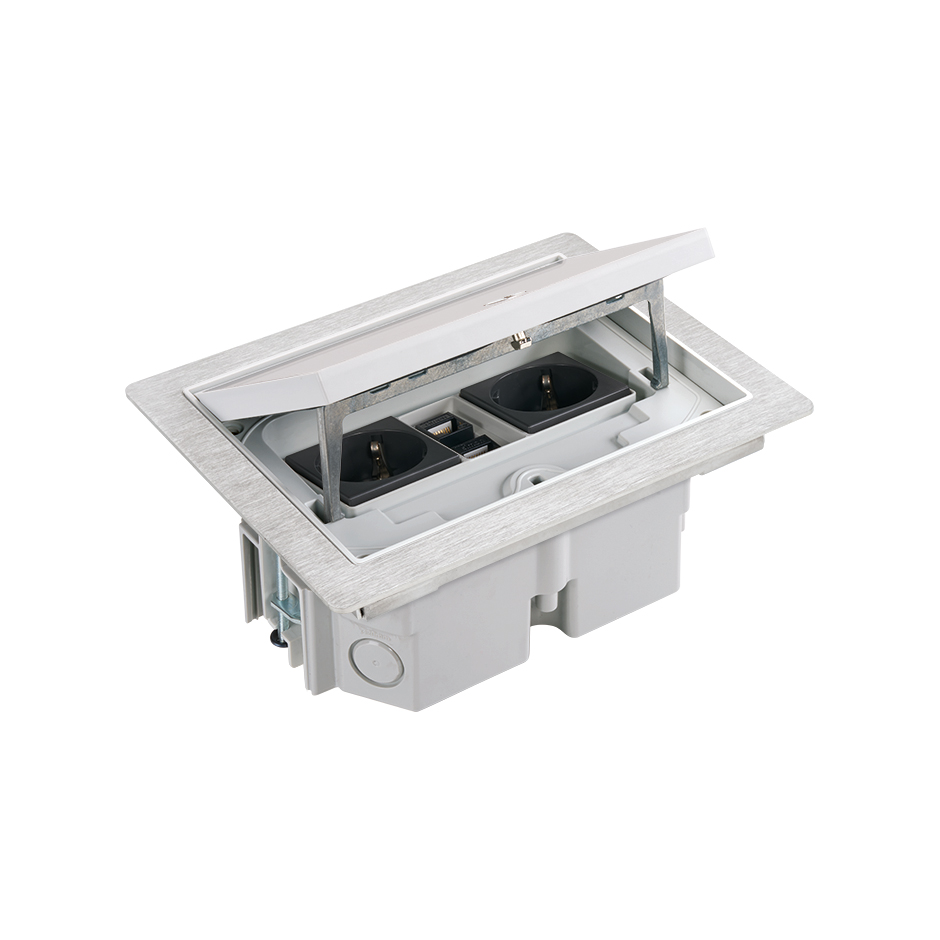

IP66 watertight raised floor box empty kit for 2 Simon K45 mechanisms + 1 narrow blind cover and sheath

Simon completely renews its range of waterproof floor boxes for indoor and outdoor environments. This is a kit that includes the manual closure mechanism frame with capacity for 2 K45 functions of 45x45mm and another of 22.5x45mm, to be integrated into the included tray for installation in a raised floor with cut dimensions of 174 x 125 mm. The product design, combined with its frame made of stainless steel, achieves a robust, solid, and secure installation as it withstands a water jet of 1 kg/cm² from any direction, reaching a protection level of IP66 when the cover is closed. It also supports a maximum load of 1500 kg and an impact resistance of IK08. It maintains an optimal cable bending radius for high-category voice and data connections. Our accessory for plug connection with the cover closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the ability to level our box in case of having an irregular slab (see reference KFA1003), or the capacity to chain more than one box (see reference KFA1002).
