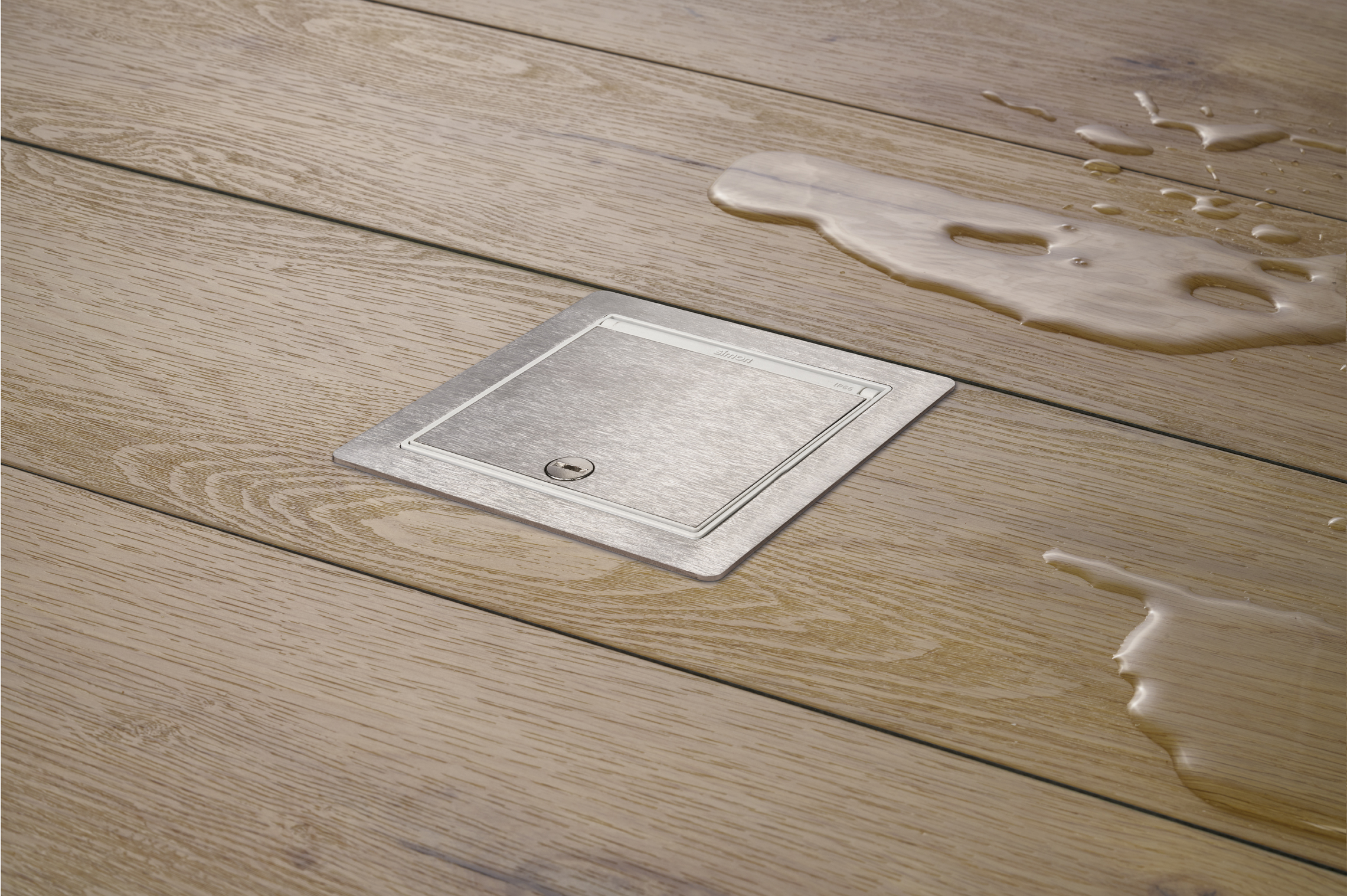

IP66 watertight raised floor box kit with 1 french socket outlet + 1 narrow blind cover and sheath

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a kit that includes the manual closing mechanism frame with 1 French base and 1 K45 blind plate of 22.5x45mm, to be integrated into the included tub for installation in technical flooring with cut dimensions of 125 x 125 mm. The product design, combined with its mechanism frame made of stainless steel, ensures a robust, solid, and secure installation as it can withstand a water jet of 1 kg/cm² from any direction, achieving an IP66 protection rating when the lid is closed. It also supports a maximum load of 1500 kg and has an IK08 impact resistance. It maintains an optimal bend radius for wiring in high-category voice and data connections. Our accessory for plug connection with the lid closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the ability to level our box in case of having an irregular substrate (see reference KFA1003), or the capacity to chain more than one box (see reference KFA1002).
