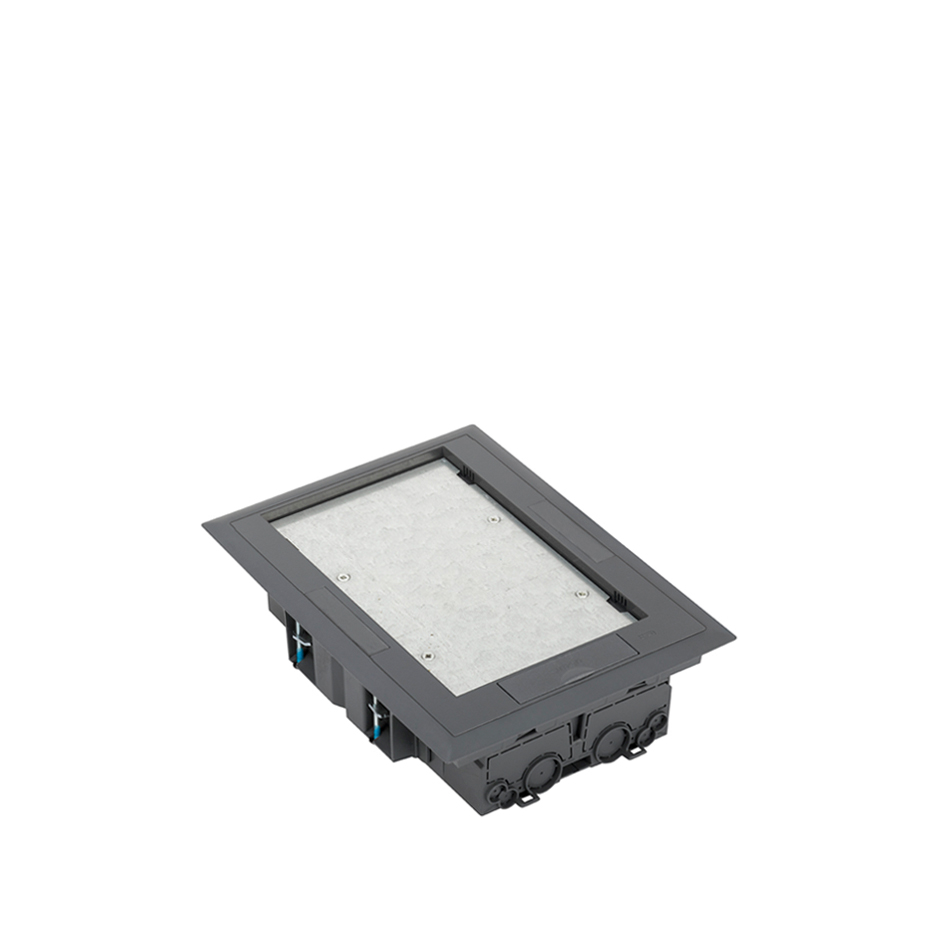

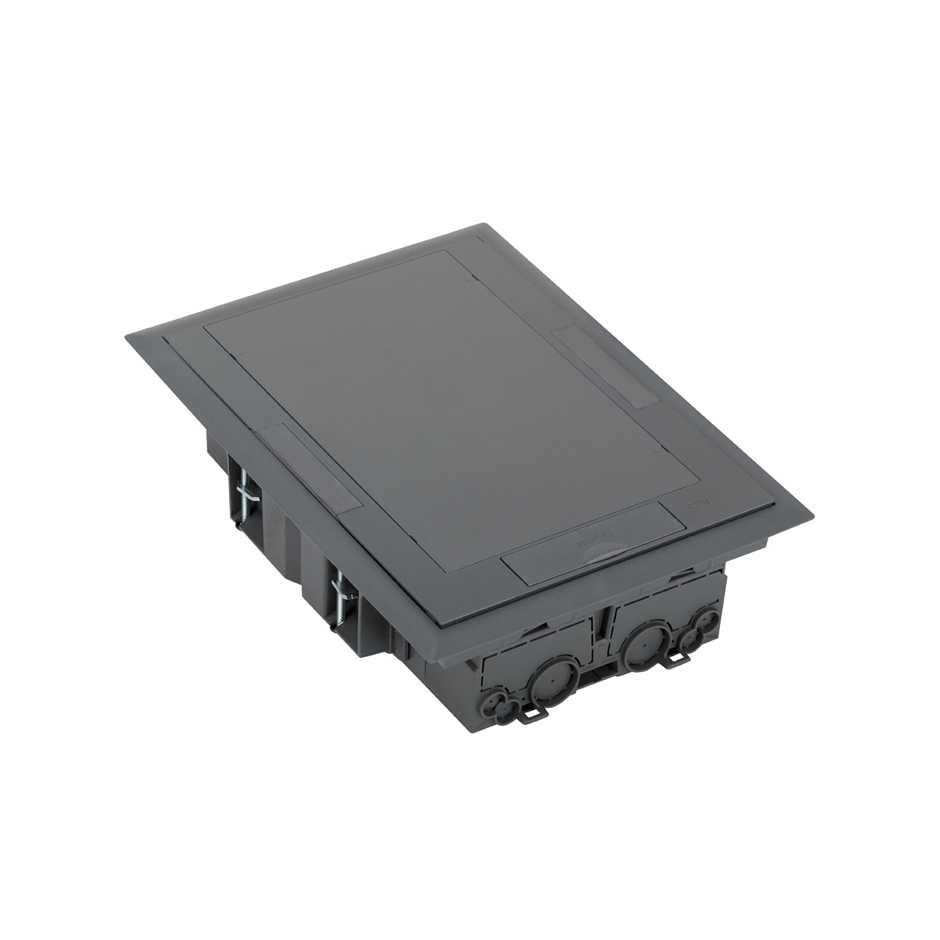

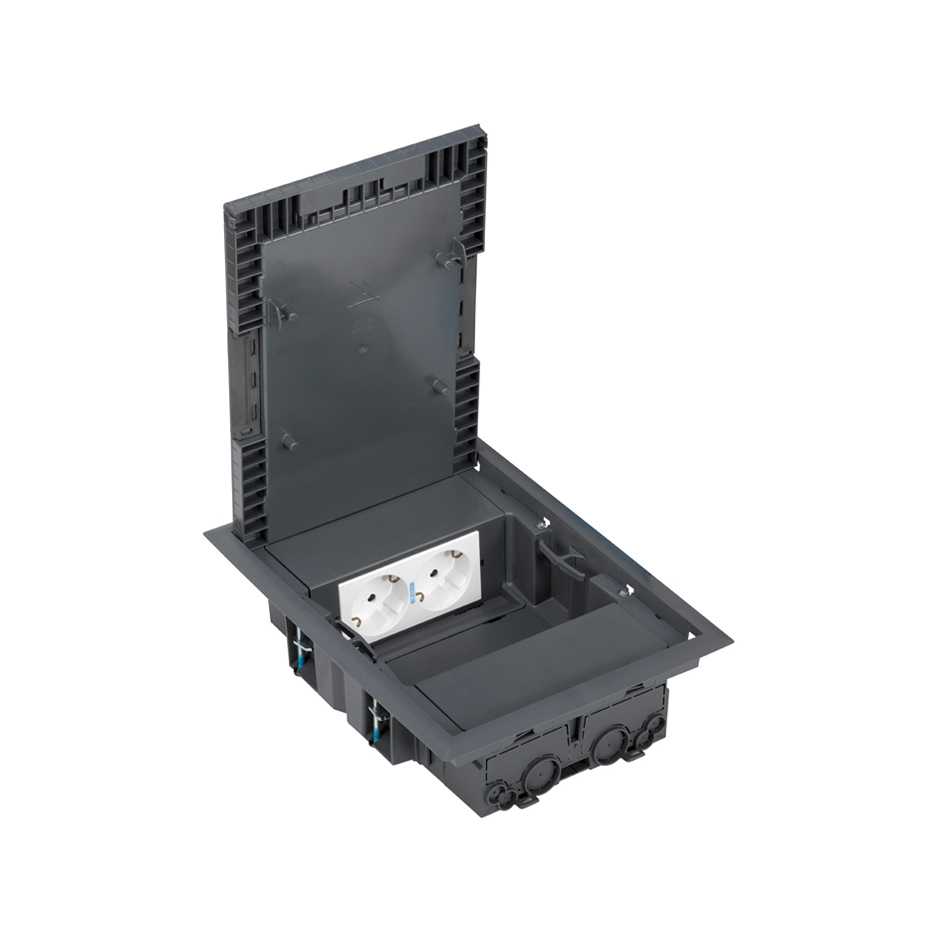

Shallow floor box kit raised/concrete floor 4 elements with 1 double socket and 2 plates, 1 RJ45 grey Simon 500 Cima

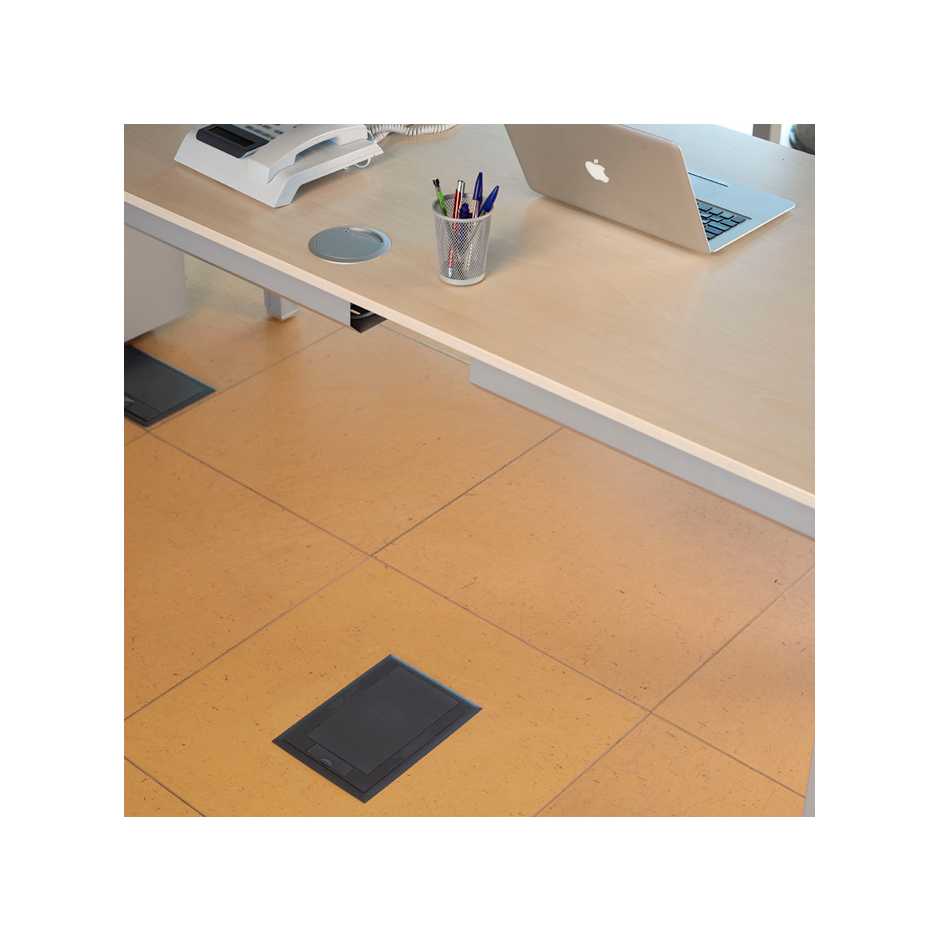

The kit of the series Simon 50 Cima grey in colour, brings together the elements necessary to create an electrical power supply for shallow floor box with capacity to supply power to 4 elements of up to 16 A and 250 volts. The installation is very simple and allows two options. On the one hand, if you directly on the concrete flooring via installation, it must be combined with a plastic tray (ref. G201) and optionally, if it is not installed in the same floor lining, you may use a trim cover to integrate the product completely with the room (ref. G201). On the other hand, another option of installation is by means of installation in raised floor, this time easier, as this type of floor is slightly high above the pavement socket precisely to make this type of installations. The floor box of the Simon 500 Cima range has dimensions of 252 x 180 x 69 millimetres and consists of a double socket and 2 RJ45 plates connectors model. The materials with which it is manufactured the product stand out for their durability and resistance, in addition to be equipped with a capacity of survive high temperatures. Its components of the best self-extinguishing thermoplastic allow the apparatus shall not propagate the spread in case of fire and reduce the toxicity of smoke caused by this, which without any doubts is a commitment to the security.
