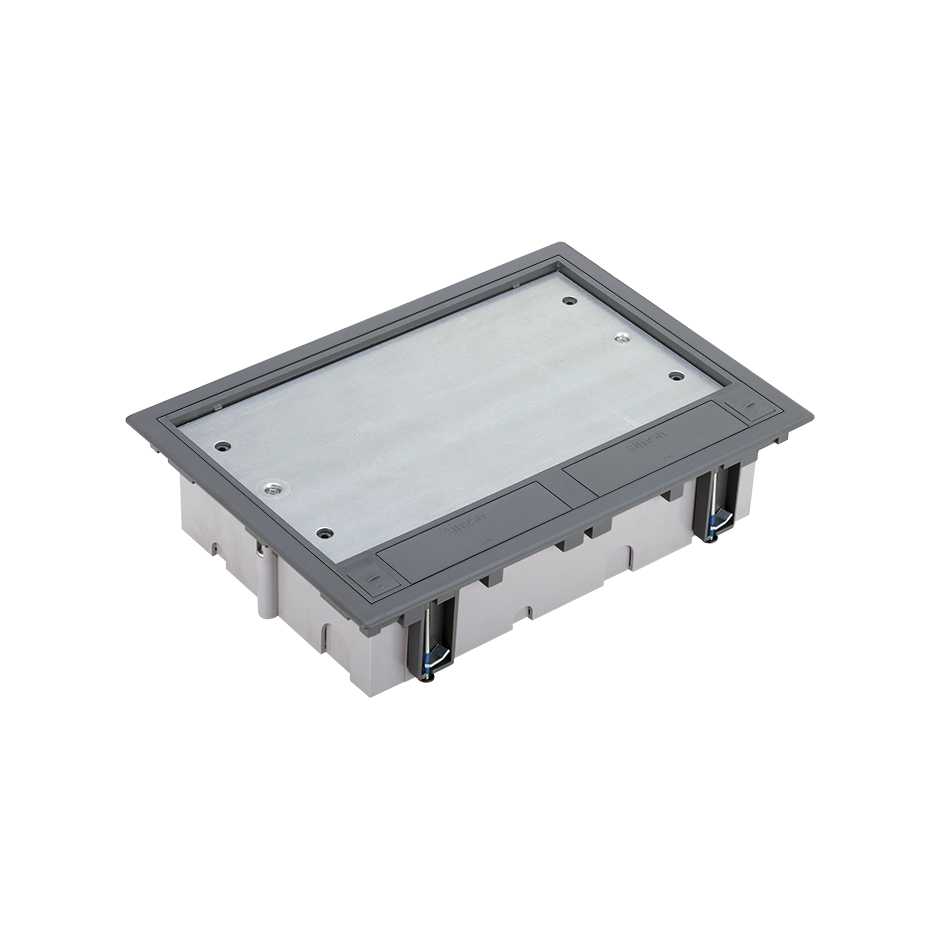

Oblique view of adjustable floor box with 12 elements for installation in Simon K45 grey concrete floor

Adjustable floor box with 12 elements for installation in Simon K45 grey concrete floor

REF.: KF1270/1
RRP/unit: Upon request
PACKAGING:: 1 Unit

Series

Simon Cima

Compatible series

Simon Cima

Finishes

Selected: Grey

Information

Documentation

Product information

This adjustable floor box is part of the Simon K45 range, and is specially designed to be installed recessed in a concrete floor, although it may also be used in a raised floor. The box is capable of providing power to a total of 12 elements. It is made of 12 empty elements and has dimensions of 225 x 310 millimetres, and is 76 millimetres deep. It comes in an attractive grey colour. To perform a complete installation, the product should be combined with a Simon plastic tray (Art. No. 52052106-035) once it is configured. In case the box is installed in a floor with a different finish, you also have the option to pair it with a flush-mount trim cover (Art. No. 52053106-035). The box is manufactured from high-quality materials, which consist of self-extinguishing and halogen-free thermoplastic insulation. This makes the product highly resistant and also considerably increases their safety, since they are capable of preventing flame propagation in case of fire and of reducing the toxicity of smoke.
