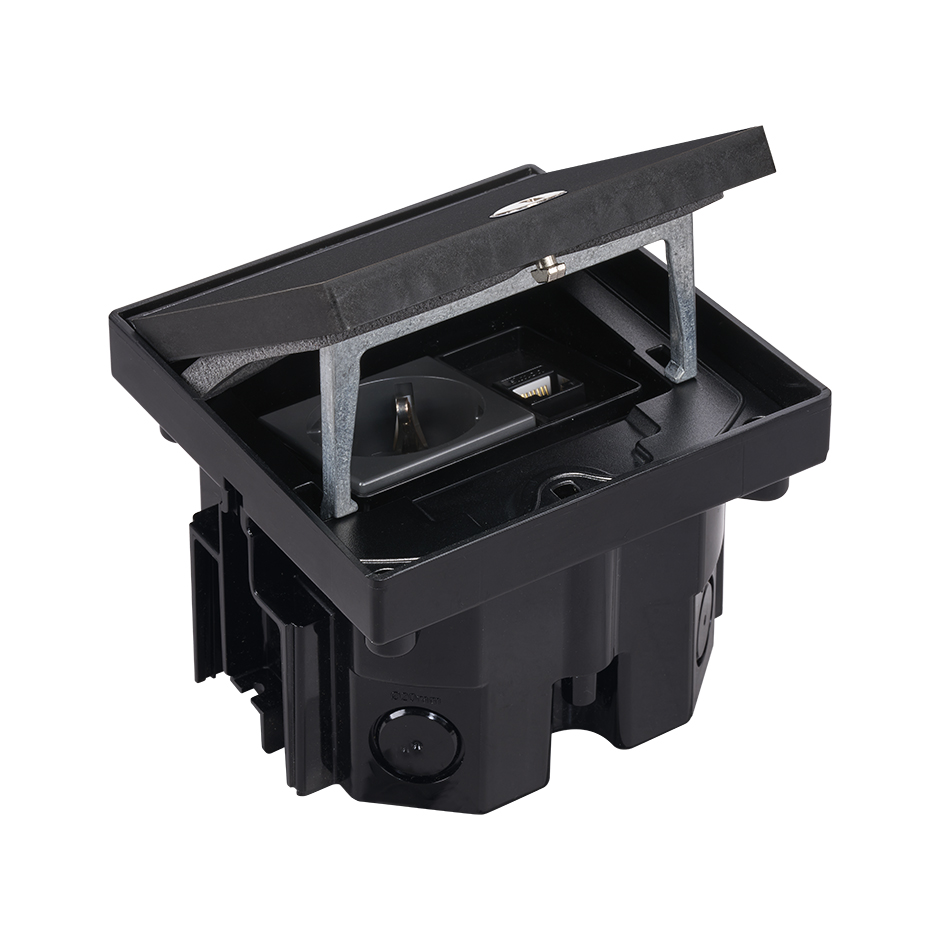

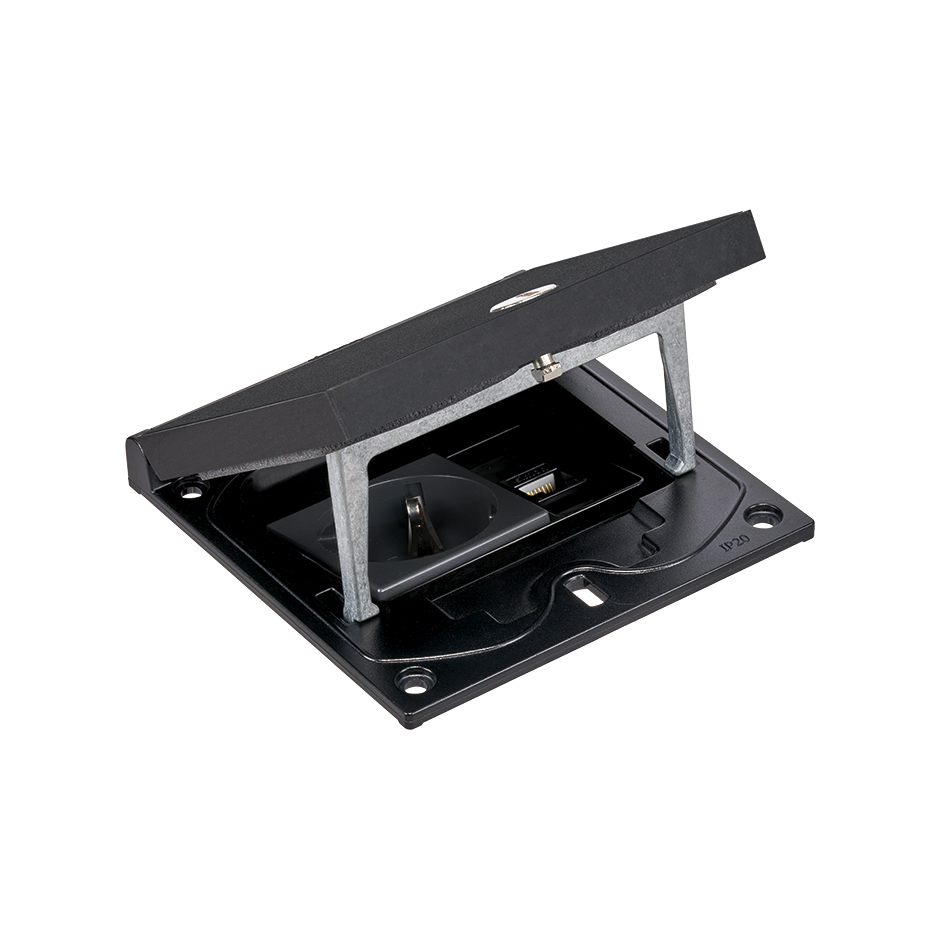

IP66 Mechanism holder and manual frame with schuko and RJ45 5e UTP

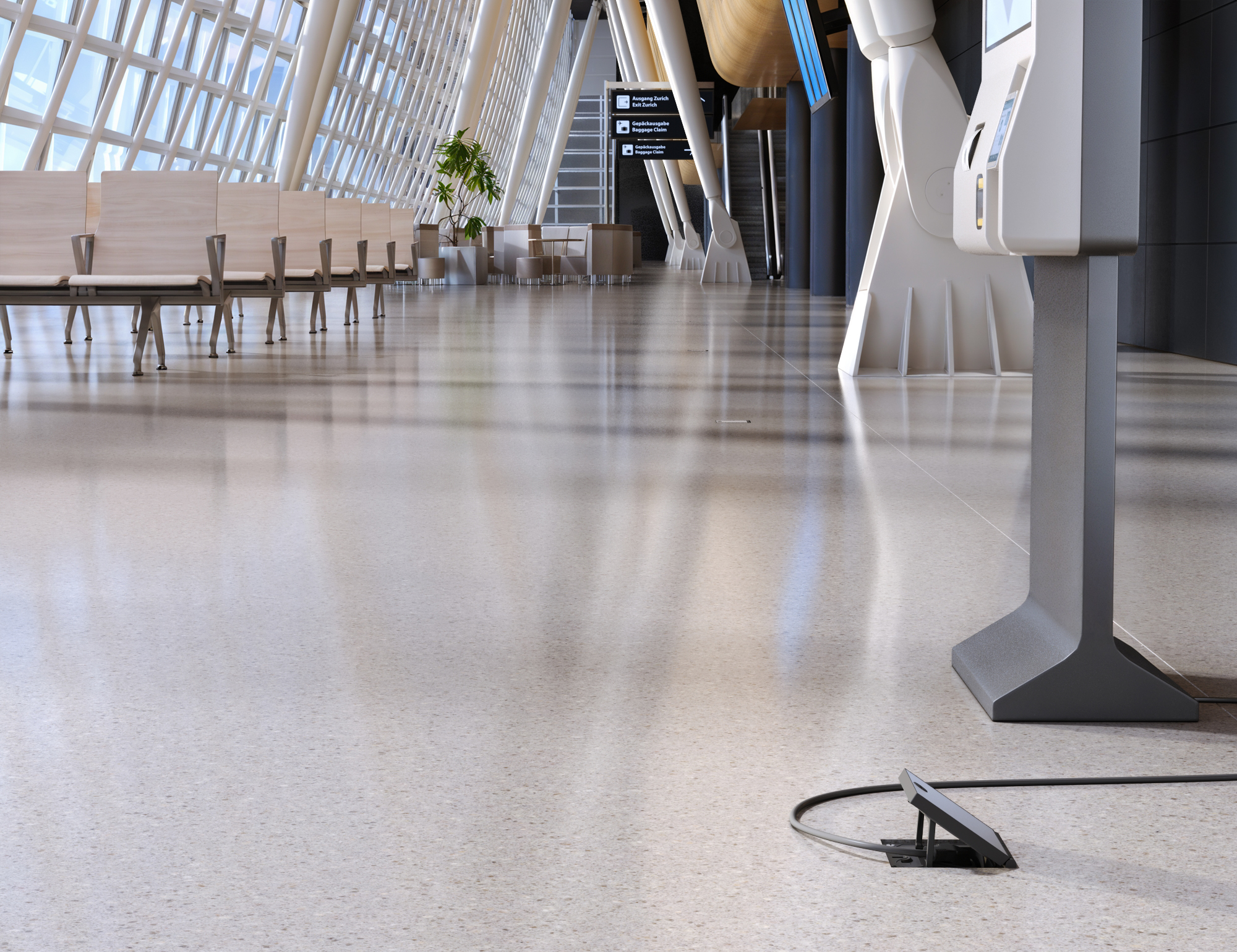

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a manual closing frame for mechanisms with a schuko socket and an RJ45 category 5e UTP connector. In combination with its housing, it will allow installation in raised floors or pavements. The product design, combined with its stainless steel manufacturing, achieves a robust, solid, and secure installation as it can withstand a water jet of 1 kg/cm² from any direction, reaching an IP66 protection rating when the lid is closed. It also supports a maximum load of 1500 kg and has an IK08 impact resistance. It maintains an optimal bend radius for wiring in high-category voice and data connections. Our accessory is available for plug connection with the lid closed, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility to level our box in case of an irregular slab (see reference KFA1003), or the ability to concatenate more than one box (see reference KFA1002).
