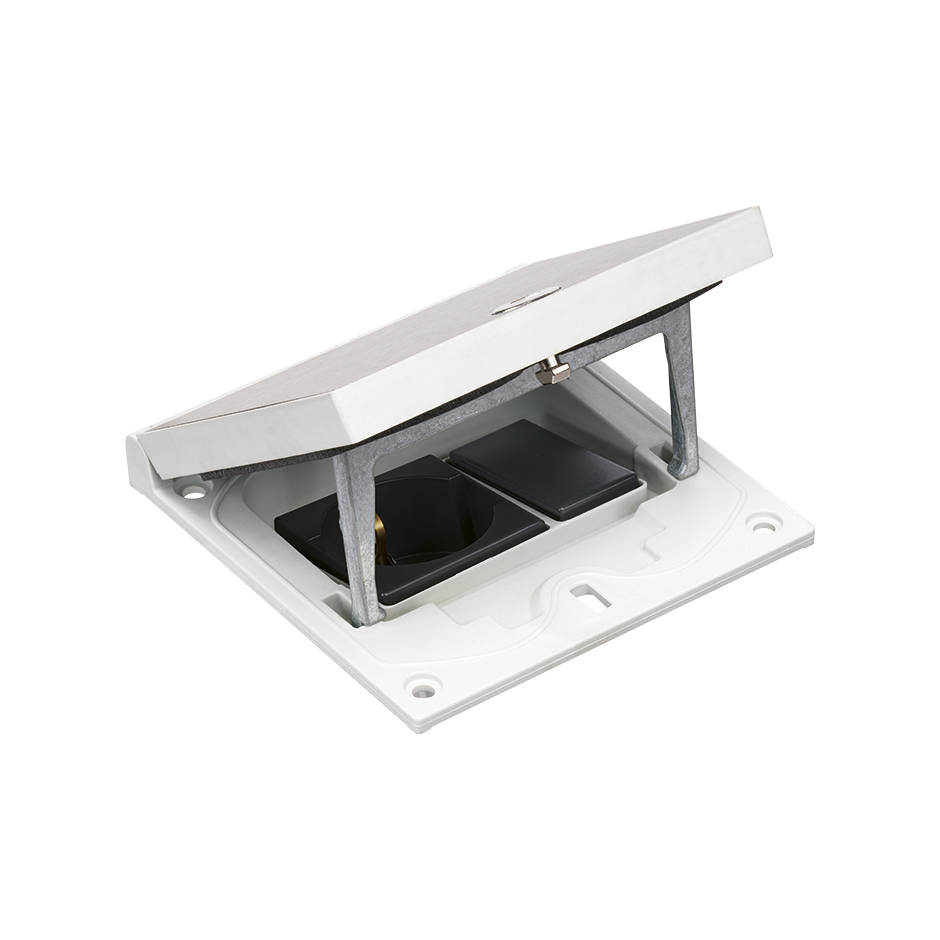

IP66 Mechanism holder and security frame with italian P40 socket and 22,5x45mm K45 mechanism

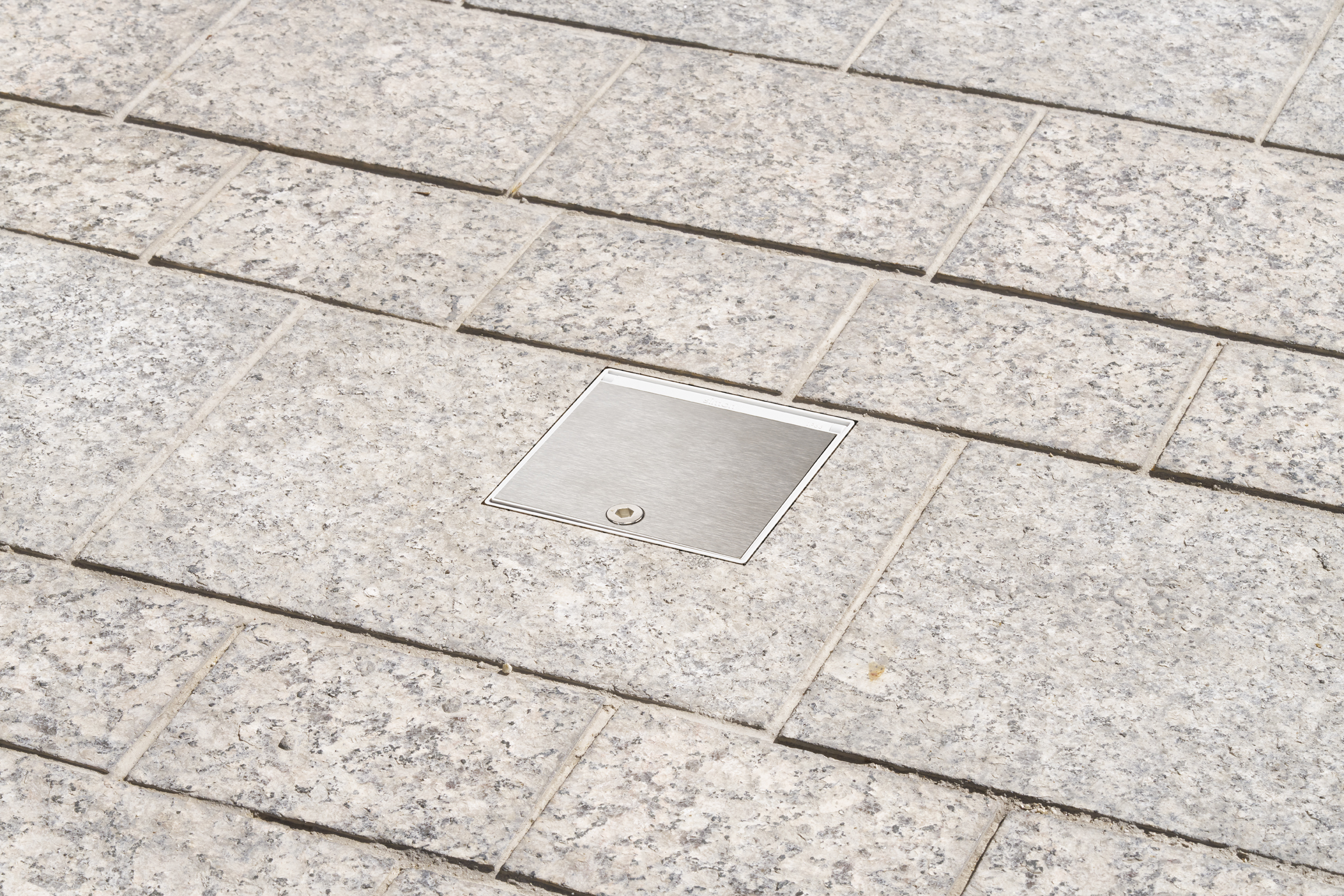

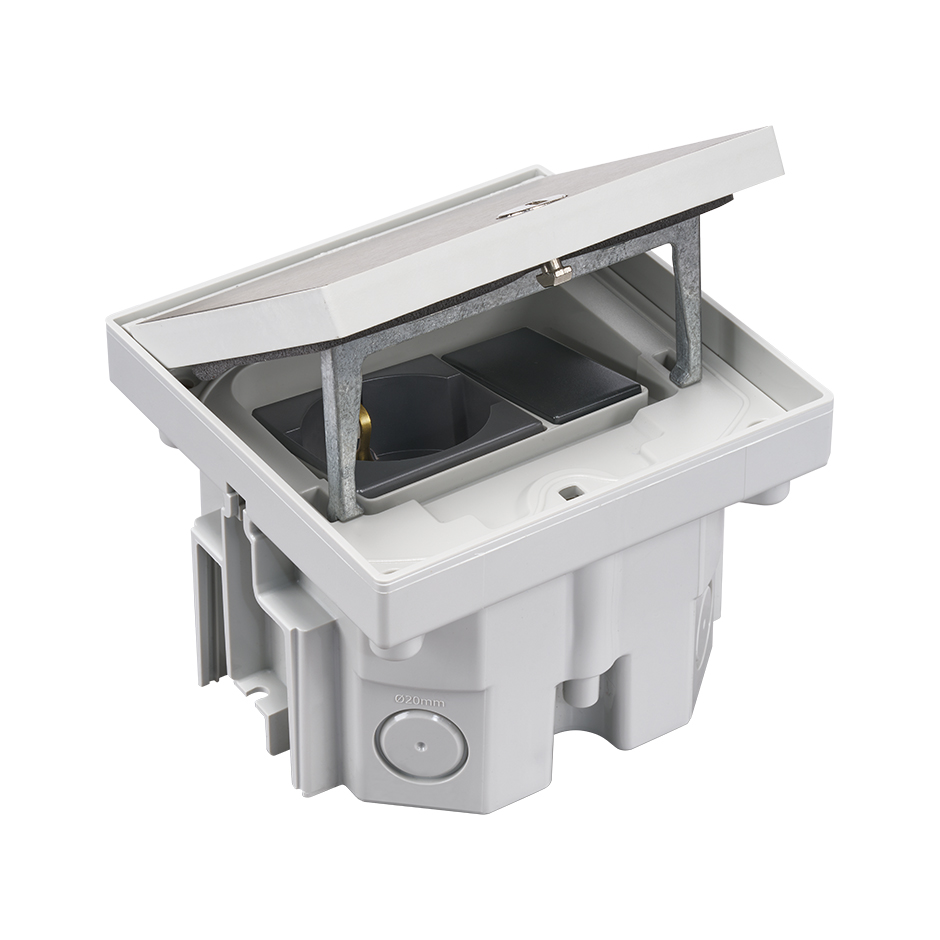

Simon completely renews its range of watertight floor boxes for indoor and outdoor environments. This is a mechanism holder frame with a security lock for environments that require restricted access, featuring an Italian P40 electrical base and capacity for K45 function of 22.5x45mm. In combination with its bucket, it allows for installation on technical floors or pavement. The product design, combined with its manufacturing from stainless steel, ensures a robust, solid, and safe installation as it withstands a water jet of 1 kg/cm² from any direction, achieving a protection rating of IP66 when the lid is closed. It also supports a maximum load of 1500 kg and has an impact resistance of IK08. It maintains an optimal bending radius for wiring in high-category voice and data connections. Our accessory for plug connection with the lid closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility to level our box in case of an irregular slab (see reference KFA1003), or the ability to concatenate more than one box (see reference KFA1002).
