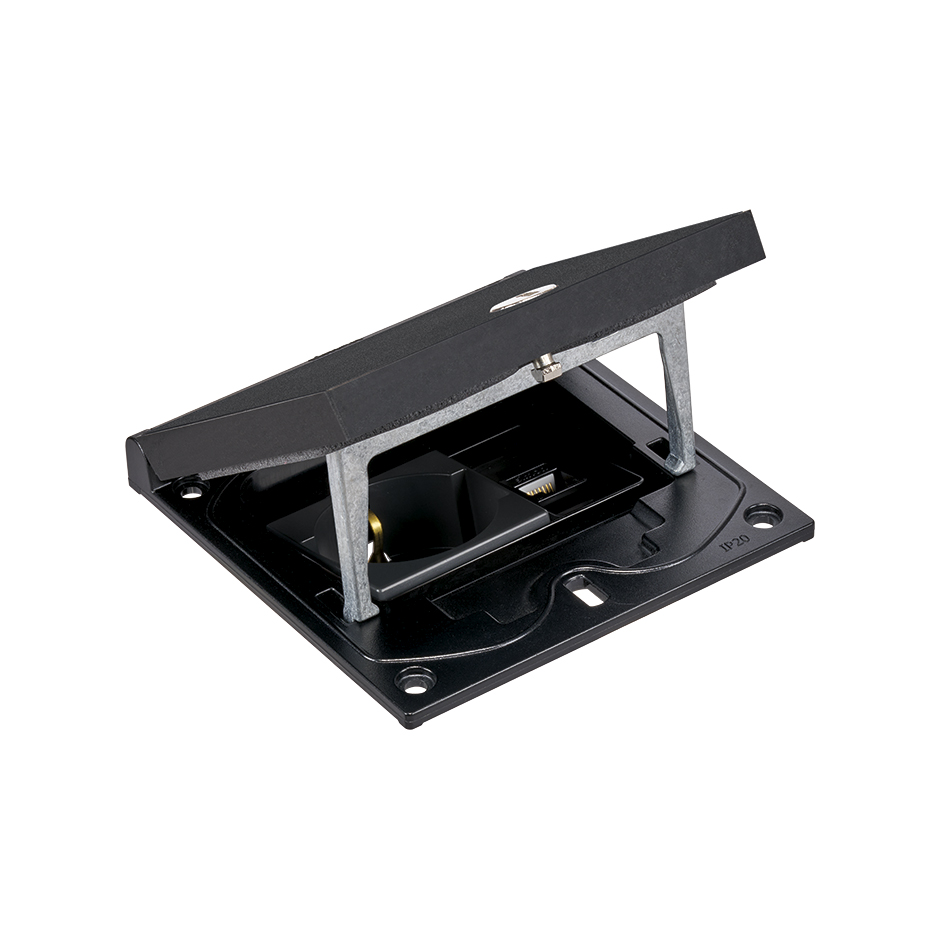

IP66 Mechanism holder and manual frame with italian P40 socket and RJ45 5e UTP

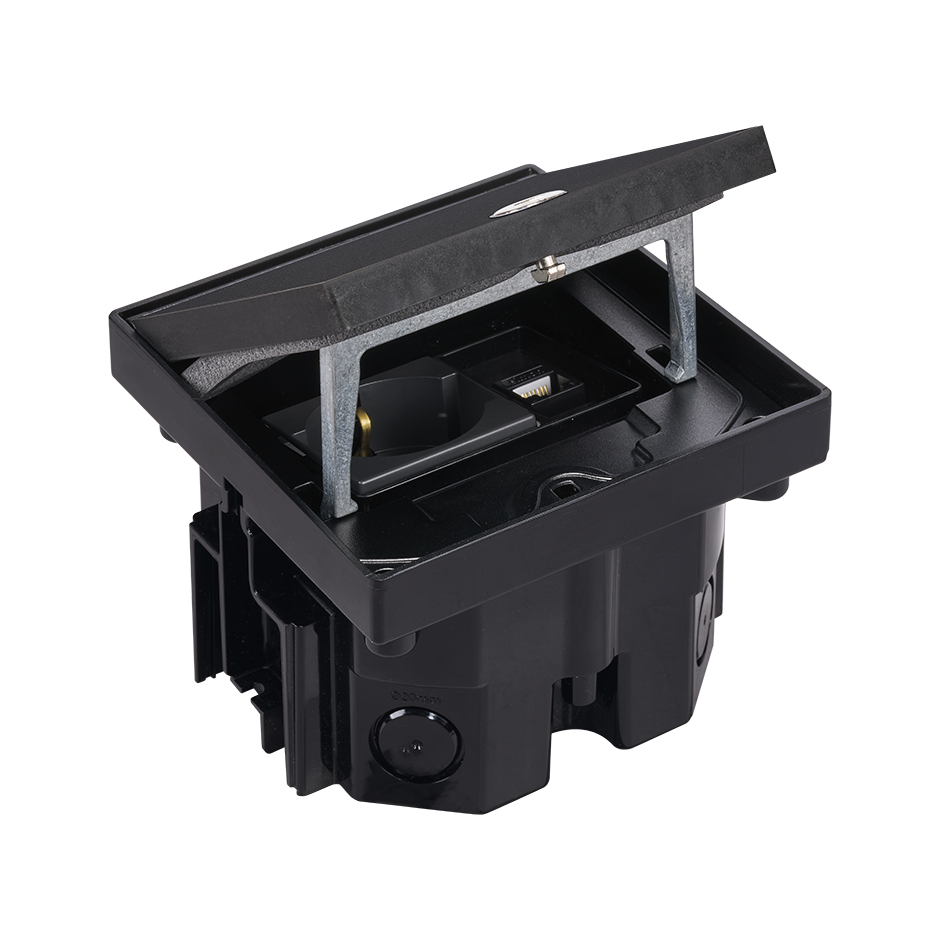

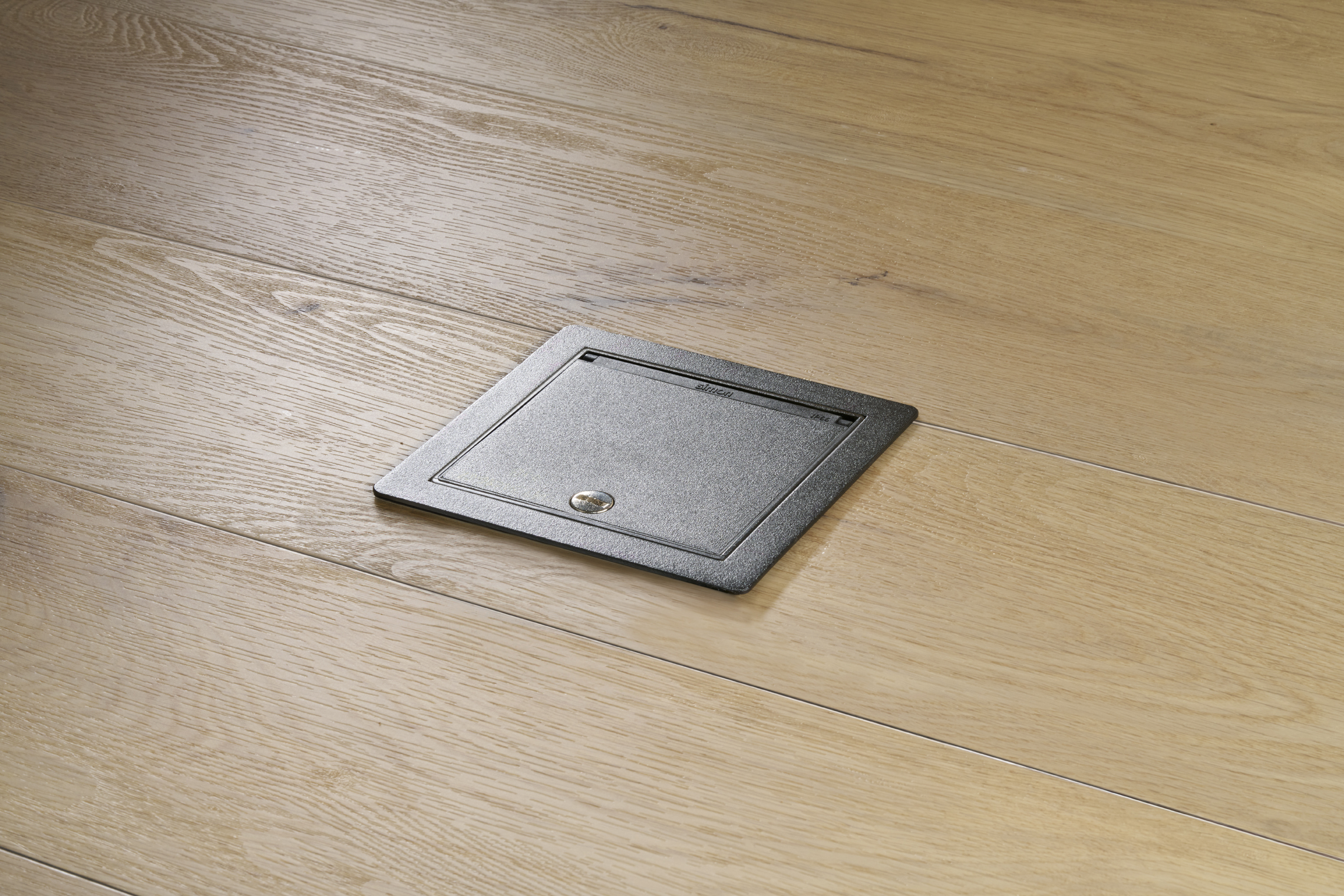

Simon has completely renewed its range of waterproof floor boxes for indoor and outdoor environments. This is a manual closing mechanism frame with an Italian P40 electrical base and a RJ45 category 5e UTP connector. In combination with its bowl, it allows installation in technical floors or pavements. The product design, combined with its manufacturing in stainless steel, achieves a robust, solid, and secure installation, as it can withstand a water jet of 1 kg/cm² from any direction, reaching a degree of protection IP66 when the lid is closed. It also supports a maximum load of 1500 kg and an IK08 impact resistance. It maintains an optimal bending radius of the wiring in high category voice and data connections. Our accessory for plug connection with the lid closed is available, allowing us to keep our connections active with an IP54 (see reference KFA1001), the possibility to level our box in case of having an irregular floor (see reference KFA1003), or the capacity to link more than one box (see reference KFA1002).
