Vista frontal tecla de 1 módulo verde translúcido Simon 27 Play

Vista frontal tecla de 1 módulo verde translúcido Simon 27 Play

Ref
2710010-111

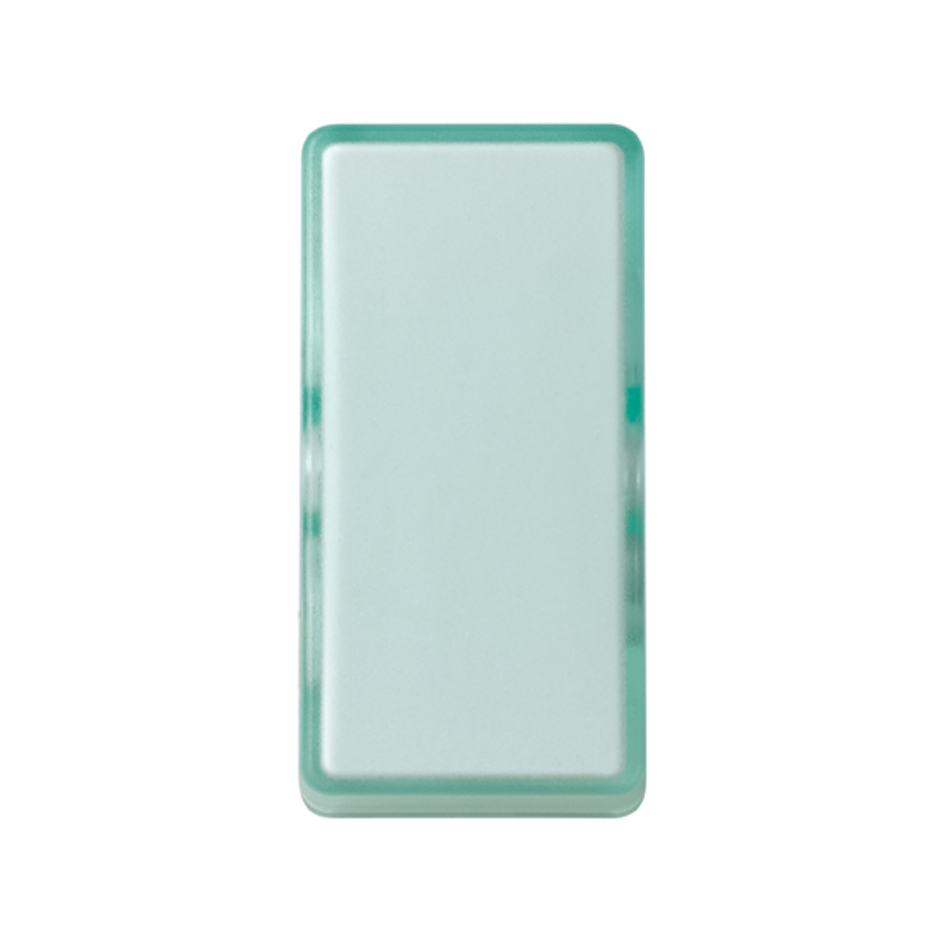

Tecla de meio-elemento para mecanismos de comando verde translúcido Simon 27 Play

Preço/unidade
A consultar
Quantidade de embalagem
5 Unidades

Transferências disponíveis

Características destacadas
Séries
Simon 27 Play
Séries compatíveis

Simon 27

Simon 27 Neos

Simon 27 Scudo

Simon 27 Centralizaciones

Simon Aqua

Simon 27 Play

In the wide range of Simon 27 Play you will find the half element rocker for control mechanisms, in translucent green colour, a module and measuring 22.5x45 mm. This reference only includes the embellishing rocker, in order to complete the function, a mechanism must be acquired and replace the included rocker. For its installation, it is sufficient to apply pressure to the piece or place it on the surface-mounted. The material is thermoplastic and is designed to reach temperatures that can oscillate without any inconvenience between 5 and 40º, and can support up to a maximum of between -25 and 50º. Complies with the regulation EN 60669-1: 1999 + A1: 2002 + A2: 2008 + EN 50581: 2012 You can use it for any type of home, business or local, with the guarantee and security of a brand consolidated in the market.

Informação básica
  • Compatibilidade

    Mecanismos Simon 27 Play

  • Observações

    Esta referência só inclui a tecla embelezadora. Para completar a função deve ser adquirido um mecanismo e substituir a tecla incluída.

  • Acabamento

    Verde translúcido

  • Material

    Plástico

  • Conteúdo da embalagem

    Tecla individual

Informação técnica
  • Mercado disponível

    CE

  • IP

    IP20

  • Número de elementos possíveis

    Meio-elemento

  • Temperatura de funcionamento (º C)

    5 - 40 ºC

  • Intervalo de temperatura de armazenamento (º C)

    -25 - 50 ºC

  • Versão

    Individual

  • Dimensões (mm)

    22,5 x 45

Instalação e manutenção
  • Sentido de instalação

    Vertical e horizontal

  • Tipo de instalação

    Apto para superfície e para encastrar

  • Manutenção

    Limpar com um pano suave e seco. Não utilizar panos e/ou detergentes abrasivos que contenham cloro.

Norma
  • Norma

    EN 60669-1:1999+A1:2002+A2:2008 + EN 50581:2012

Informação sobre logística
  • Produto alto

    11.1MMT

  • Largura produto

    22.5MMT

  • Produto profundo

    45MMT

  • Volume produto

    0.011DMQ

  • Peso líquido

    0.006KGM

  • Peso bruto

    0.009KGM

  • EAN produto

    8421053075265

  • Quantidade de embalagem

    5

  • Embalagem alta

    60MMT

  • Largura embalagem

    75MMT

  • Embalagem profunda

    75MMT

  • Volume embalagem

    0.338DMQ

  • Peso líquido

    0.03KGM

  • Peso bruto

    0.046KGM

  • EAN Embalagem

    8421053075265
