Simon 500 Cima

An accessory capable of making this the deepest box in the market: 80 mm for providing the ideal bending radius for voice and data cables.

Complete boxes with cover to hide and protect connections. Optional cylinder lock and key to restrict access to connections.

The boxes can be interlinked, which allows more modules to be added.

Thanks to the straight surfaces and uniform finish on the box.

Larger frame area to provide additional support. Corrects any deviations created when cutting out the hole, and also makes the box more sturdy.

The grommet cover protects the connection cables routed through it. The improvements made to it allow the routing of cables, ensuring that the cover stays flush when there are no cables protruding.

Trim cover with a finish that combines a unique design with functionality. Its unique texture makes it anti-slip, offering an attractive, modern design that hides any scratches.

Internal improvements were made to ensure a higher maximum load and compliance that goes above and beyond the regulations.

With a pleasant feel and minimum effort, the box is opened by pulling on both tabs at the same time.

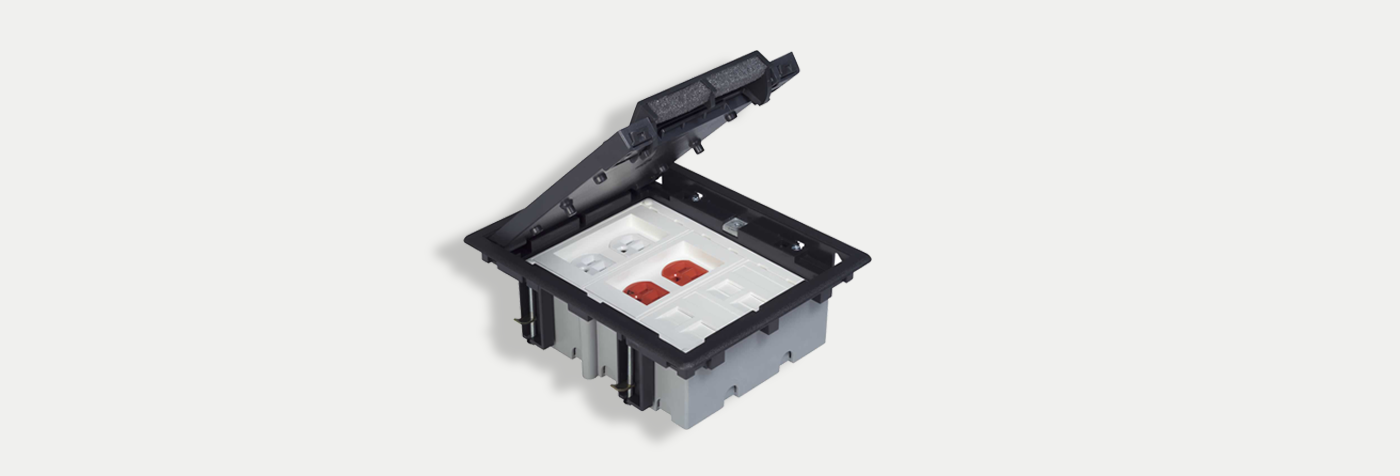

Service boxes provide a space for accessing the installation’s cables or connections.

Service covers installed in a raised floor provide access to the installation.

Allows cables to be routed from the raised floor to the surface.

Thanks to the angle of the mechanisms and the pre-punched inlet holes, there are no bends in the voice, data and multimedia cabling.

Thanks to the angle of the mechanisms and the pre-punched inlet holes, there are no bends in the voice, data and multimedia cabling.

The perfect solution for shallow floors, whether paved or raised.

Thanks to the two separate cable outlets and the different opening positions of the cover, it can adapt to changes in furniture location. (Ref. 52050203-035).

For connectivity in the minimum amount of space.

Cables flush-mounted into the floor or under a raised floor.

With the baseboard, the tower can be supplied through the DCS 85x18mm floor trunking.

The solution is installed directly in the frame holder, with the trim frame placed on top of it.

Ready for installation of protective element.

Bonds perfectly to the floor to keep out dust and small objects.

Allows the mini column to be screwed to the floor, giving it maximum strength.

Covers the connections between the profile and the baseboard.

Maximum strength.

Optimum finish.

The trim covers can be removed for easy maintenance of the connections without having to uninstall the mini column.

Complies with bending radius of V&D cabling thanks to the depth of the 57 mm boxes.

Uses stainless steel Allen bolts for added security, since they require a specific Allen.wrench to remove them.

Option to customise conduit or trunking inlets according to installation needs.

Flat design, it restricts access to connections.

The frame holders are clipped to the structure and, using linkable parts, can be used to create blocks, thus separating the electrical part from the V&D part.

LED indicators with no visible screws on front.

Grooves for easier plug alignment.

50x50mm format.

Plates for category 6A RJ45 connectors.

The plate has clips for attaching it to any enclosure without needing accessories.

The plate has clips for attaching it to any enclosure without needing accessories.

Indicates the correct position for connecting the patch cord.

Adjustable to different systems: distribution panels, plates and enclosures in the Simon 500 Cima range.

Adjustable to different systems: distribution panels, plates and enclosures in the Simon 500 Cima range.

Allow for optimised assembly and better maintenance.

Cable for transmitting voice, data and multimedia for applications that require a large bandwidth (up to 10 gigabit Ethernet).

The cable adheres to the following international standards: ISO/IEC 11801, ANSI/TIA-568 C.2

They offer exceptional results and are easy to connect on-site.
