Positionneur à 90º pour le positionnement vertical des plaques pour 1 élément Simon K45

Fiches produits

The Brand Simon through Simon Connect and its Simon K45 range, offering solutions for all types of installations, allows you absolute compatibility with the rest of the connectors on the market, and is a long term solution for your connectivity needs.

If necessary the correct inclination of the placed plates, Simon offers you this complement that places the housings in the correct position.

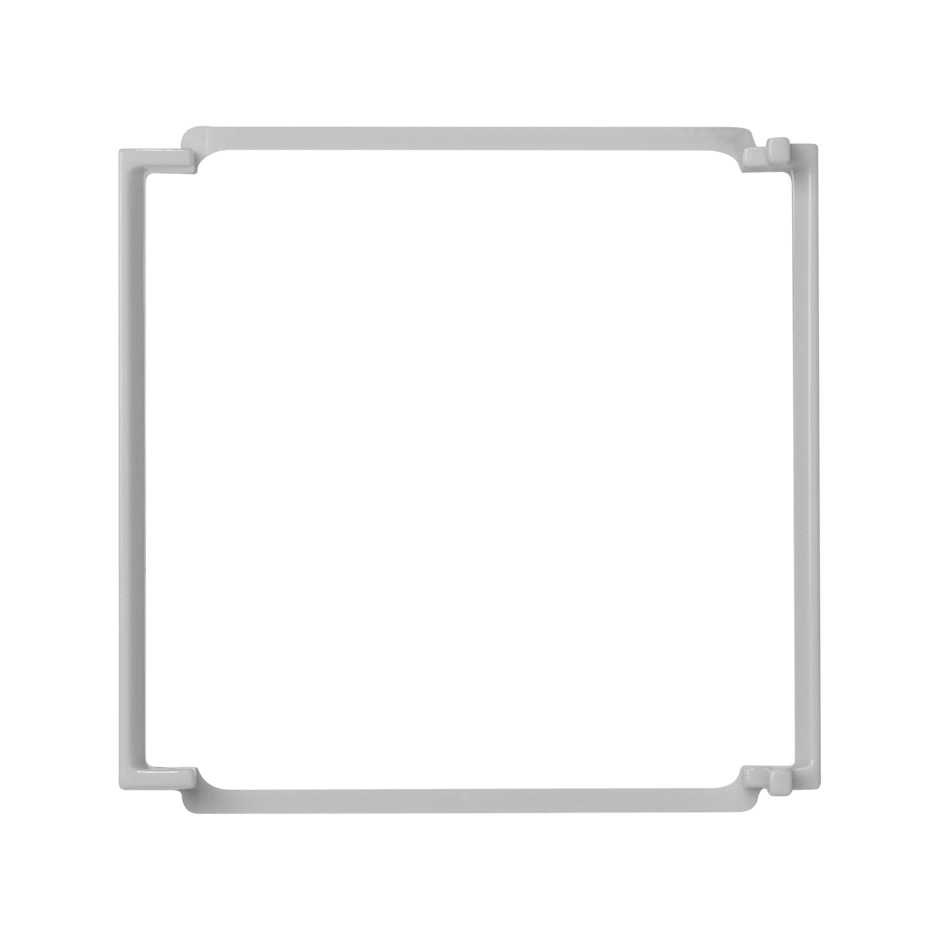

conformément à rigorous safety standards, not only for people, but also for the Voice, Data and Multimedia equipment, which are installed with the K45 range. This is the additional 90 ° positioner for placing the plates of Simon K45 of 1 element in a vertical position. Finished in grey.

Thermoplastic material fireproof. Allows you to adapt the voice and data plate in vertical housing (K45 TELEBLOCK, mini columns K45, K45 columns and mechanism holder trunking direct snap-fit K45 installed in vertical position) to correct the orientation of the plates.

Dimensions 43,5 x 44,5 x 13 mm halogen-free thermoplastic that guarantees no flame propagation in case of fire and low toxicity in case of smoke. It meets strict safety standards: UNE-EN 60669-1:2002 + A1:2003 + A2:2009.

Suitable for surface mounting and flush mounting. It withstands extreme temperatures (-5 to +60 ºC).
