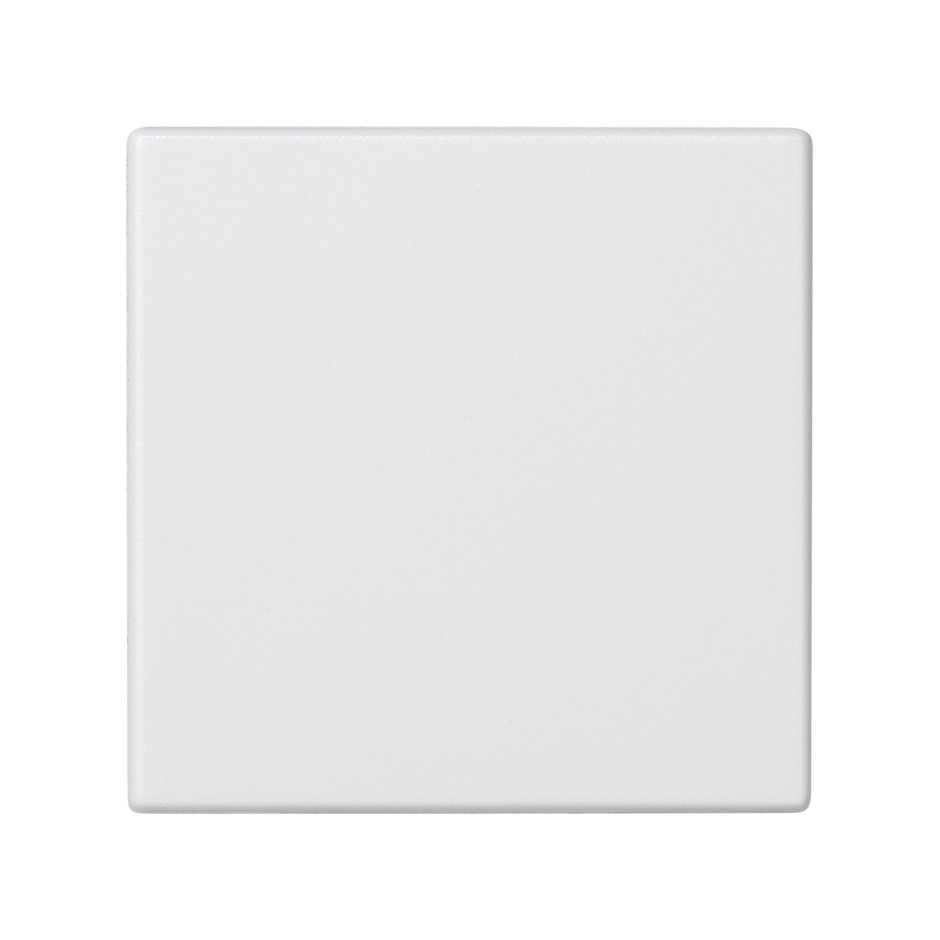

Vista frontal placa cega Simon K45 branco

Vista frontal placa cega Simon K45 branco

Embalagem placa embelezadora para 1 conetor XLR Simon K45 alumínio

Embalagem placa embelezadora para 1 conetor XLR Simon K45 alumínio

Ref
K17/9

Plaque aveugle 1 élément blanche Simon K45

Prix unitaire
À consulter
Quantité d’emballage
20 Unités

Téléchargements disponibles

Déclaration de conformité
Principales caractéristiques
Séries
Simon K45
Séries compatibles

Simon K45

The halogen-free thermoplastic is the material chosen for the manufacture of this blind cover for 1 element finished in white colour of the series Simon K45, this material provides an extra security to the installation as to prevent the propagation of the flame in case of fire and guarantees a low toxicity in case of smoke, it is also very resistant to temperature changes and knocks derived from use. It is a cover in its individual version half element suitable for surface-mounted and recess. It has dimensions of 45 x 45 x 8.5 millimetres. Its maintenance is very simple, only we'll need a soft and dry cloth to keep it as the first day. When talking about the series K 45 of Simon we highlight its great versatility conectiva with a maximum compatibility with all the connectors on the market, a series designed for its perfect integration in work spaces or public places.

Information de base
  • Compatibilité

    Boîtiers Simon K45 pour montage mural, sol, plafond et mobilier et boîtiers Simon 500 Cima (à combiner avec l'adaptateur K45 à 500 Cima réf.50012088-030)

  • Finition

    Blanc

  • Matériau

    Plastique

  • Contenu de l’emballage

    Plaque aveugle

Informations techniques
  • Marché disponible

    CE

  • RAL

    9003

  • Disponible en

    Versions 3 et demi-module

  • IP

    IP20

  • Température maximale de fonctionnement (ºC)

    +60º C

  • Plage de température pendant l’installation (ºC)

    -5 à 60º C

  • Version

    Single

  • Profondeur (mm)

    8.5

  • Dimensions (mm)

    45 x 45 x 8,5

Installation et maintenance
  • Installation possible dans un boîtier d’encastrement

    Adaptateur universel, spécifique au Simon K45 et spécifique au Simon 500 Cima avec adaptateur (ref.50012088-030)

  • Sens d’installation

    Vertical selon la direction des mécanismes

  • Type d’installation

    Adapté pour montage en saillie et encastré

  • Retrait de la plaque

    Avec outil seulement

  • Type de fixation

    Fixation par encliquetage direct, aucun outil requis

  • Entretien

    Nettoyez avec un chiffon doux et sec. N'utilisez pas de chiffons abrasifs et/ou de nettoyants contenant du chlore.

Réglementation
  • Règlementation

    UNE-EN 60.670-1:2006

Informations logistique
  • Volume produit

    45570MMQ

  • Poids net

    0.011KGM

  • Poids brut

    0.011KGM

  • Quantité d’emballage

    20

  • Hauteur emballage

    70MMT

  • Largeur emballage

    93MMT

  • Profondeur emballage

    140MMT

  • Volume emballage

    911400MMQ

  • Poids net

    0.22KGM

  • Poids brut

    0.22KGM

  • Emballage EAN

    8426436017689
