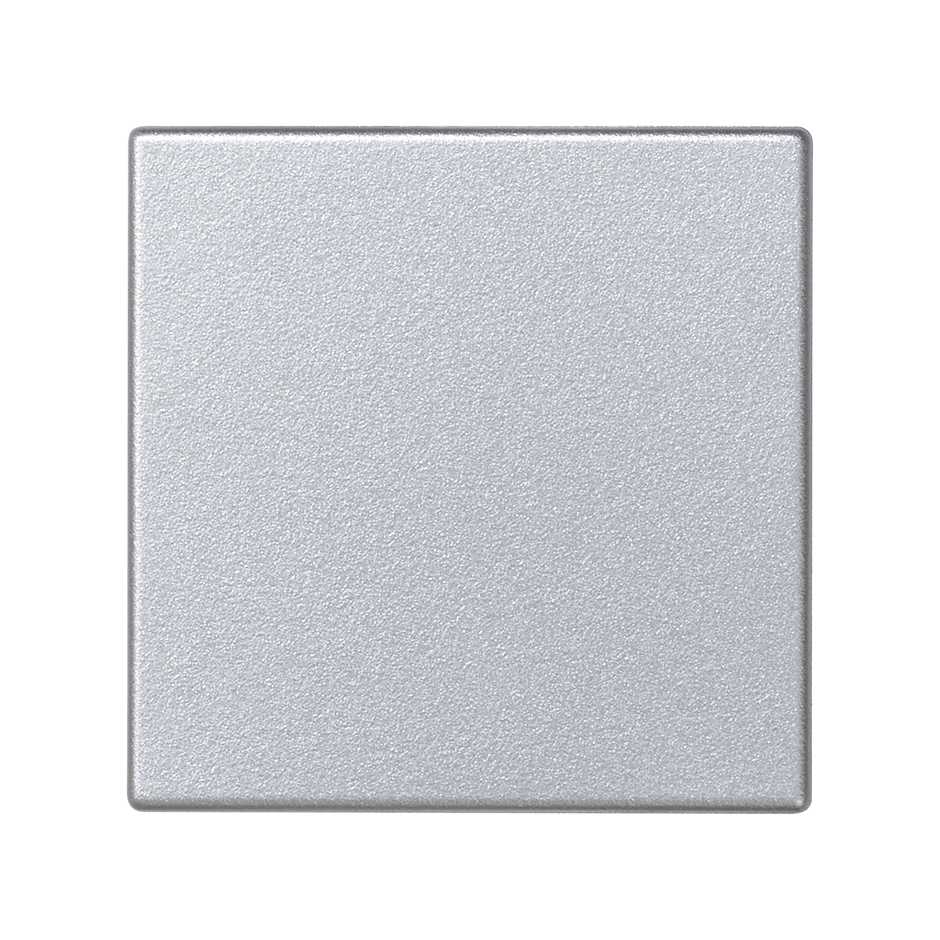

Couvercle aveugle Simon K45 aluminium vue de face

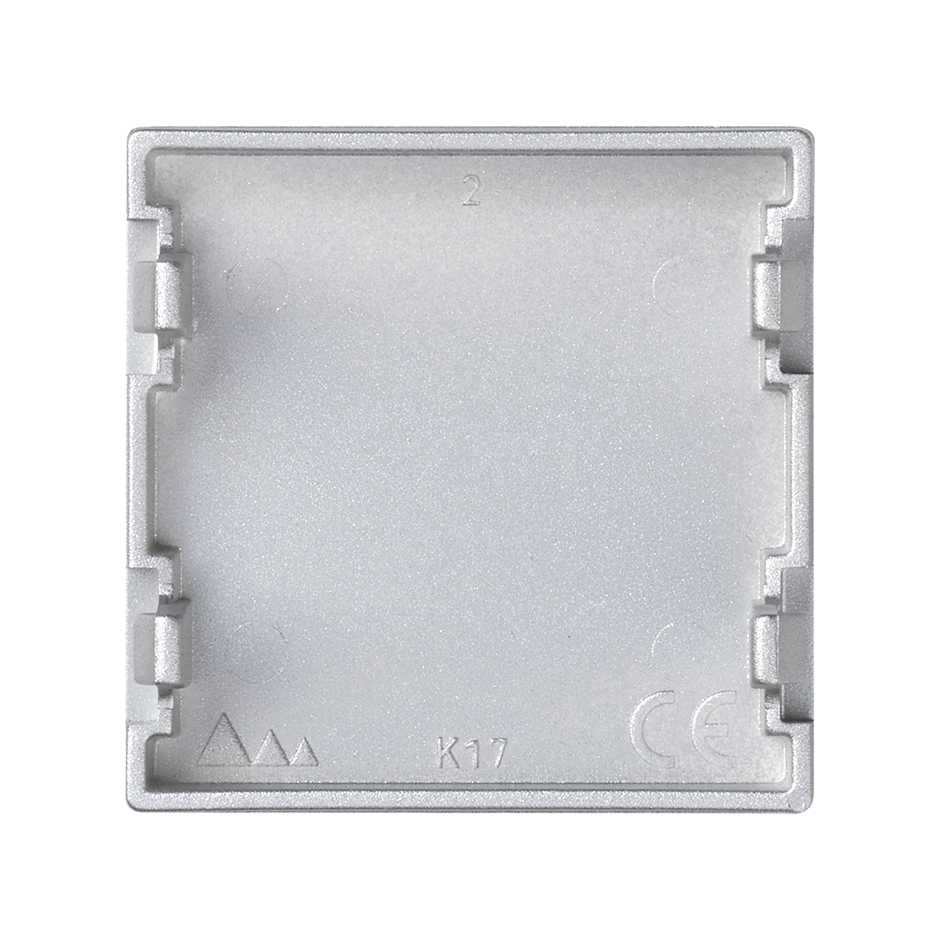

Plaque aveugle Simon K45 aluminium vue arrière

Blind cover Simon K45 aluminium packaging

Ref
K17/8

Plaque aveugle 1 élément,couleur: aluminium Simon K45

Prix unitaire
À consulter
Quantité d’emballage
20 Unités

Téléchargements disponibles

Déclaration de conformité
Principales caractéristiques
Séries
Simon K45
Séries compatibles

Simon K45

Blind cover for an element of the series Simon K45. It has a modern finished in aluminium, which is perfect for installation in all types of spaces modern, which bet for the decoration modern and stylish. This is the individual version of the cover, with half module and without signaling function. It can be installed in surface-mounted or recessed and has the exact dimensions of 45 x 45 millimetres and a depth of 8.5 millimetres. It is manufactured with halogen-free thermoplastic materials, to guarantee the security, which prevent the propagation of the flame in case of fire and to minimize the toxicity if any smoke. It can withstand temperatures very high, up to + 60 degrees centigrade. The blind cover Simon K45 can be purchased in versions quarter and half element for maintenance you just need to clean it with a soft and completely dry cloth without any aggressive cleaners containing chlorine in its formula.

Information de base
  • Compatibilité

    Boîtiers Simon K45 à installer dans le mur, le sol, le plafond et le mobilier et boîtiers Simon 500 Cima (à combiner avec l'adaptateur K45 à 500 Cima réf.50012088-033)

  • Finition

    Aluminium

  • Matériau

    Plastique

  • Contenu de l’emballage

    Plaque aveugle

Informations techniques
  • Marché disponible

    CE

  • Disponible en

    Versions 3 et demi-module

  • IP

    IP20

  • Température maximale de fonctionnement (ºC)

    +60º C

  • Plage de température pendant l’installation (ºC)

    -5 à 60º C

  • Version

    Single

  • Profondeur (mm)

    8.5

  • Dimensions (mm)

    45 x 45 x 8,5

Installation et maintenance
  • Installation possible dans un boîtier d’encastrement

    Adaptateur universel, spécifique au Simon K45 et spécifique au Simon 500 Cima avec adaptateur (ref.50012088-033)

  • Sens d’installation

    Vertical selon la direction des mécanismes

  • Type d’installation

    Adapté pour montage en saillie et encastré

  • Retrait de la plaque

    Avec outil seulement

  • Type de fixation

    Fixation par encliquetage direct, aucun outil requis

Réglementation
  • Règlementation

    UNE-EN 60.670-1:2006

Informations logistique
  • Volume produit

    45570MMQ

  • Poids net

    0.013KGM

  • Poids brut

    0.013KGM

  • Quantité d’emballage

    20

  • Hauteur emballage

    70MMT

  • Largeur emballage

    93MMT

  • Profondeur emballage

    140MMT

  • Volume emballage

    911400MMQ

  • Poids net

    0.26KGM

  • Poids brut

    0.26KGM

  • Emballage EAN

    8426436044470
