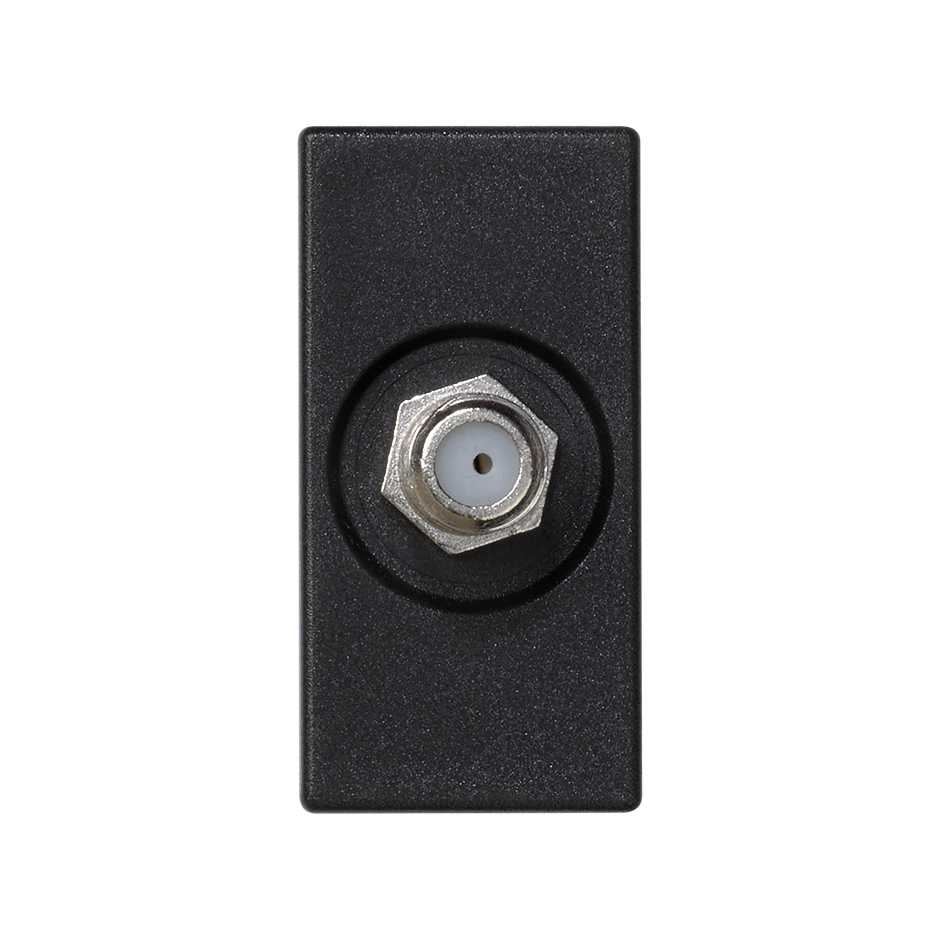

Prise satellite simple type F graphite Simon K45 vue de face

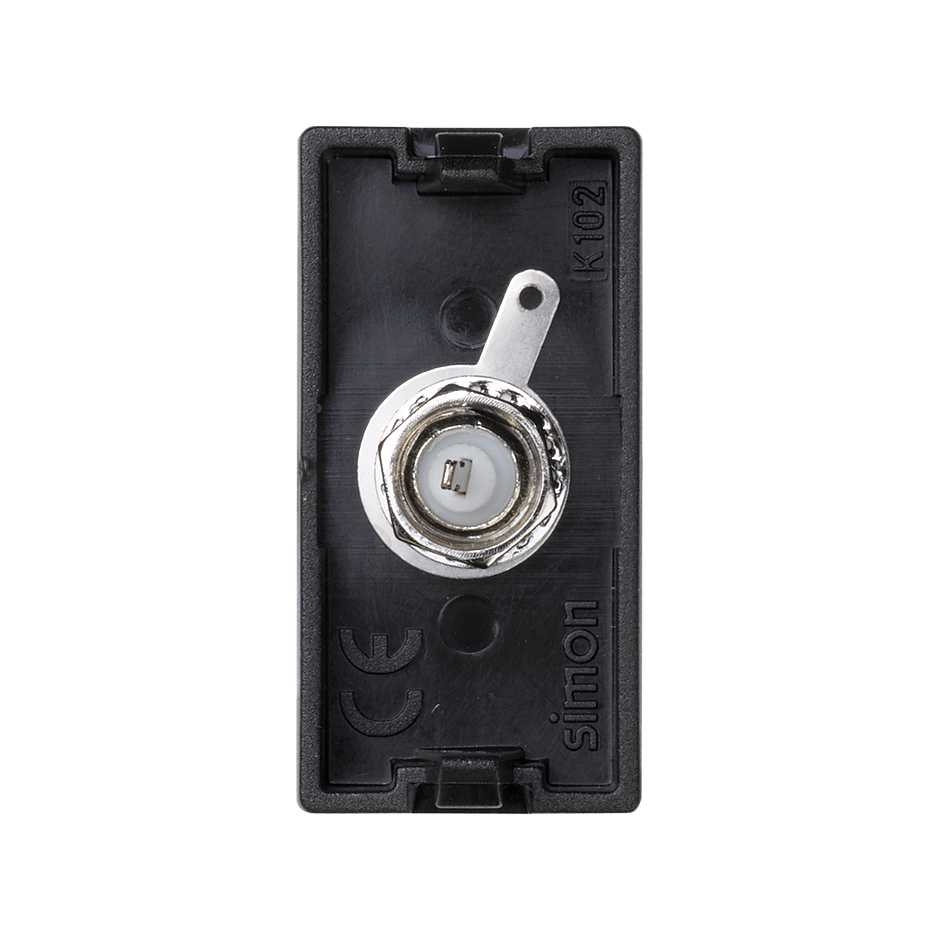

Prise satellite simple type F Simon K45 graphite vue arrière

Satellite socket single F type Simon K45 graphite packaging

Ref
K102C/14

Prise satellite simple de type F avec plaque graphite Simon K45

Prix unitaire
À consulter
Quantité d’emballage
10 Unités

Téléchargements disponibles

Principales caractéristiques
Séries
Simon K45
Séries compatibles

Simon K45

In an original finishes in graphite, the simple F type female satellite socket with trim plate and insertion by welding and form part of our collection Simon K45 and is suitable both for surface and flush mounting, has dimensions of 22.5x45 mm, a thickness of 42,9 mm and is made of metal materials with thermoplastic insulation self-extinguishing halogen-free in order to ensure that is no flame spread in case of fire, along with a very low toxicity in the event of smoke generation. There are some important as data to be taken into account, we inform you that the maximum recommended length of cabling is 90 metres. If you are in which they were looking for the latest in technology for your home, you are of congratulations, as the series Simon K45 has been specially designed to satisfy the desires of the most demanding, and that is that our I wish to innovate and improve we put as one of the brand in the sector. So that you the games and confident in our specialists.

Information de base
  • Compatibilité

    Boîtiers Simon K45 à installer dans les murs, le sol, le plafond et le mobilier et boîtiers Simon 500 Cima (à combiner avec l'adaptateur K45 à 500 Cima réf.50012088-038)

  • Remarques

    Longueur maximale du fil recommandée 90 mètres (câble RG-6). Pour plus d'informations, veuillez lire la fiche d'instructions du produit.

  • Finition

    Graphite

Informations techniques
  • Marché disponible

    CE

  • Nombre de contacts

    1

  • Nombre de câbles

    1

  • RAL

    7021

  • Section de câble admise (mm)

    De 6 à 8 mm

  • Type de connecteur

    SAT

  • IP

    IP20

  • Nombre d’éléments possibles

    1/2 éléments

  • Température de fonctionnement (ºC)

    5 - 40 ºC

  • Plage de température de stockage (ºC)

    -25 - 50 ºC

  • Version

    Single

Installation et maintenance
  • Installation possible dans un boîtier d’encastrement

    Adaptateur universel, spécifique au Simon K45 et spécifique au Simon 500 Cima avec adaptateur (ref.50012088-038)

  • Type d’installation

    Adapté pour montage en saillie et encastré

  • Entretien

    Nettoyez avec un chiffon doux et sec. N'utilisez pas de chiffons abrasifs et/ou de nettoyants contenant du chlore.

Informations logistique
  • Volume produit

    91140MMQ

  • Poids net

    0.014KGM

  • Poids brut

    0.014KGM

  • Quantité d’emballage

    10

  • Hauteur emballage

    70MMT

  • Largeur emballage

    93MMT

  • Profondeur emballage

    140MMT

  • Volume emballage

    911400MMQ

  • Poids net

    0.14KGM

  • Poids brut

    0.14KGM

  • Emballage EAN

    8426436046535
