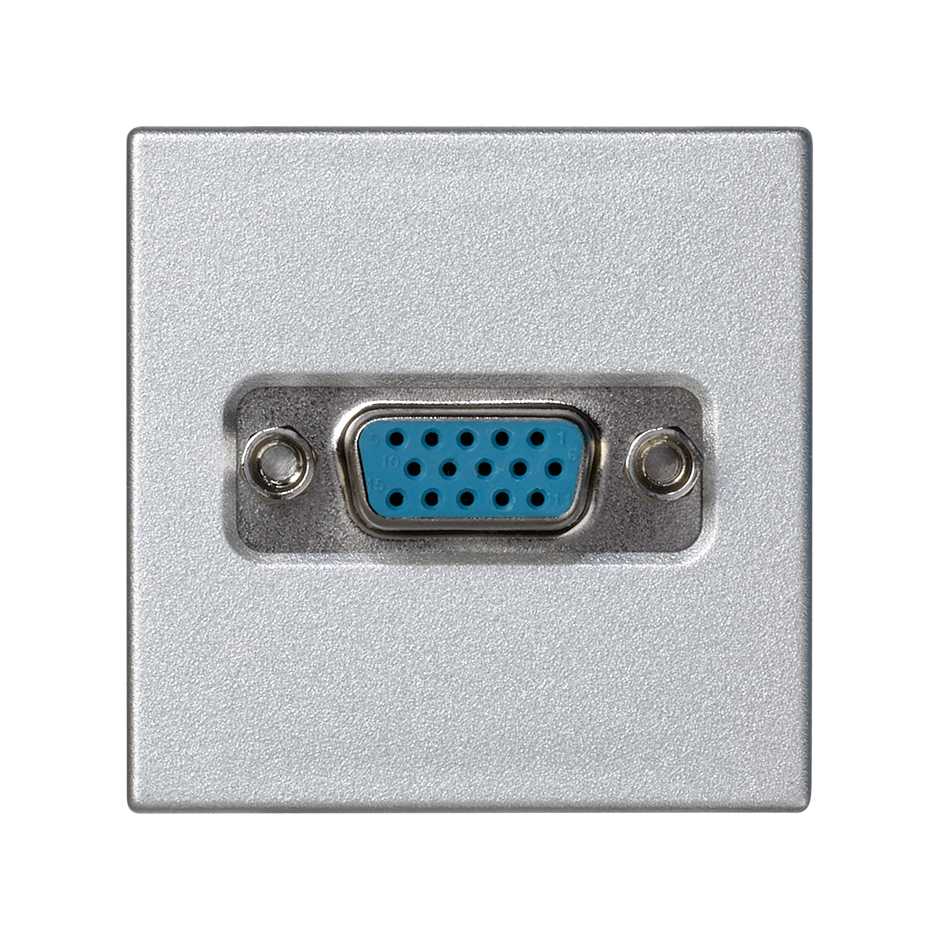

Connecteur VGA HD15 Simon K45 aluminium vue de face

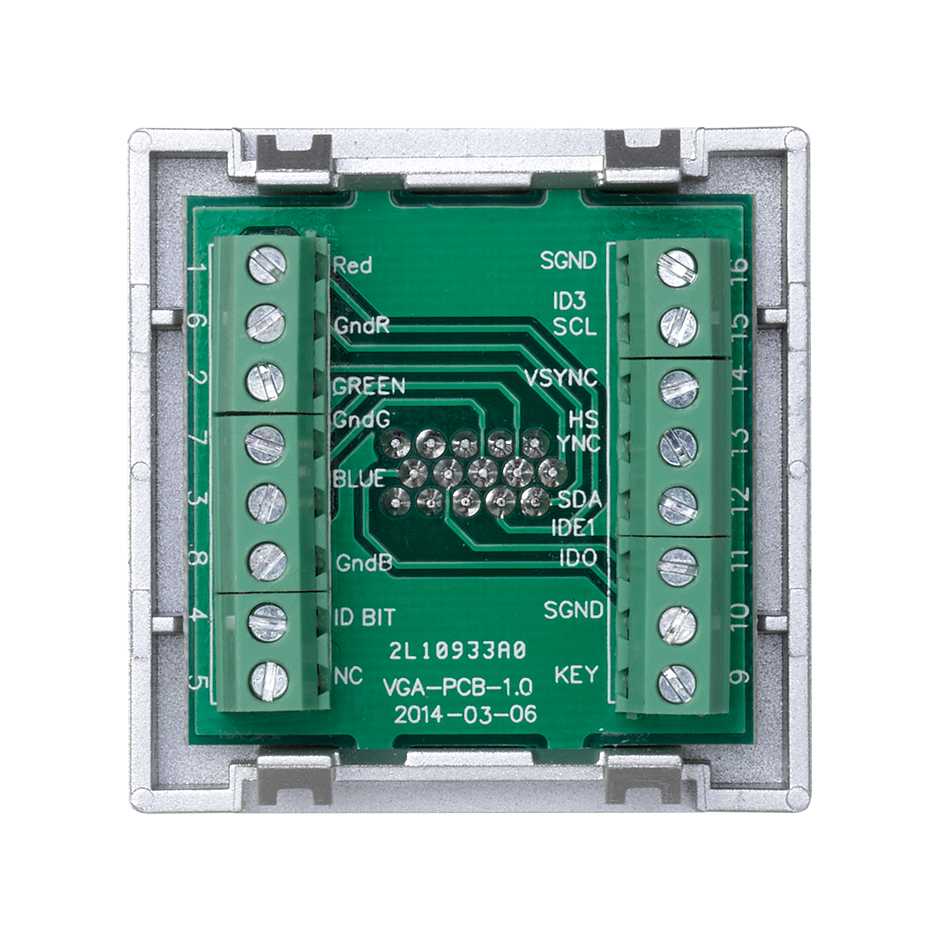

Connecteur VGA HD15 Simon K45 aluminium vue arrière

Connecteur VGA HD15 Simon K45 aluminium packaging

Ref
K100B/8

Connecteur horizontal VGA HD15 femelle avec plaque aluminium Simon K45

Prix unitaire
À consulter
Quantité d’emballage
1 Unité

Téléchargements disponibles

Manuels d’installation
Déclaration de conformité
Principales caractéristiques
Séries
Simon K45
Séries compatibles

Simon K45

The brand Simon brings to multimedia installations all the elements necessary for carrying it out. In this way it offers a comprehensive solution to all your connectivity needs and multimedia connections.

This includes audiovisual plates for multimedia connections of spotlights, audio systems, mobile devices, video conference and IT equipment . All the solutions for your conference rooms, connection of spotlights mixing rooms, etc., and places in which a high speed connection in image and audio is required.

Easy installation using screws. Compatible with Simon safety systems. Connectors and plates for multimedia.

VGA HD15 female connector with trim plate. aluminium finish. Range Simon K45 clamping by screw. Method application by Insertion.

Maximum recommended length of cabling: 20 meters.

Single connector. Suitable for surface mounting and flush mounting.

Metal components with self-extinguishing and halogen-free thermoplastic insulation that guarantees no flame propagation in case of fire and low toxicity in case of smoke dimensions of 45x45 mm

Clean with a soft and dry cloth, it is recommended to use cleaners without chlorine.

Information de base
  • Compatibilité

    Boîtiers Simon K45 à installer dans le mur, le sol, le plafond et le mobilier et boîtiers Simon 500 Cima (à combiner avec l'adaptateur K45 à 500 Cima réf.50012088-033)

  • Remarques

    Longueur maximale du fil recommandée 20 mètres Pour plus d'informations, veuillez lire la fiche d'instructions du produit.

  • Finition

    Aluminium

Informations techniques
  • Marché disponible

    CE

  • Nombre de contacts

    15

  • Nombre de câbles

    10

  • Section de câble admise (mm)

    De 0,2 à 0,5 mm

  • Type de connecteur

    VGA

  • Format

    VGA

  • IP

    IP20

  • Nombre d’éléments possibles

    1 article

  • Température de fonctionnement (ºC)

    5 - 40 ºC

  • Plage de température de stockage (ºC)

    -25 - 50 ºC

  • Version

    Single

Installation et maintenance
  • Installation possible dans un boîtier d’encastrement

    Adaptateur universel, spécifique au Simon K45 et spécifique au Simon 500 Cima avec adaptateur (ref.50012088-033)

  • Type d’installation

    Adapté pour montage en saillie et encastré

  • Entretien

    Nettoyez avec un chiffon doux et sec. N'utilisez pas de chiffons abrasifs et/ou de nettoyants contenant du chlore.

Informations logistique
  • Poids net

    0.035KGM

  • Poids brut

    0.035KGM

  • Produit EAN

    8426436058941

  • Quantité d’emballage

    1

  • Hauteur emballage

    50MMT

  • Largeur emballage

    42MMT

  • Profondeur emballage

    50MMT

  • Volume emballage

    0.012HLT

  • Poids net

    0.035KGM

  • Poids brut

    0.023KGM

  • Emballage EAN

    8426436058941
