Ref
S-581810

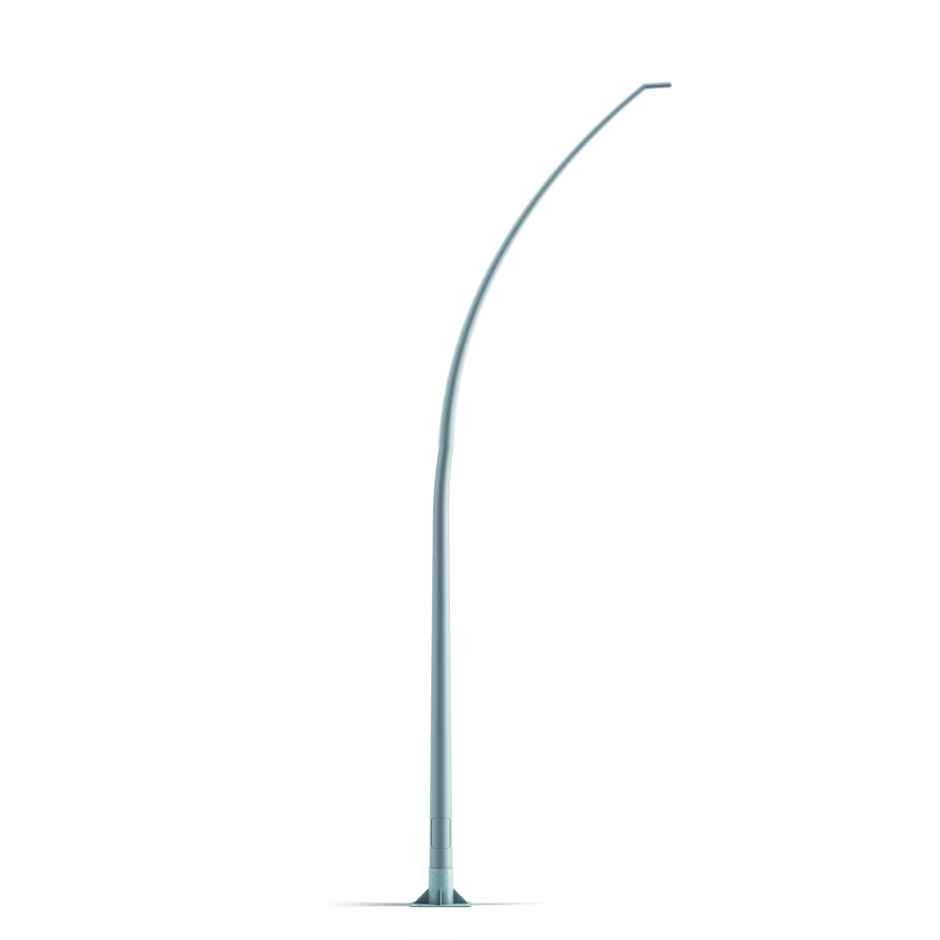

Simon Arco functional curved pole, model R1, 10 m high, conical tapering and post top luminaire fixing

Price/Unit
Price on request
Outstanding Features
Series
Simon Arco
Model
Arco R1
Series Compatibility

Simon Arco

Basic information
  • Model

    Arco R1

  • Finish of the base

    Galvanized (Standard Paint)

  • Finish Shaft

    Galvanized (Standard Paint)

  • Material of the base

    Carbon steel sheet, S235JR quality

  • Material Shaft

    Carbon steel sheet, S235JR quality

Technical information
  • Curvature Distance

    3500

  • Distance between bolts (A)

    285

  • Distance of the base-register door (z)

    550

  • Inclination

    3500

  • Register Door Height

    300

  • Total Height (H)

    10000

  • Width of the base

    400

  • IP Rating

    IP3X / IP44

  • Luminaire fixation

    post top

  • Registration Gate

    Flush with interior reinforcement

  • Seat Plate

    Flat steel sheet, S235JR quality, with reinforcing ring and gussets

  • Forefront Diameter (d)

    60

  • Meter lenght (MxL) (m)

    M22X600

Regulation
  • Regulations

    EN 40-5

Logistics Information
  • Product net weight

    153 KGM

  • Product gross weight

    153 KGM

  • Product EAN

    8431715035841

  • Packaging net weight

    153
