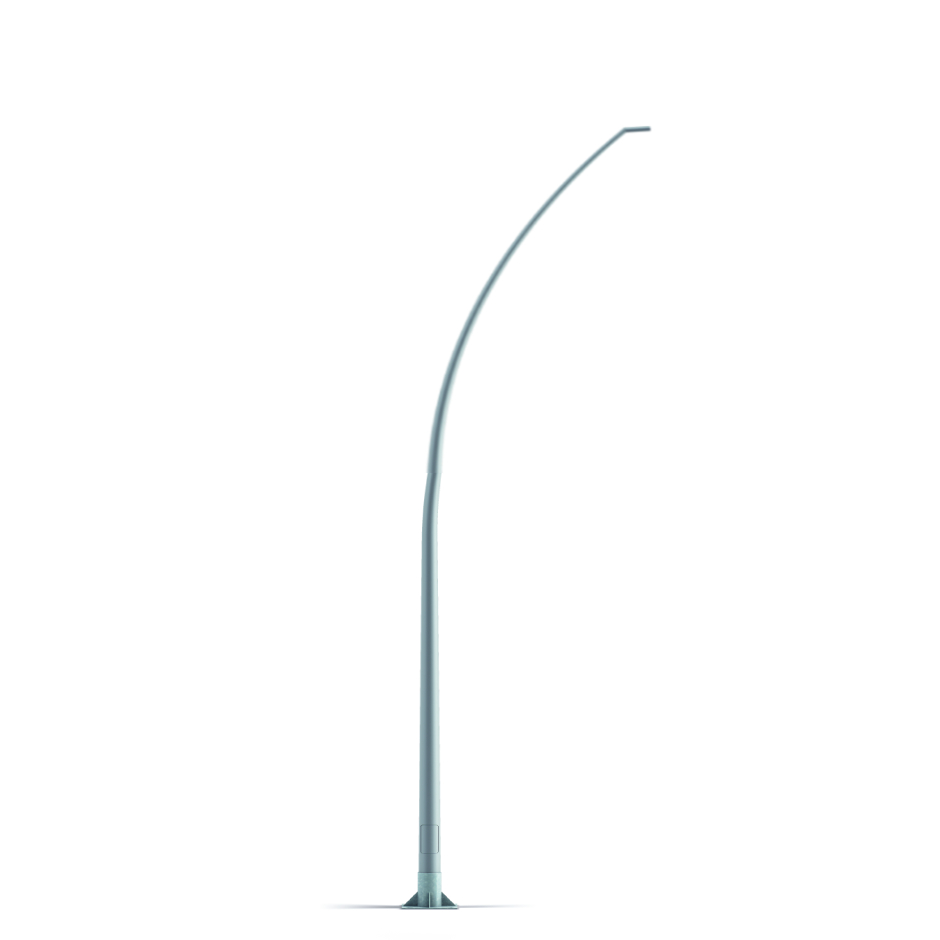

Simon Arco functional curved pole, model R1, 9 m high, conical tapering and post top luminaire fixing, front view

Simon Arco functional curved pole, model R1, 9 m high, conical tapering and post top luminaire fixing, front view

Ref
S-581809

Simon Arco functional curved pole, model R1, 9 m high, conical tapering and post top luminaire fixing

Price/Unit
Price on request

Available downloads

Data sheet

S-581809.pdf

Ask for advice
Outstanding Features
Series
Simon Arco
Model
Arco R1
Series Compatibility

Simon Arco

Product Information
Support
Basic information

  • Model

    Arco R1

  • Finish of the base

    Galvanized (Standard Paint)

  • Finish Shaft

    Galvanized (Standard Paint)

  • Material of the base

    Carbon steel sheet, S235JR quality

  • Material Shaft

    Carbon steel sheet, S235JR quality

Technical information

  • Curvature Distance

    3000

  • Distance between bolts (A)

    285

  • Distance of the base-register door (z)

    550

  • Inclination

    3000

  • Register Door Height

    300

  • Total Height (H)

    9000

  • Width of the base

    400

  • IP Rating

    IP3X / IP44

  • Luminaire fixation

    post top

  • Registration Gate

    Flush with interior reinforcement

  • Seat Plate

    Flat steel sheet, S235JR quality, with reinforcing ring and gussets

  • Forefront Diameter (d)

    60

  • Meter lenght (MxL) (m)

    M22X600

Regulation

  • Regulations

    EN 40-5

Logistics Information

  • Product net weight

    103 KGM

  • Product gross weight

    103 KGM

  • Product EAN

    8431715035810

  • Packaging net weight

    103
