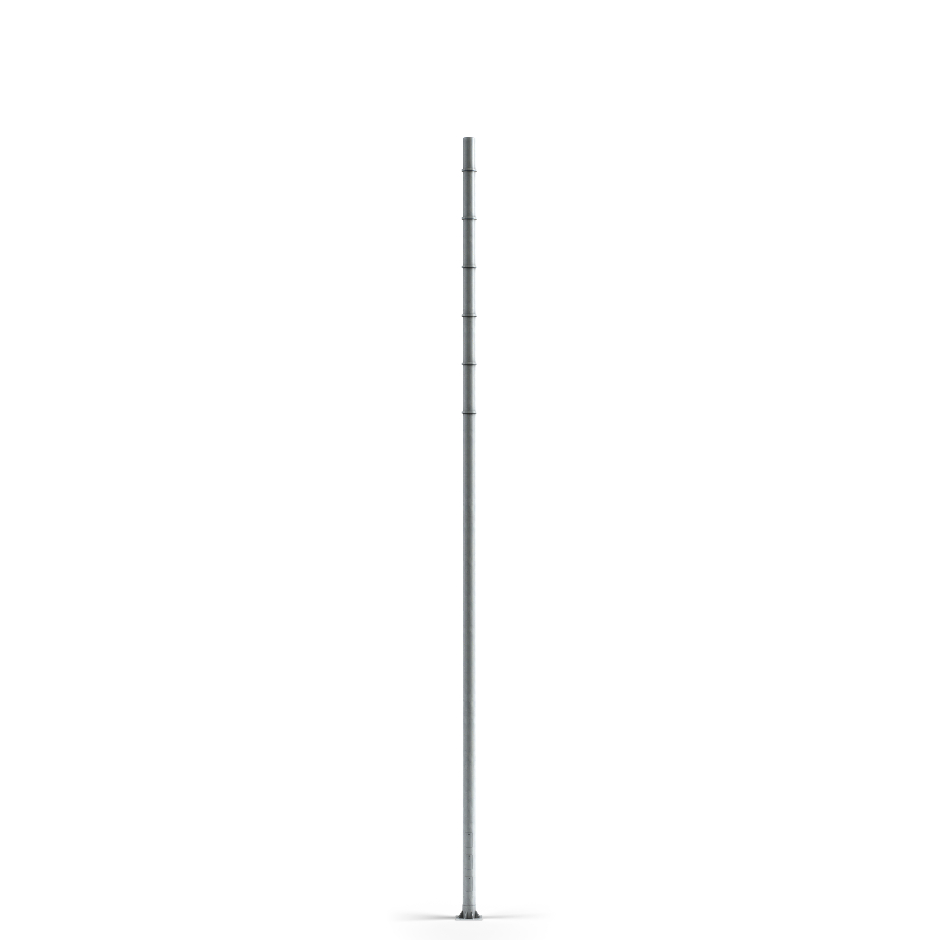

Simon Tower
Finish Shaft
Galvanized
Material Shaft
Carbon steel sheet, S235JR quality
Thickness
4
Distance between bolts (A)
350
Distance of the base-register door (z)
550
Height of support (H1)
6200
Height of support (H2)
7250
Height of support (H3)
8300
Register Door Height
300
Total Height (H)
9000
Width of the base
500
IP Rating
IP3X / IP44
Luminaire fixation
Lateral
Registration Gate
Flush with interior reinforcement
Seat Plate
Flat with reinforcing ring and gussets
Forefront Diameter (d)
219
Meter lenght (MxL) (m)
M24x800
Regulations
EN 40-5
Product net weight
255 KGM
Product gross weight
255 KGM
Packaging quantity
1
Packaging net weight
255 KGM
