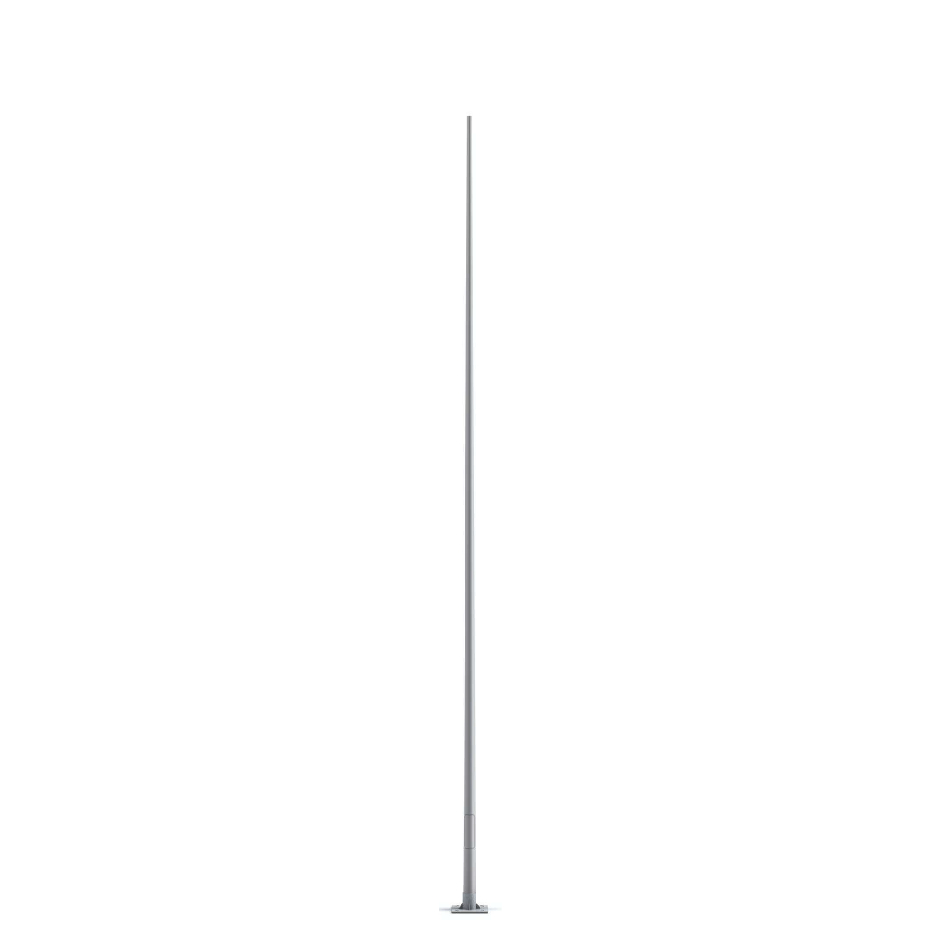

Simon CL0 functional pole, 7 m high, conical tapering and post top luminaire fixing, front view

Ref
S-553307

Simon CL0 functional pole, 7 m high, conical tapering, and post top luminaire fixing

Price/Unit
Price on request
Packaging quantity
1 Unit

Available downloads

Technical specifications
S-553307-datasheet-en.pdf
Do you need advice?
Outstanding Features
Series
Simon CL0
Series Compatibility

Simon CL0

<p class=>Simon CL1 functional pole, 6 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
S-583005
Simon CL1 functional pole, 6 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CL1 functional pole, 5 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
S-555412
Simon CL1 functional pole, 5 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CEU functional pole, 5 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
CEU05603
Simon CEU functional pole, 5 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CEU functional pole, 4 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
CEU04603
Simon CEU functional pole, 4 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CAM functional pole, 5 m high, conical tapering, and post top luminaire fixing, front view</p>
Ref
CAM05763M60
Simon CAM functional pole, 5 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CAM functional pole, 4 m high, conical tapering, and post top luminaire fixing, front view</p>
Ref
CAM04603
Simon CAM functional pole, 4 m high, conical tapering, and post top luminaire fixing
Product Information
Support
Basic information

  • Finish Shaft

    Galvanized

  • Material Shaft

    Carbon steel sheet, S235JR quality

Technical information

  • Thickness

    3

  • Distance between bolts (A)

    285

  • Distance of the base-register door (z)

    550

  • Register Door Height

    300

  • Total Height (H)

    7000

  • Width of the base

    400

  • IP Rating

    IP3X / IP44

  • Luminaire fixation

    post top

  • Registration Gate

    Flush with interior reinforcement

  • Seat Plate

    Flat with reinforcing ring and gussets

  • Forefront Diameter (d)

    60

  • Meter lenght (MxL) (m)

    M20x600

Regulation

  • Regulations

    EN 40-5

Logistics Information

  • Product volume

    0MMQ

  • Product net weight

    0KGM

  • Product gross weight

    0KGM

  • Product EAN

    8431715051551

  • Packaging quantity

    1

  • Packaging net weight

    0KGM

  • Packaging gross weight

    0KGM
