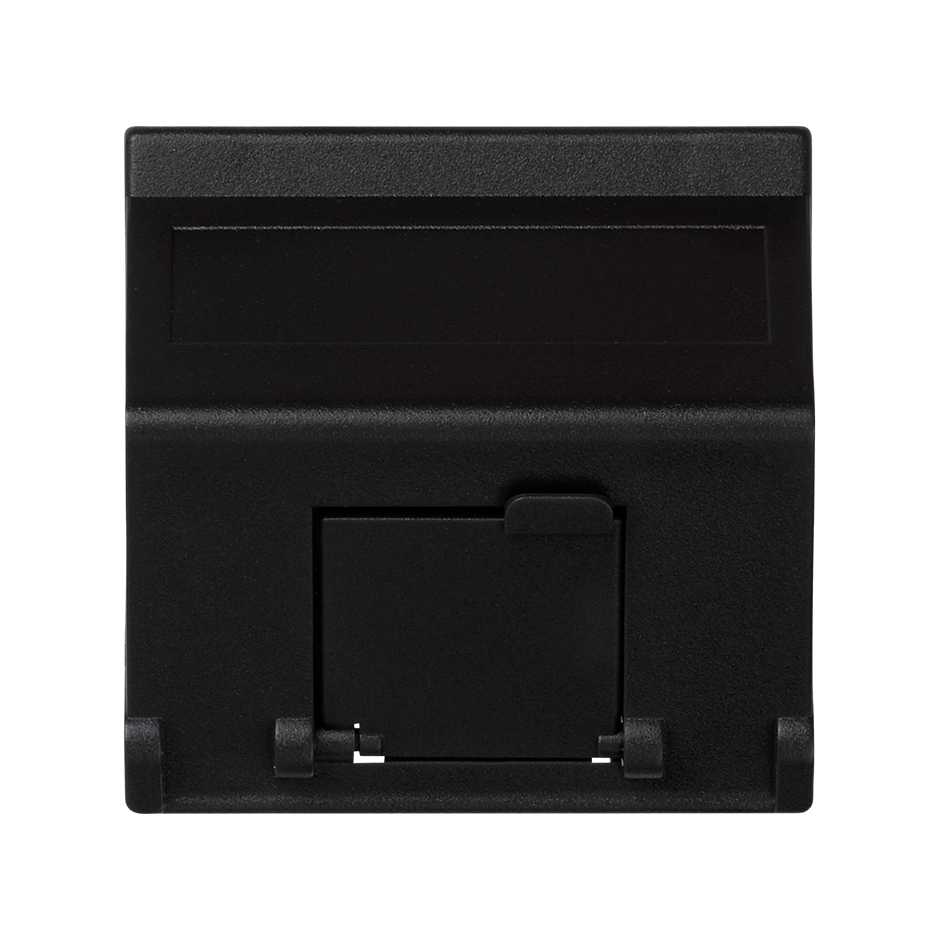

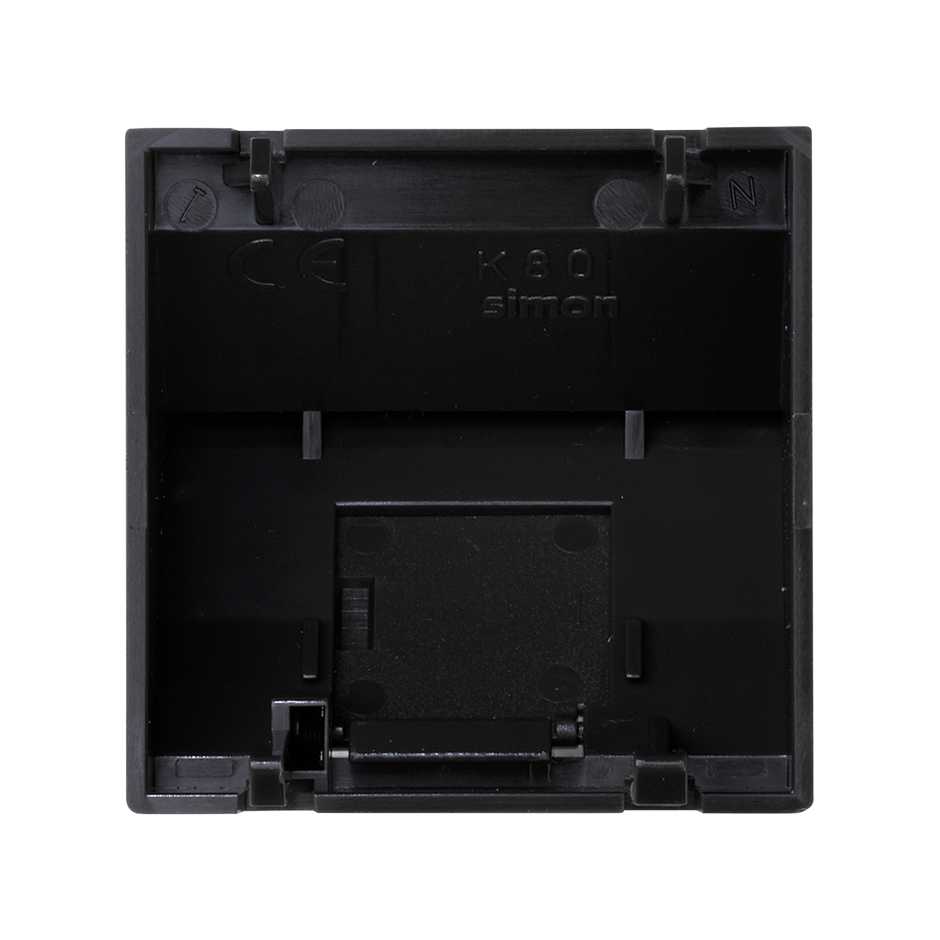

Voice and data angled plate with dust cover for 1 RJ45 connector Simon K45 graphite front view

This image represents the combined solution of different references

Voice and data angled plate with dust cover for 1 RJ45 connector Simon K45 graphite packaging

Voice and data angled plate with dust cover for 1 RJ45 connector Simon K45 graphite front view

This image represents the combined solution of different references

Voice and data angled plate with dust cover for 1 RJ45 connector Simon K45 graphite packaging

Ref
K80/14

Voice and data angled plate with dust cover for 1 element for 1 RJ45 connector graphite Simon K45

Price/Unit
Price on request
Packaging quantity
20 Units

Available downloads

Technical specifications
K80_14-datasheet-en.pdf
Product declaration

  1. UES0089.pdf [953KB]

Do you need advice?
Outstanding Features
Series
Simon K45
Series Compatibility

Simon K45

<p class=>MD module for 1 RJ45 3M Volition OCK® in angled voice and data plates front view</p>
Ref
MD45
Module for 1 RJ45 3M Volition OCK® in angled voice and data plates
<p class=>MD module for 1 RJ45 Systimax® (Avaya®) in angled voice and data plates front view</p>
Ref
MD63
Module for 1 RJ45 Systimax® (Avaya®) in angled voice and data plates
<p class=>MD module for 1 RJ45 Nexans® in angled voice and data plates front view</p>
Ref
MD85
Module for 1 RJ45 Nexans® in angled voice and data plates
<p class=>MD module for 1 RJ45 Panduit® in angled voice and data plates front view</p>
Ref
MD69
Module for 1 RJ45 Panduit® in angled voice and data plates
<p class=>MD module for 1 RJ45 R&M® in angled voice and data plates front view</p>
Ref
MD54
Module for 1 RJ45 R&M® in angled voice and data plates
<p class=>MD module for 1 RJ45 Corning® (Siemens®) in angled voice and data plates front view</p>
Ref
MD79
Module for 1 RJ45 Corning® (Siemens®) in angled voice and data plates
<p class=>MD module for 1 RJ45 BeldenCDT® (Nordx®) in angled voice and data plates front view</p>
Ref
MD68
Module for 1 RJ45 BeldenCDT® (Nordx®) in angled voice and data plates
<p class=>MD module for 1 RJ45 AMP®, Krone® or BeldenCDT® in angled voice and data plates front view</p>
Ref
MD64
Module for 1 Keystone I RJ45 AMP®, Krone® or BeldenCDT® in angled voice and data plates
<p class=>MD module for 1 RJ45 AMP®, Brand Rex® or Simon® in angled voice and data plates front view</p>
Ref
MD67
Module for 1 Keystone II RJ45 AMP®, Brand Rex® or Simon® in angled voice and data plates
Product Information
Downloads
Support

Plate of voice and data tilted plate with dust shutter of 1 element for 1 RJ45 connector, with a graphite finish, the piece is included in the Simon K45 series. It measures 45x45 mm and, in addition, it has a depth of 25 mm It is an article that, in compliance with the regulation, is suitable for surface and flush mounting and presents an exceptional resistance to high temperatures.

The plate is made of halogen-free thermoplastic, a material that, in fact, guarantees no flame spread in case of fire of a fire. The article can be combined perfectly in vertical enclosures, such as columns, Teleblock, channels mechanism-holders. In this case, would have to use the 90º positioner (reference K66) to keep the plate has vertically.

The plates of the collection Simon K45 is characterized by its compatibility 100% with any connector on the market.

Basic information

  • Compatibility

    Simon K45 enclosures for installation in the wall, floor, ceiling and furniture and Simon 500 Cima enclosures (need to be combined with the K45 to 500 Cima adaptor ref.50012088-038)

  • Remarks

    When combining the voice and data plate in vertical housings (mini columns, columns, Teleblock, channels, mechanism holders, etc.) you must use the 90º positioner (ref. K66) to guide the plate into a vertical position.

  • Finish

    Graphite

  • Packaging contents

    Inclined voice and data plate with dust cover

Technical information

  • Market available

    CE

  • RAL

    7021

  • Format

    RJ45

  • IP Rating

    IP20

  • Max temp during construction work (ºC)

    +60º C

  • Plate type

    Angled

  • RJ45 adaptor module

    Not included in voice and data plate

  • RJ45 connectors

    Not included in voice and data plate

  • Snap-fit RJ45 plates

    According to combined MD module

  • Snap-fit type

    According to combined MD module

  • Temperature range during installation (ºC)

    -5 to 60º C

  • Version

    Single

  • Depth (mm)

    25

Installation and maintenance

  • Installable in flush mount junction box

    Universal, specific Simon K45 and specific Simon 500 Cima using adaptor (ref.50012088-038)

  • Installation direction

    Vertical according to the direction of the mechanisms

  • Installation type

    Suitable for surface and flush mounting

  • Removal of the plate

    Only with tool

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2011/65/UE RoHS + EN 50173-1:2011 + EN 50581:2012 + IEC 60603-7-2 Ed 2.0*1 + IEC 60603-7-3 Ed 2.0*2 + IEC 60603-7-4 Ed 2.0*3 + IEC 60603-7-5 Ed 2.0*4

Logistics Information

  • Product volume

    73603MMQ

  • Product net weight

    0.012KGM

  • Product gross weight

    0.012KGM

  • Packaging quantity

    20

  • Packaging height

    88MMT

  • Packaging width

    123MMT

  • Packaging length

    136MMT

  • Packaging volume

    1472064MMQ

  • Packaging net weight

    0.24KGM

  • Packaging gross weight

    0.24KGM

  • Packaging EAN

    8426436022799
