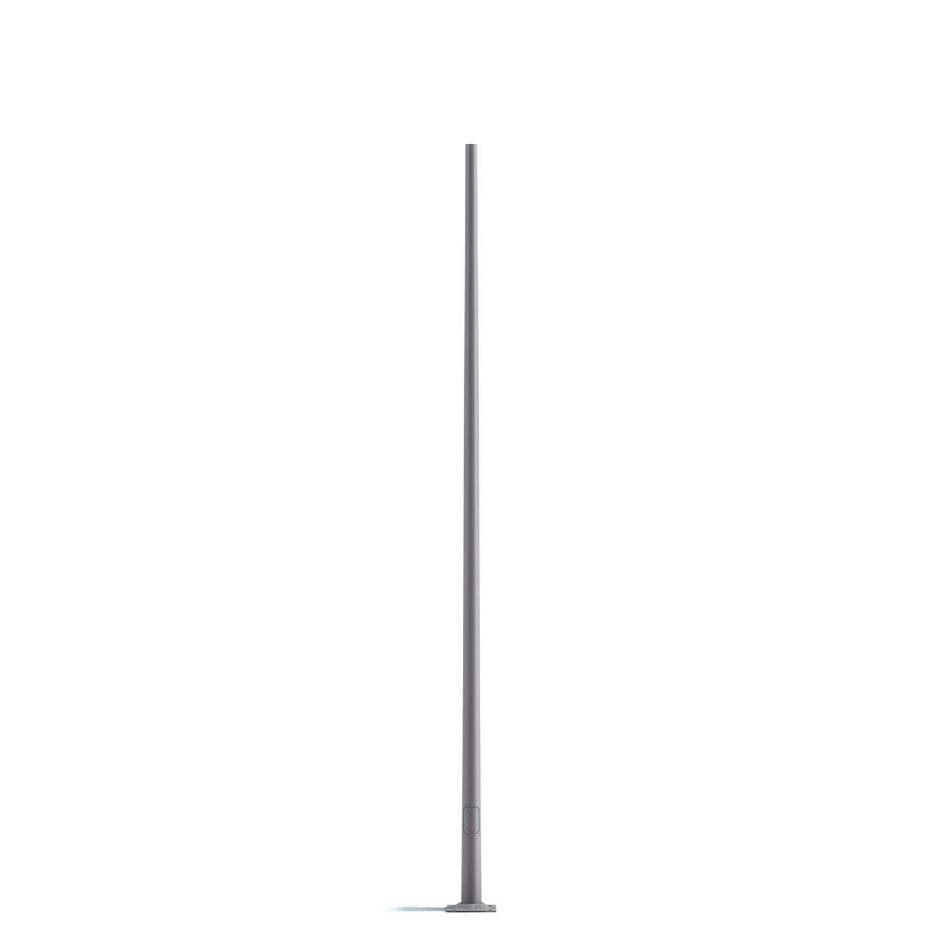

Simon CU functional pole, 3 m high, conical tapering and post top luminaire fixing, front view

Ref
CU30503

Simon CU functional pole, 3 m high, conical tapering, and post top luminaire fixing

Price/Unit
Price on request

Available downloads

Technical specifications
CU30503-datasheet-en.pdf
Do you need advice?
Outstanding Features
Series
Simon CU
Series Compatibility

Simon CU

<p class=>Simon CEU functional pole, 9 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
CEU09604
Simon CEU functional pole, 9 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CEU functional pole, 8 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
CEU08603
Simon CEU functional pole, 8 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CEU functional pole, 7 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
CEU07603
Simon CEU functional pole, 7 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CEU functional pole, 6 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
CEU06603
Simon CEU functional pole, 6 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CEU functional pole, 5 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
CEU05603
Simon CEU functional pole, 5 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CEU functional pole, 4 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
CEU04603
Simon CEU functional pole, 4 m high, conical tapering, and post top luminaire fixing
Product Information
Support
Basic information

  • Finish Shaft

    Galvanized

  • Hopper finish

    Post top luminaire fixing using Ø50 mm x 100 mm or Ø60 mm x 100 mm cylindrical terminal.

  • Material Shaft

    Carbon steel sheet, S235JR quality

Technical information

  • Thickness

    3

  • Distance between bolts (A)

    185

  • Distance of the base-register door (z)

    380

  • Register Door Height

    135

  • Total Height (H)

    3000

  • Width of the base

    250

  • IP Rating

    IP3X / IP44

  • Luminaire fixation

    post top

  • Registration Gate

    Overlapping tabs with interior reinforcement

  • Seat Plate

    Recessed

  • Forefront Diameter (d)

    50

  • Meter lenght (MxL) (m)

    M14x350

Regulation

  • Regulations

    EN 40-5

Logistics Information

  • Product net weight

    16KGM

  • Product gross weight

    16KGM

  • Packaging net weight

    16
