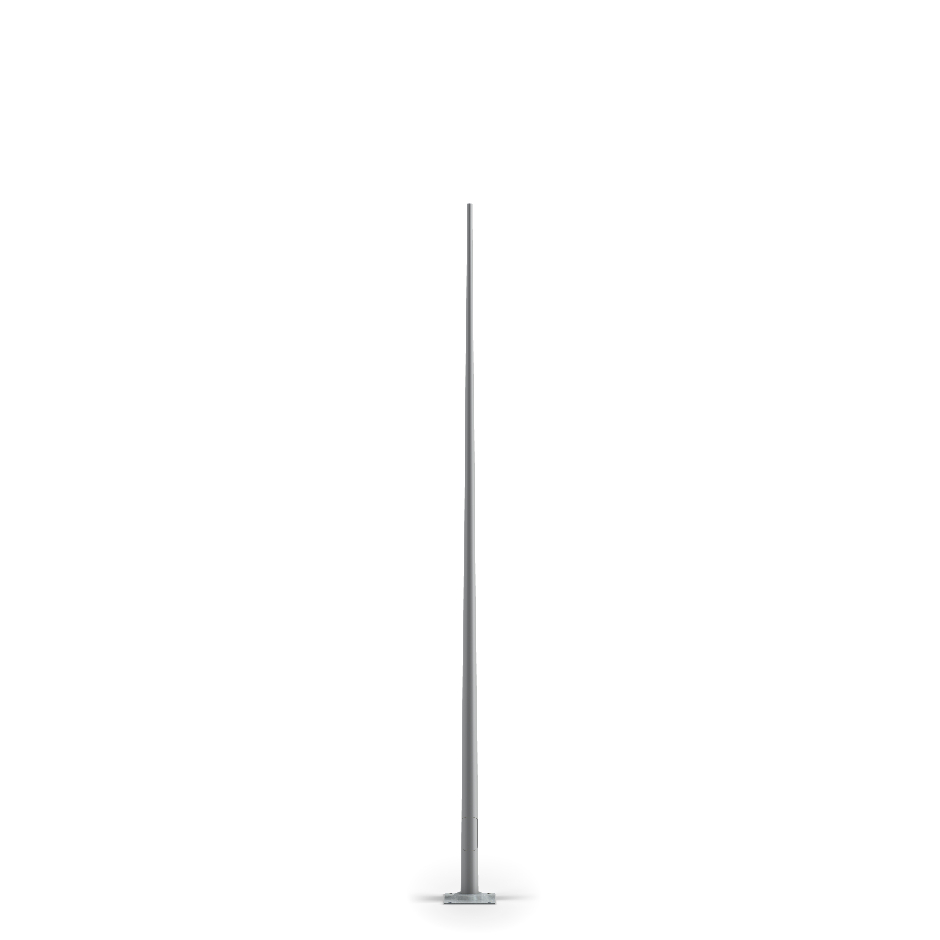

Simon CEU functional pole, 5 m high, conical tapering and post top luminaire fixing, front view

Ref
CEU05603

Simon CEU functional pole, 5 m high, conical tapering, and post top luminaire fixing

Price/Unit
Price on request

Available downloads

Technical specifications
CEU05603-datasheet-en.pdf
Do you need advice?
Outstanding Features
Series
Simon CEU
Series Compatibility

Simon CEU

<p class=>Simon CL1 functional pole, 6 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
S-583005
Simon CL1 functional pole, 6 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CL1 functional pole, 5 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
S-555412
Simon CL1 functional pole, 5 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CL0 functional pole, 4 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
S-553304
Simon CL0 functional pole, 4 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CL0 functional pole, 3.5 m high, conical tapering and post top luminaire fixing, front view</p>
Ref
S-553335
Simon CL0 functional pole, 3.5 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CAM functional pole, 5 m high, conical tapering, and post top luminaire fixing, front view</p>
Ref
CAM05763M60
Simon CAM functional pole, 5 m high, conical tapering, and post top luminaire fixing
<p class=>Simon CAM functional pole, 4 m high, conical tapering, and post top luminaire fixing, front view</p>
Ref
CAM04603
Simon CAM functional pole, 4 m high, conical tapering, and post top luminaire fixing
Product Information
Support
Basic information

  • Finish Shaft

    Galvanized

  • Material Shaft

    Carbon steel sheet, S235JR quality

Technical information

  • Thickness

    3

  • Distance between bolts (A)

    215

  • Distance of the base-register door (z)

    550

  • Register Door Height

    300

  • Total Height (H)

    5000

  • Width of the base

    300

  • IP Rating

    IP3X / IP44

  • Luminaire fixation

    post top

  • Registration Gate

    Flush with interior reinforcement

  • Seat Plate

    Recessed

  • Forefront Diameter (d)

    60

  • Meter lenght (MxL) (m)

    M16x500

Regulation

  • Regulations

    EN 40-5

Logistics Information

  • Product net weight

    37KGM

  • Product gross weight

    37KGM

  • Packaging net weight

    37
