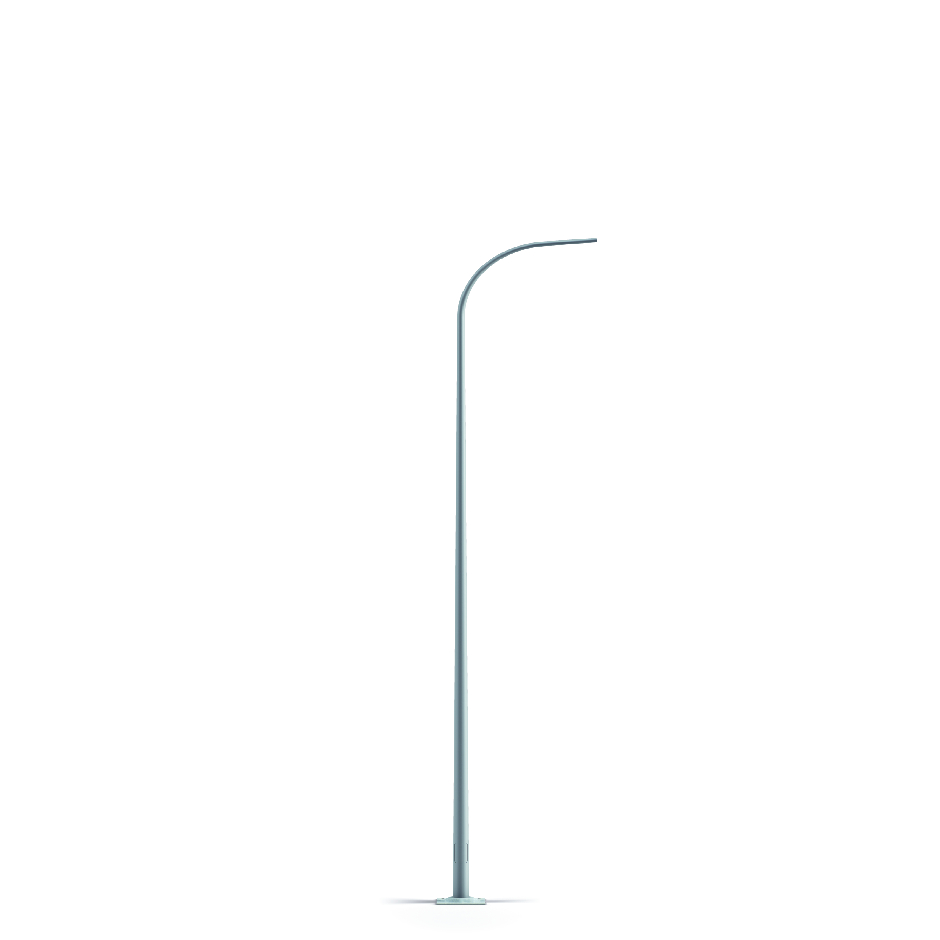

Simon BEU
Finish Shaft
Galvanized
Material Shaft
Carbon steel sheet, S235JR quality
Thickness
3
Curvature Distance
1500
Distance between bolts (A)
285
Distance of the base-register door (z)
550
Inclination
1500
Register Door Height
300
Total Height (H)
6000
Width of the base
400
IP Rating
IP3X / IP44
Luminaire fixation
post top
Registration Gate
Flush with interior reinforcement
Seat Plate
Flat steel sheet, S235JR quality
Forefront Diameter (d)
60
Meter lenght (MxL) (m)
M20x500
Regulations
EN 40-5
