ARCH Trimless Round White front view

ARCH Trimless Round White front view

ARCH Composition trimless round in white

ARCH Composition trimless round in white

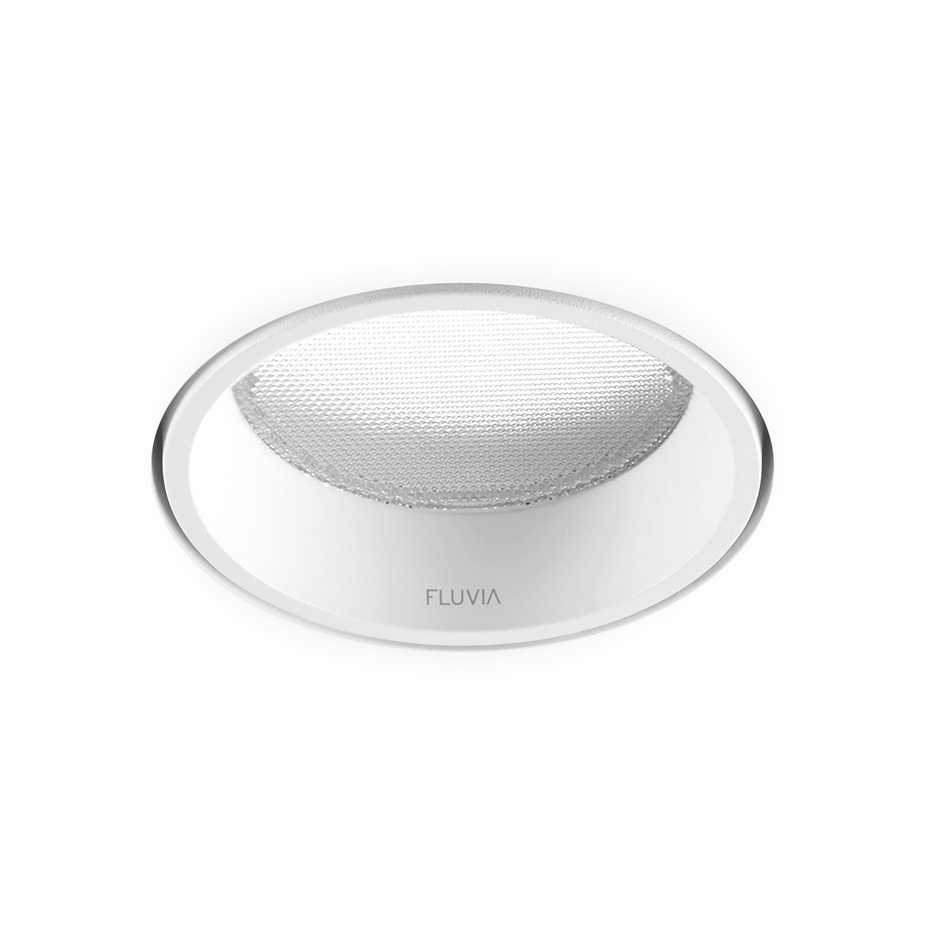

ARCH Downlight Trimless Round 4000 K Spot White

Packaging quantity
1 Unit
Outstanding Features
Simon Arch
ARCH Trimless
Josep Lluscà
Series Compatibility

Simon Arch

Basic information
  • Lighting Description

    Downlight that can be rotated 360° horizontally and 25° vertically. Circular format from SIMON's ARCH family with stable colour temperature of 4000 K, optimised for effective general or accent lighting in commercial spaces, window dressing and other interior spaces, with an innovative thermal balance using passive cooling. Designed for trimless installation using SIMON's X-Less accessory. The body of the luminaire is manufactured using aluminium injection moulding with finishes in white SIMON RAL 9016. Its optical group is IP20 in its visible part. The luminaire consists of an aluminium body, optics especially developed for ARCH and a diffuser with a characteristic design, and so it stands out in the market in terms of aesthetics and quality. Aperture angle of 20° and uses a 9 W LED light source. The lamp with a colour temperature of 4000 K with CRI>80 is included. Control gear not included.

  • Concept Indoor Family

    Arch is simplicity and elegance. Exciting lines, with a circle or a square of light. Arch can form part of a group and is directional; this luminaire can be flush-mounted, surface-mounted or trimless. Arch is suitable for general lighting or for highlighting a space.

  • Model

    ARCH Trimless

  • Designer

    Josep Lluscà

  • Application

    Contract , Domestic , Hotel , Office , Retail

  • Body material

    Die-cast aluminium

  • Packaging contents

    1 Unit

  • Packaging dimensions (mm)

    116x224x171 mm

Technical information
  • RAL


  • Frequency (Hz)

    50 - 60 Hz

  • IP Rating

    IP20 / IP43

  • Operating temperature range (ºC)

    0 - 35 ºC

  • Power supply (V~)

    110/240 V~

  • Dimensions (mm)

    107(ø) x 95

  • Orientation degrees (ºC)

    Horizontal 360º, Vertical 25º

  • Weight (kg)


Lighting Information
  • CRI


  • Number of luminaires


  • Colour temperature (k)

    4000 K

  • Colour type


  • Electrical class


  • Energy efficiency


  • L70 (ºC)

    100000h at 25ºC

  • L90 (ºC)

    30000h at 25ºC

  • Lighting efficiency (lm/w)

    111 lm/W

  • Lúmenes (lm)

    1000 lm

  • MacAdam steps

    <3 Step MacAdam

  • Optics

    Spot 20º

  • Photobiological classification

    Class II

  • Potency factor (ϕ)

    > 0,9

  • Power (W)

    9 W

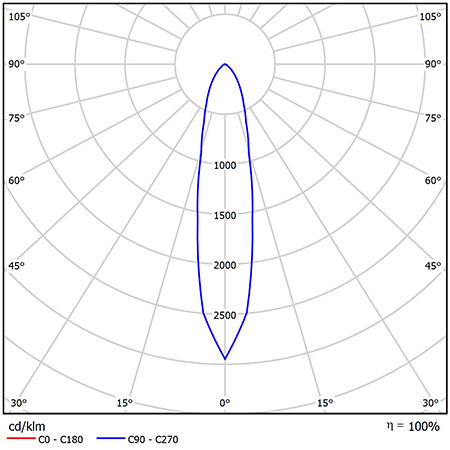

  • Photometry – Polar

Installation and maintenance
  • Installation alternatives

    Flush-mounted, Surface-mounted

  • Installation type


  • Guarantee

    5 years

Logistics Information
  • Product net weight

    0.9 KGM

  • Packaging quantity


  • Packaging height

    116 MMT

  • Packaging width

    171 MMT

  • Packaging length

    224 MMT

  • Packaging volume

    4528125 MMQ

  • Packaging net weight

    0.9 KGM

  • Packaging gross weight

    0.99 KGM

  • Packaging EAN
