Ref
91302118-288

LANE 2400 linear luminaire 1-10 V LO Surface-mounted 2700 K Batwing Black

Price/Unit
€866.25
Packaging quantity
1 Unit
Outstanding Features
Series
Simon Lane
Model
LO
Designer
Simon
Series Compatibility

Simon Lane

Basic information
  • Lighting Description

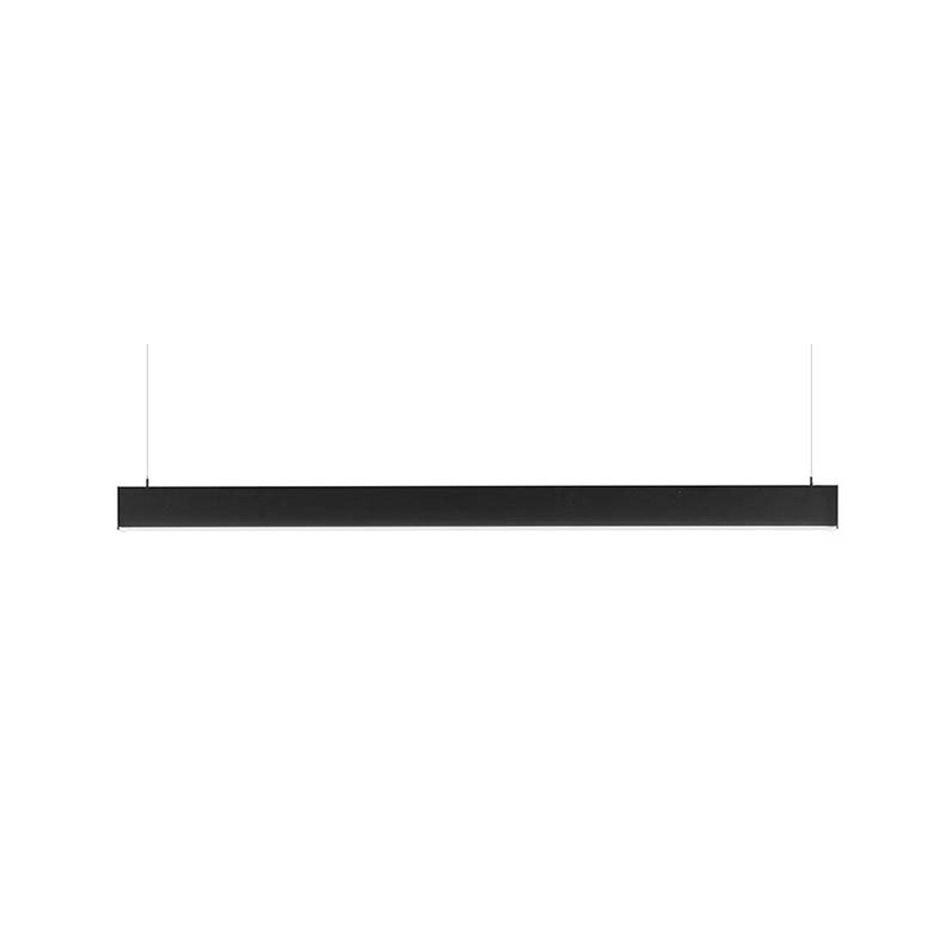

    Luminaire from SIMON's LANE family with stable colour temperature of 2700 K, which can be adapted to all kinds of spaces with minimum visual impact, blending into environments that need both diffuse and directed light. Its design combines reflectors and high transmittance PMMA diffusers for illumination with a continuous line of light. The intensity of the light can be adjusted to adapt to any situation. Batwing optics of 105°. The body of the luminaire is manufactured in aluminium with finishes in black RAL 9005. Its optical group is IP20 in its visible part. Uses a 50 W LED light source. The luminaire offers CRI>90 and 1-10 V electronic auxiliary control gear is built into it, powered by a mains voltage of: 100-240 V; 50/60 Hz Surface-mounted installation. Suspended installation requires accessory. Light section of 2.4 metres. LO model.

  • Concept Indoor Family

    Lane is homogeneous light. Lane is a collection of pure geometric shapes and its neutral form is suitable for all kinds of spaces. It can blend into the space or decorate it. Lane offers several optics providing a great variety of visual sensations. It inspires and creates lines of light to define the atmosphere of a space.

  • Model

    LO

  • Designer

    Simon

  • Application

    Contract , Domestic , Office , Retail

  • Body material

    Aluminium

  • Packaging contents

    1 Unit

Technical information
  • RAL

    9005

  • Frequency (Hz)

    50 - 60 Hz

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    0 - 35 ºC

  • Power supply (V~)

    220/240 V~

  • Dimensions (mm)

    2400 x 63 x 72

  • Weight (kg)

    4.5

Lighting Information
  • CRI

    90

  • Number of luminaires

    1

  • Colour temperature (k)

    2700 K

  • Colour type

    WW

  • Control

    1-10 V

  • Electrical class

    I

  • Energy efficiency

    A+

  • L70 (ºC)

    100000h at 25ºC

  • L90 (ºC)

    30000h at 25ºC

  • Light beam aperture angle (ºC)

    105º

  • Lighting efficiency (lm/w)

    hasta 97 lm/W

  • Lúmenes (lm)

    3800 lm

  • MacAdam steps

    <3 Step MacAdam

  • Optics

    Batwing 105º

  • Potency factor (ϕ)

    >0,9

  • Power (W)

    50 W

Installation and maintenance
  • Installation type

    Surface-mounted/Suspended

Regulation
  • Guarantee

    5 years

Logistics Information
  • Product net weight

    4.5 KGM

  • Packaging quantity

    1

  • Packaging height

    80 MMT

  • Packaging width

    84 MMT

  • Packaging length

    2400 MMT

  • Packaging volume

    16128000 MMQ

  • Packaging net weight

    4.5 KGM

  • Packaging gross weight

    4.95 KGM

  • Packaging EAN

    8436547046195
