Light-level sensor 1-10V stand-alone

REFERENCE NO.: 89000400-039
R.P.: Price on request
PACKAGING: 1Unit
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Scena
Type:  Brightness and presence sensor
Basic characteristics:  Dimming of 1-10V luminaires according to the brightness perceived by the sensor.
Programming:  Stand-alone operation, configurable presence and brightness control modes.
Type of mechanism:  Stand-alone

TECHNICAL INFORMATION

Power supply:  100-230 V~
Off timer setting:  Yes
Push button input for control without console:  Yes
Contents:  Power source, light-level sensor, detection zone limiter and instructions
IP rating:  20
Type of product:  Standard
Market available:  CE
Remarks:  Brightness range 20-600 Lx.

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + Directive 2014/30/UE EMC + Directive 2011/65/UE RoHS + + EN 50581:2012 + EN 60669-2-5:2016

INSTALLATION AND MAINTENANCE

Installation type:  False ceiling
Power cable section:  1.5 mm
Operating temperature range:  0 ºC to 45 ºC
Storage temperature range:  0 ºC to 45 ºC

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  1
Box measurement unit:  MM
Height:  38.000
Wide:  105.000
Depth:  120.000
Box volume:  0.479
Box volume measurement unit:  CDM
Net weight of box:  0.150
Gross weight of box:  0.000
Unit weight of box:  KGM
EAN code:  8421053130087
Available in multiple box:  No
Available on pallet:  No

GALLERY


Sensor application in El Estudiante bar and restaurant, Madrid


Sensor application in restaurant of Hotel Gorraiz, Pamplona


Module application in projection room of Hotel Condes de Barcelona, Barcelona


Module application in reception area of Germaine de Capuccini beauty centre, Madrid

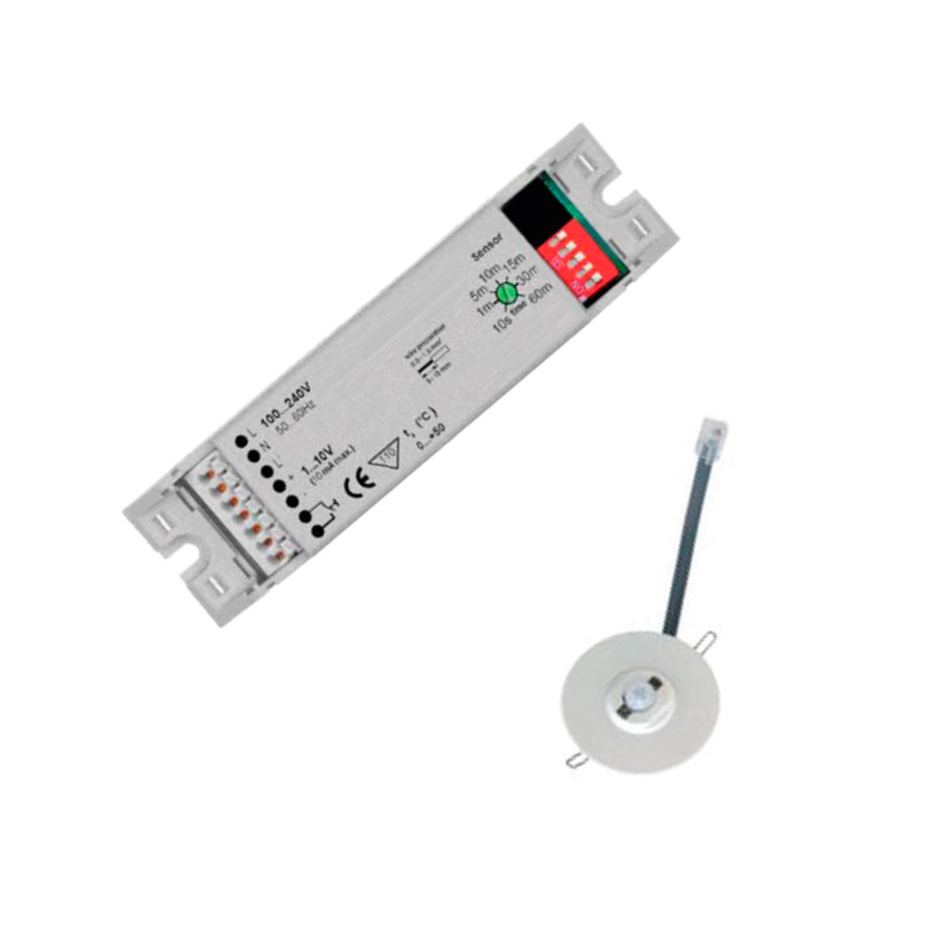

Light-level sensor 1-10V front view
