Electronic switch/2-way switch module (ON/OFF) of up to 2300W

Electronic switch/2-way switch module (ON/OFF) of up to 2300W

REFERENCE NO.: 89000201-039

R.P.: Price on request

PACKAGING: 1Unit

Variables de unidades de obras ---> -false-false

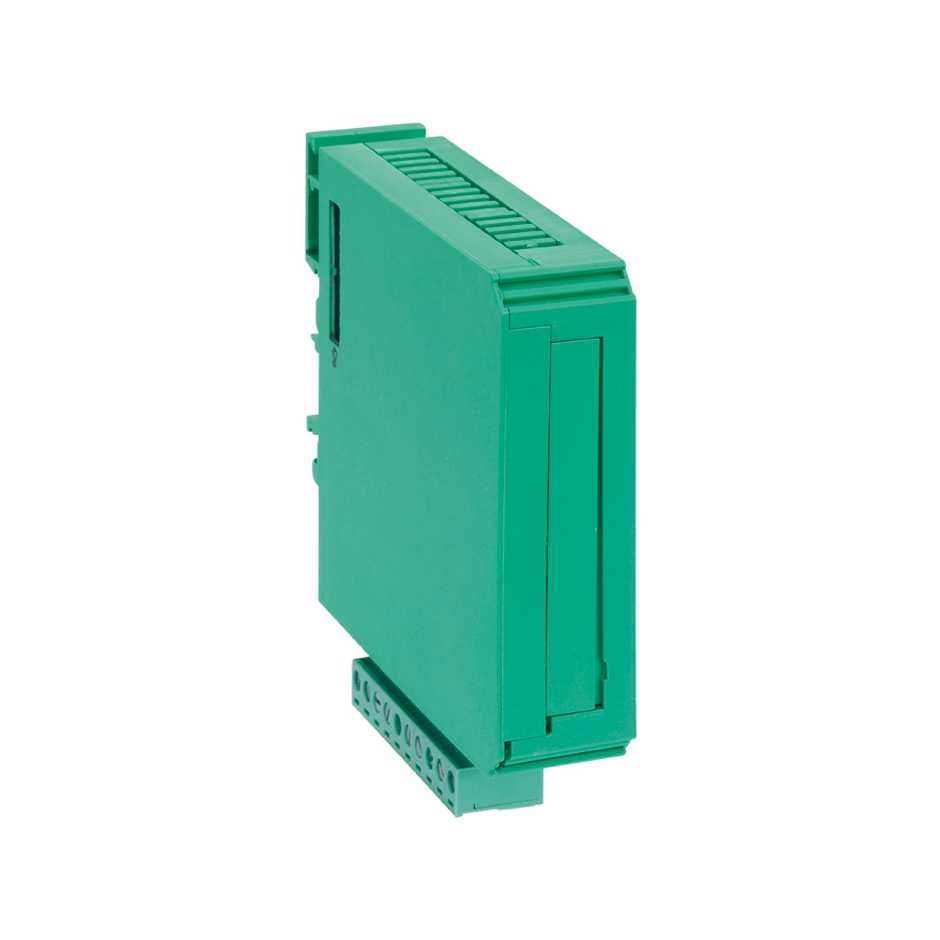

Switch/2-way switch module side view


SERIES: Scena TYPE: Power module OPERATION: On/Off COMPATIBILITY: Any load (110V or 230V) MAXIMUM NUMBER OF CHANNELS: 1 COMPATIBLE FUNCTION: Scena. Console, keypads, power module and signal converters

89000110-030

89000110-038

89000152-030

89000152-038

89000202-039

89000203-039

Product description

The Module switch - 2-way switch gear with operation ON / OFF of up to 2300 W of the series Simon Scena has a typology of module of power, with maximum power is depending on the type of load and it has an auxiliary input for push-button switch, being the DIN rail the direction of installation, its wire section of 1.5 mm and its power of 127-230 V ~. The mechanism of this module allows you to program the on and off switching (On-Off) and disable the trunking, having a detailed frequency 50 - 60 Hz and a range of power of 0-2300 W. It, you can operate as a stand-alone switch to Scena thanks to its auxiliary input, which increases the possibilities of use in the installations of electrical and electronic systems. All at an affordable price for all types of budgets.

BASIC INFORMATION

Series: Scena

Type: Power module

Basic characteristics: Supplies an ON-OFF signal of up to 230V. Maximum power depending on the type of load, with push-button auxiliary input.

Programming: Allows you to schedule On/Off and to block the channel.

Type of mechanism: With Scena and/or auxiliary input in stand-alone mode

TECHNICAL INFORMATION

Power supply: 127-230 V~

Frequency: 50 - 60 Hz

Consumption information: 1

On and off ramp times: Yes

Adjustment of dimming limits: Yes

Off timer setting: Yes

Push button input for control without console: Yes

Possibility of blocking module: Yes

Contents: Electronic circuit breaker/switch module and instructions

Power range: 0-2300 W

Maximum power incandescent and halogens at 230 V: 2300 W

Maximum power halogens with electromagnetic transformer: 650 VA

Fluorescent maximum power range: 520 VA

LED and low consumption maximum power range: 200 W

IP rating: 20

Type of product: Standard

Market available: CE

Remarks: Can function as an independent switch for Scena because of its auxiliary input.

REGULATIONS

Regulations: UNE-EN 50491-3:2010 + 2004/108/CE + 2006/95/CE

INSTALLATION AND MAINTENANCE

Installation type: DIN rail or false ceiling.

Power cable section: 1.5 mm

Cable characteristics data: Multicore AWG 24; 2 shielded twisted pairs with impedance of 120 Ohms

Installation direction: DIN rail

Operating temperature range: 0 ºC to 45 ºC

Storage temperature range: 0 ºC to 45 ºC

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 1

Box measurement unit: MM

Height: 40.000

Wide: 110.000

Depth: 120.000

Box volume: 0.528

Box volume measurement unit: CDM

Net weight of box: 0.126

Gross weight of box: 0.000

Unit weight of box: KGM

EAN code: 8421053096468

Available in multiple box: No

Available on pallet: No

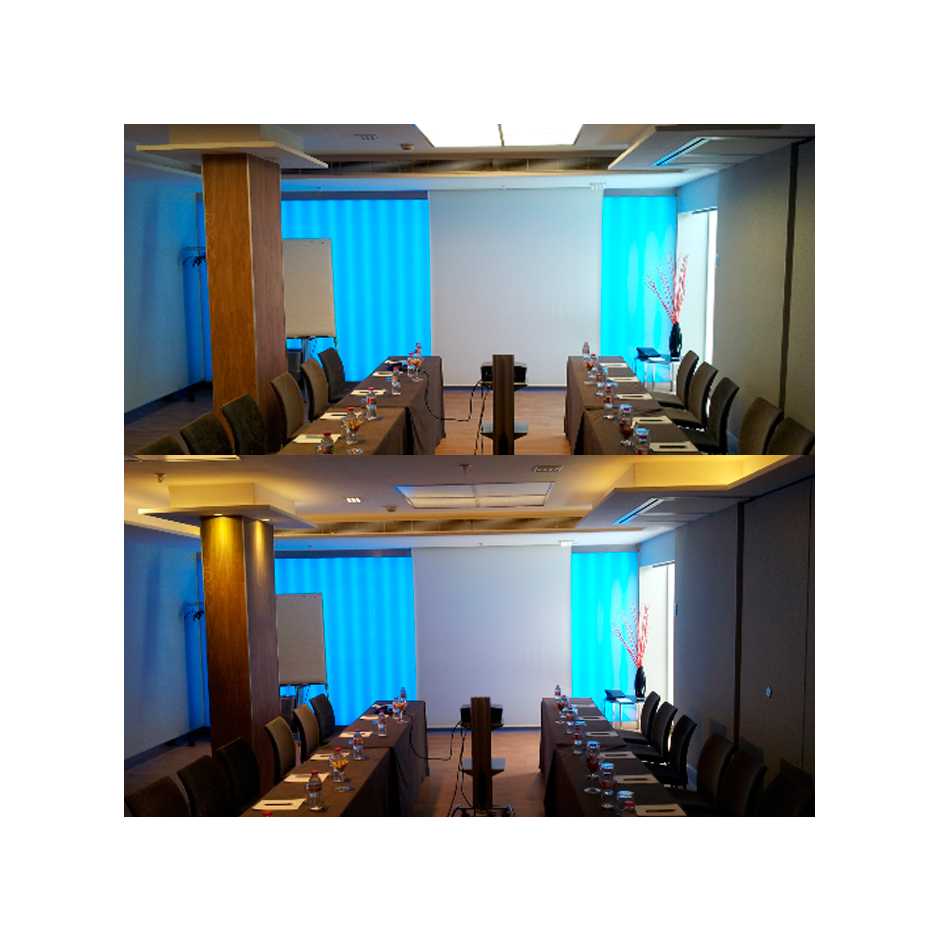

Module application in meeting room of Hotel Condes de Barcelona, Barcelona

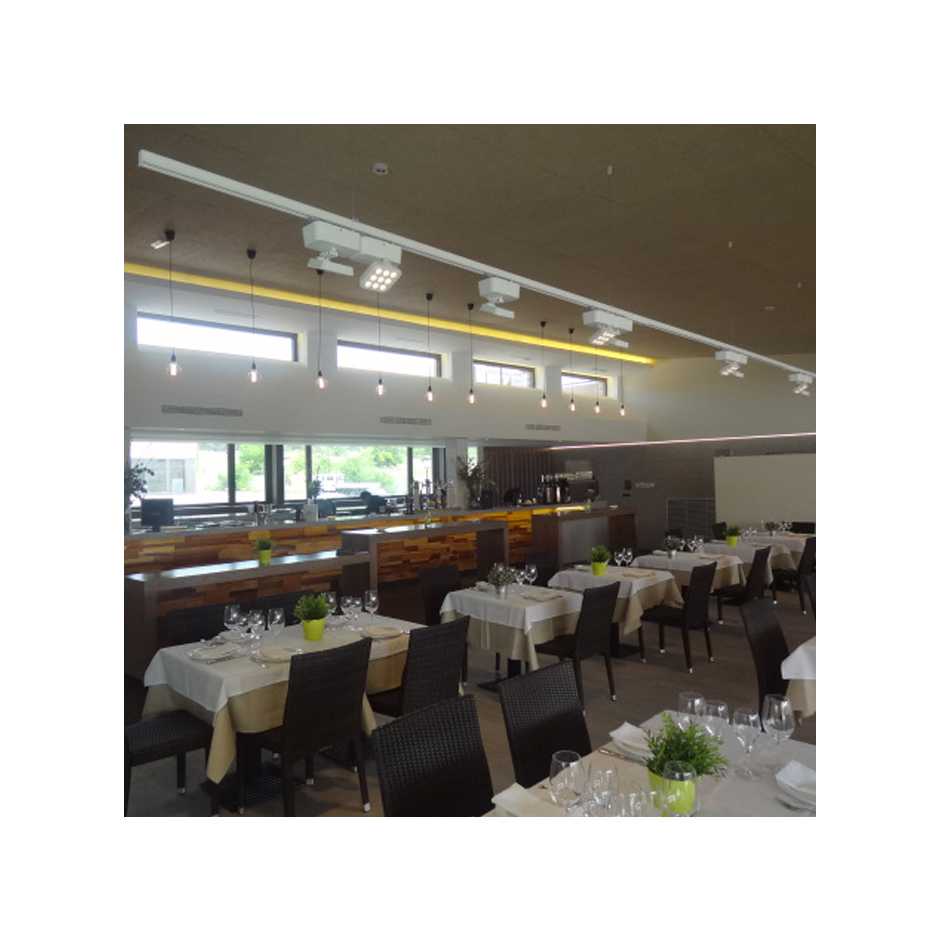

Module application in restaurant of Hotel Gorraiz, Pamplona

Module application in El Estudiante bar and restaurant, Madrid

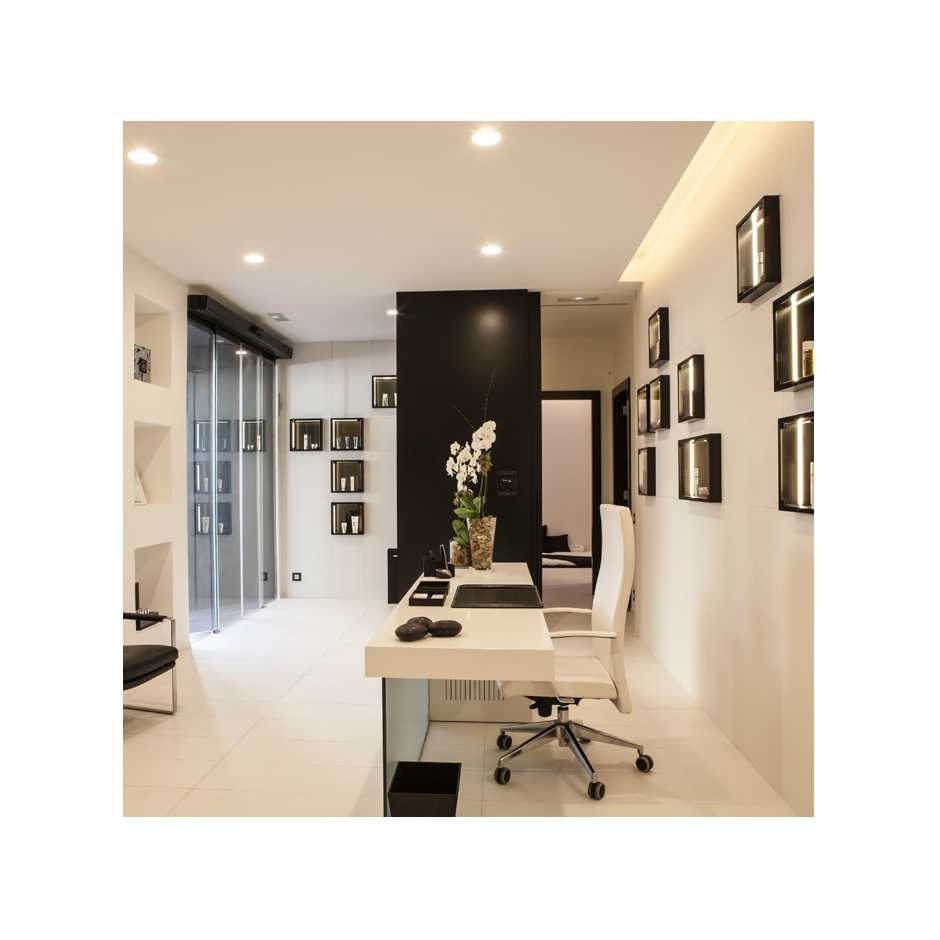

Module application in reception area of Germaine de Capuccini beauty centre, Madrid
