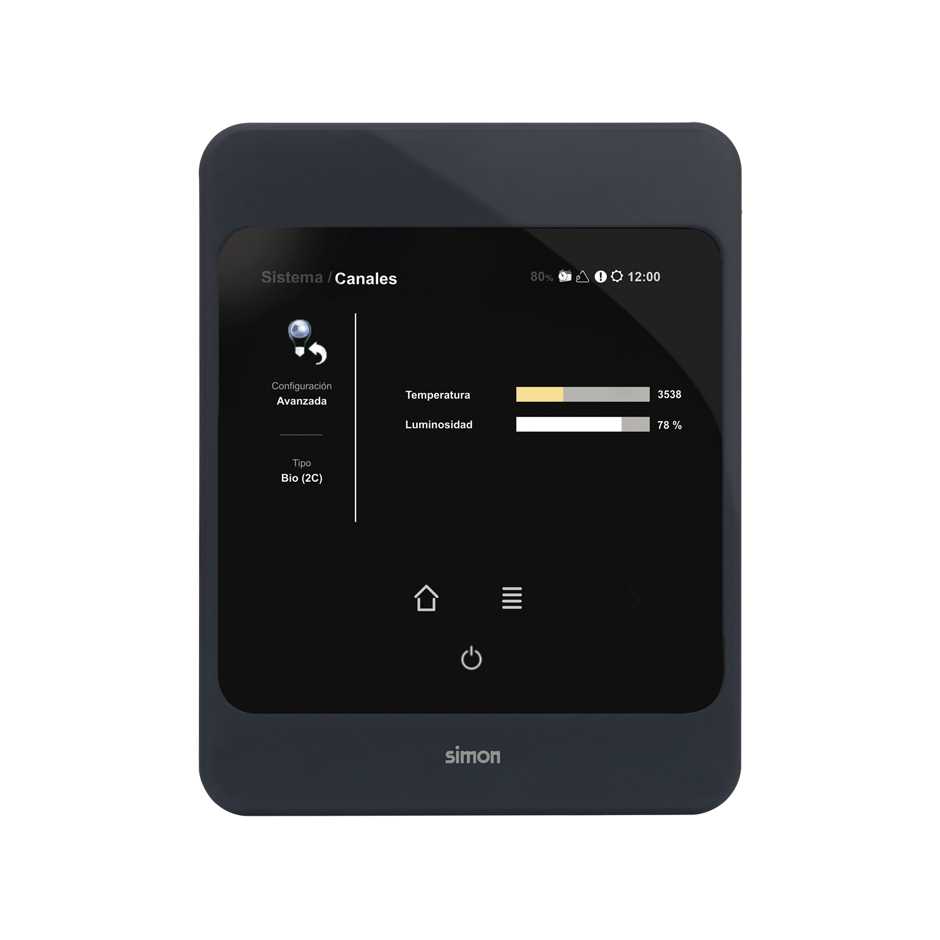

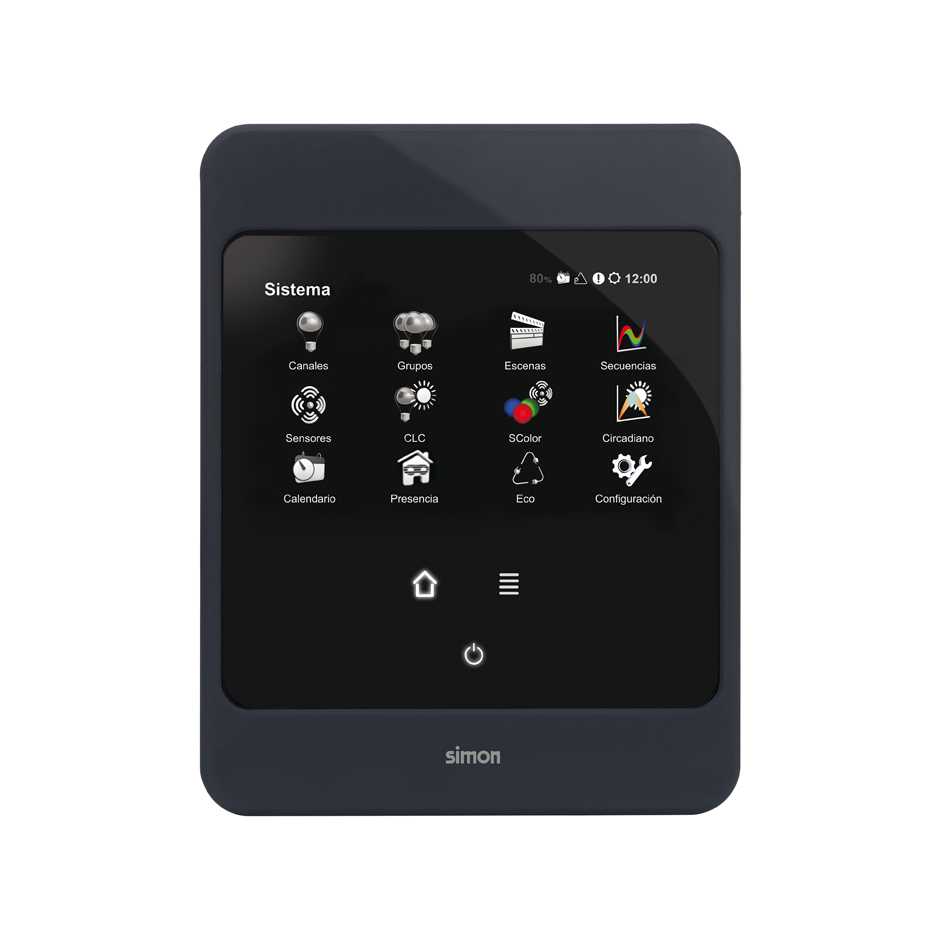

Console for lighting control Touch LightManager Advance graphite Simon Scena

Console for lighting control Touch LightManager Advance, finished in graphite colour and belonging to the series Simon Scena.

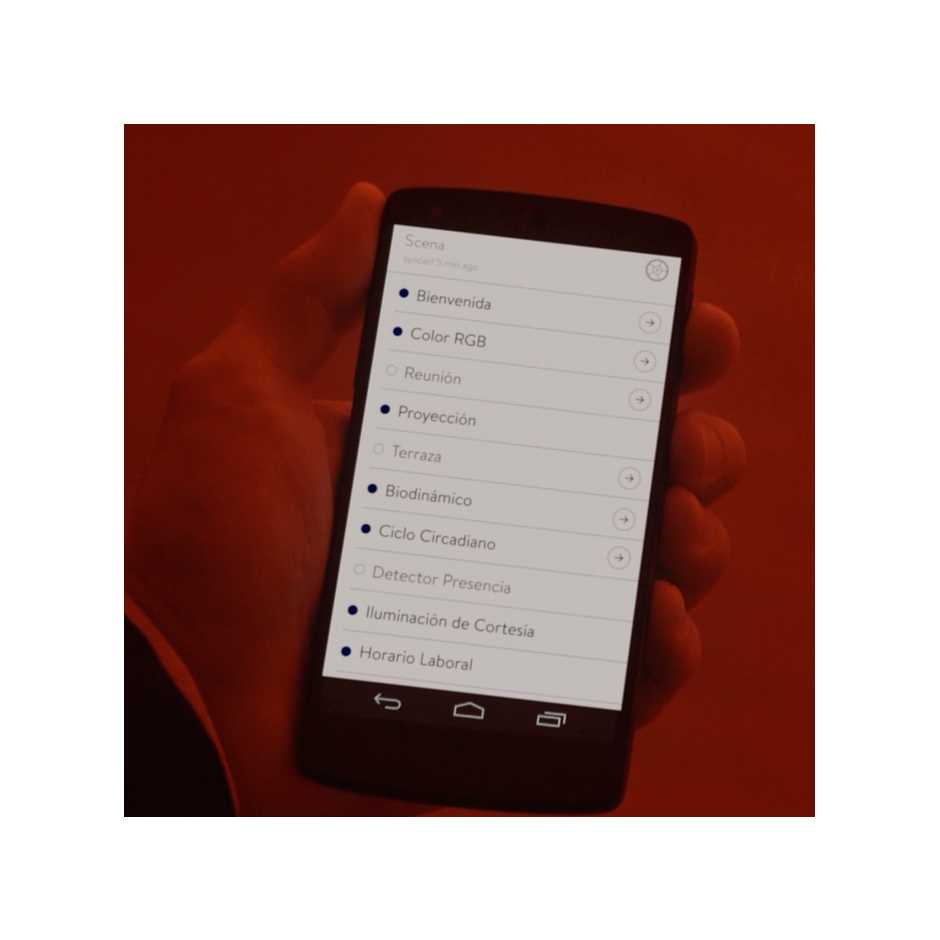

It works by programming and for use and supports a maximum number of channels of 512. This console, allows you to program and control all the elements of the system and is a version compatible with the Simon Scena app. Programming is done by entirely on the Touch LightManager console without the need for a PC.

It offers a control of all types of luminaires (LED, halogens, fluorescents) and communication protocols (DMX, 1-10 V, DALI, PWM).

It is fed through a power 100-230 V and features a frequency detailed 50-60 Hz.

The functions of the USB port are the following: Update firmware, load and save programs and make customizable logo.

Requires flush mounted box 89000990-039 reference and complies with the European standards and regulations UNE -s 50491-3: 2010 + 2004 / 108 / CE + 2006 / 95 / EC.

Must be installed vertically, in a place with a temperature range between 0 to 45ºC and to clean it, just need to wipe it with a soft cloth slightly moistened in soapy water.
