Touch LightManager Advance console for lighting control white Simon Scena

REFERENCE NO.: 89000110-030
R.P.: Price on request
PACKAGING: 1 Unit
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Scena
Type:  Central console
Basic characteristics:  Allows scheduling and control of all system elements; version compatible with the Simon Scena App.
Use:  Fast and user-friendly with multiple interfaces, Touch LightManager display, App Simon Scena or optional keypad.
Universal:  Control of all types of luminaires (LED, halogen, fluorescent…) and communication protocols (DMX, 1-10V, DALI, PWM)
Programming:  Done entirely on the Touch LightManager console without the need for a PC; compatible with the Simon Scena App.
Type of mechanism:  Touch screen, simple and user-friendly menu browsing
Emotional functions:  Regulation of luminaire colour, Biodynamic, regulation of colour temperature, Lighting scenes, Sequences and Scolor.
Rational functions:  Control of luminaires and blinds, Groups, Constant light control, Timetables, Circadian cycle, Consumption management, Sensors and detectors.
Finish:  White

TECHNICAL INFORMATION

Power supply:  100-230 V~
Frequency:  50 - 60 Hz
Contents:  Touch LightManager, end-of-line resistor, frame holder and instructions
System channels:  512
System keypads:  50
System groups:  50
System scenes:  100+12 (predefined)
System sequences:  20+6 (predefined)
System sensors:  20
System CLCs:  10
ECO:  1
Presence simulation:  Yes
System schedules:  20
System warnings:  9
System scolour:  20
System folders:  12
Permits:  Yes
Direct access points:  36
Circadian cycle:  Yes
Languages menu:  Spanish, Catalan, English, Portuguese, French, Chinese, Italian, Polish, Russian and Turkish.
USB port functions:  Update firmware, load/save programmes and customisable logo.
Automatic time change:  Yes
Customisable logo:  Yes
Firmware update:  Yes
Load/Save programming:  Yes
Access to functions limit:  Yes
IP rating:  20
Type of product:  Standard
Market available:  CE
Remarks:  Requires flush-mount box ref 89000990-039.

REGULATIONS

Regulations:  UNE-EN 50491-3:2010 + 2004/108/CE + 2006/95/CE

INSTALLATION AND MAINTENANCE

Installation type:  Semi-flush mount.
Power cable section:  1.5 mm
Cable characteristics data:  Multicore AWG 24; 2 shielded twisted pairs with impedance of 120 Ohms
Installation direction:  Vertical
Installable in flush mount junction box:  Specific
Operating temperature range:  0 ºC to 45 ºC
Storage temperature range:  0 ºC to 45 ºC
Maintenance:  Use a soft cloth slightly dampened with soapy water. Do not use abrasive cloths or cleaning products that contain chlorine.
Communications or power failure alerts:  Yes

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  1
Box measurement unit:  MM
Height:  77.000
Wide:  196.000
Depth:  251.000
Box volume:  2.947
Box volume measurement unit:  CDM
Net weight of box:  0.610
Gross weight of box:  0.000
Unit weight of box:  KGM
EAN code:  8421053125281
Available in multiple box:  No
Available on pallet:  No

GALLERY


Console application on façade of Hotel Garbi Ibiza & Spa

aplicacion-conversor dmx-pwm.jpg

Console application in multi-function room Hotel Comptes de Barcelona, Barcelona


Console application in CAT room of Hospital Clínic, Barcelona


Console application in restaurant of Hotel Gorraiz, Pamplona


Console application in natural birthing room Hospital la Maternitat, Barcelona

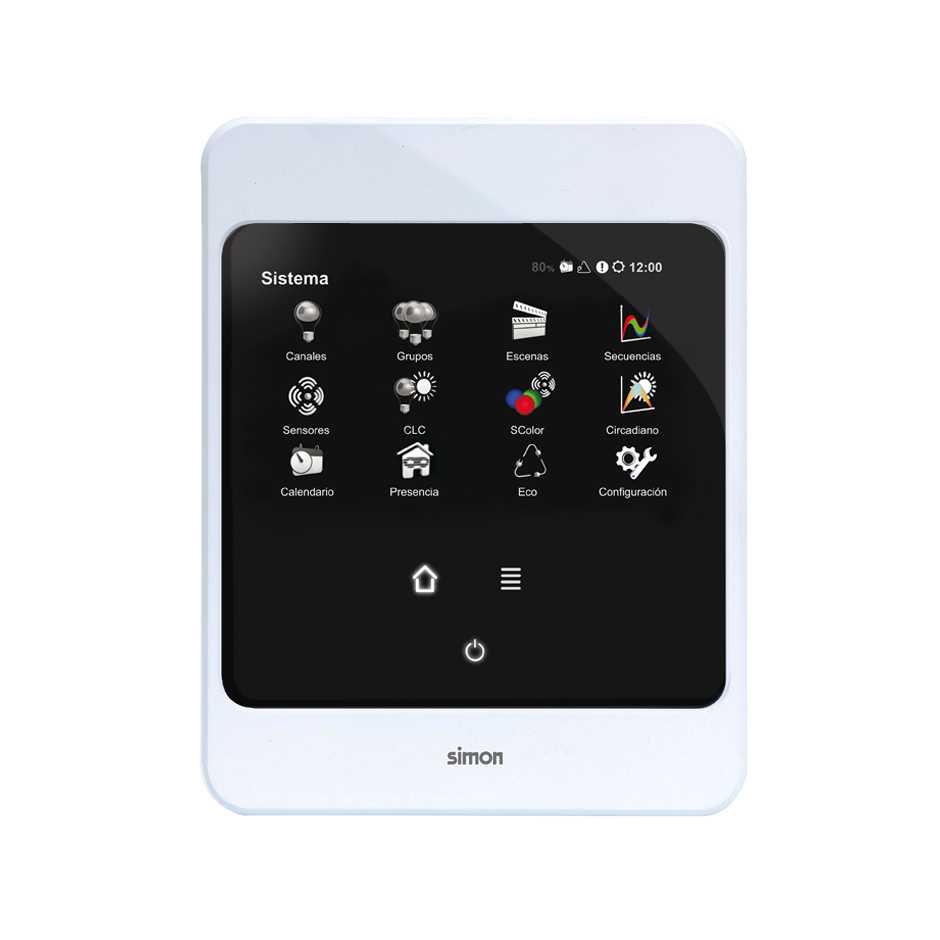

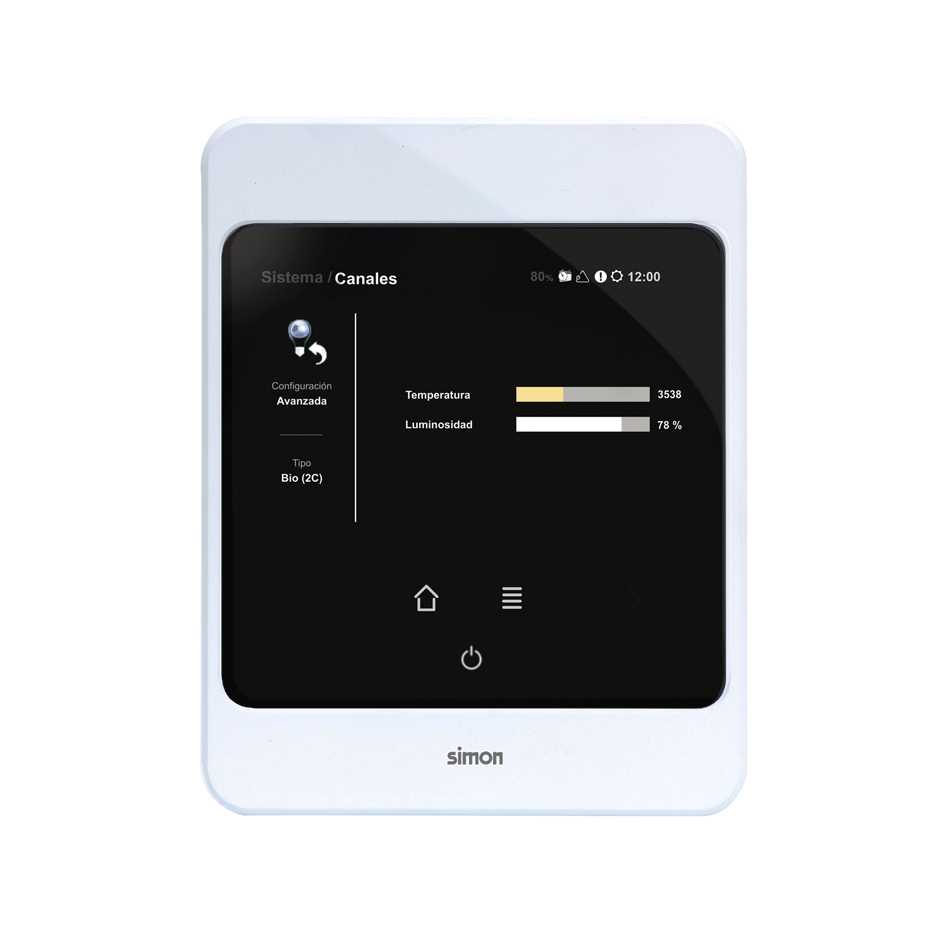

Touch LightManager Advance console menu front view

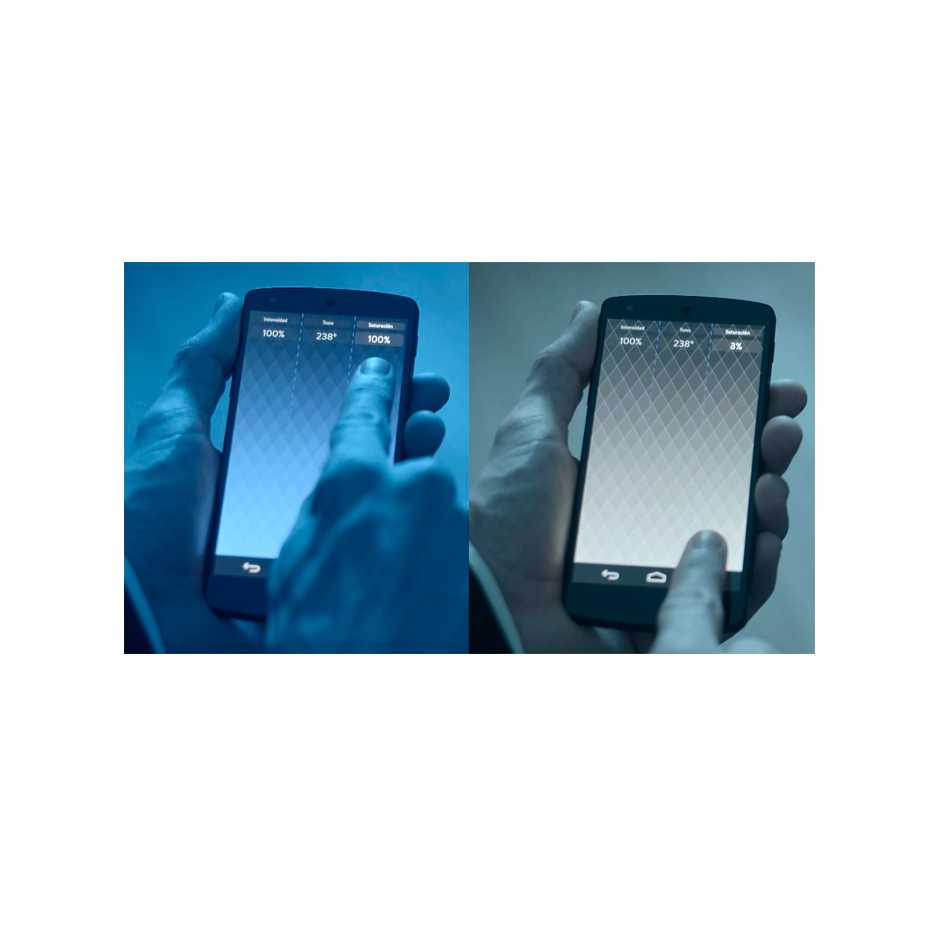

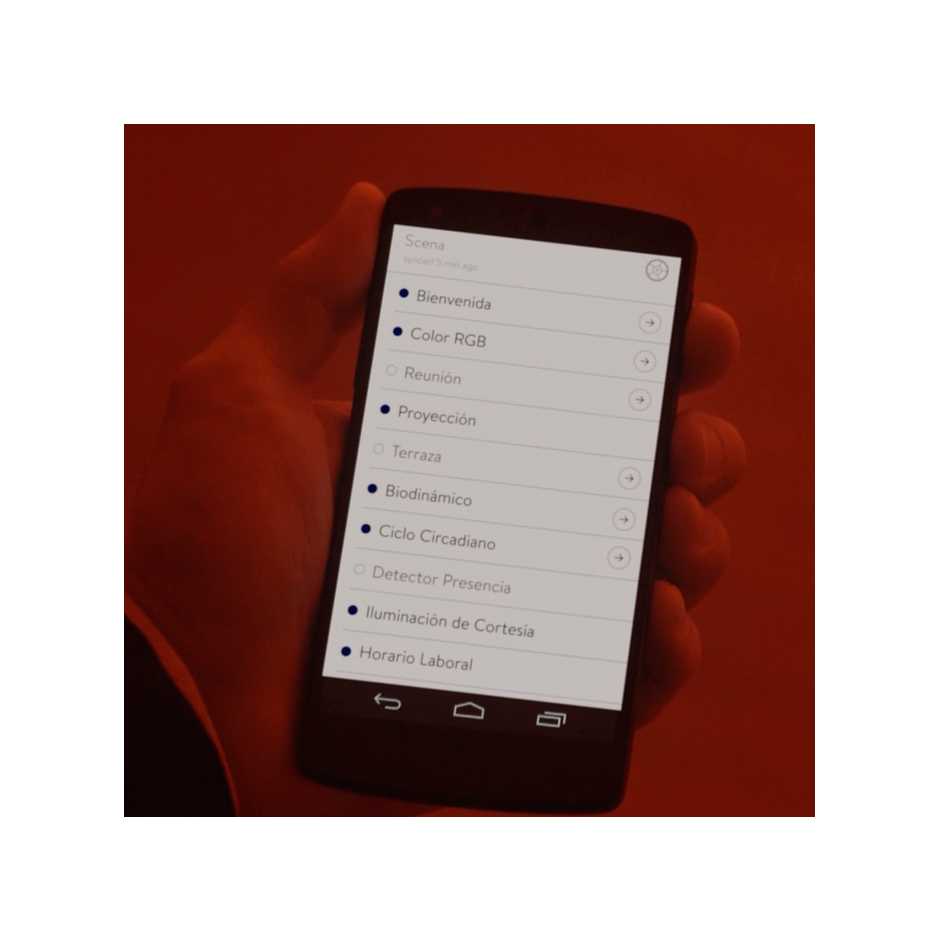

Application Simon Scena menu view

aplicacion-conversor dmx-pwm.jpg
