Ref
82915-68

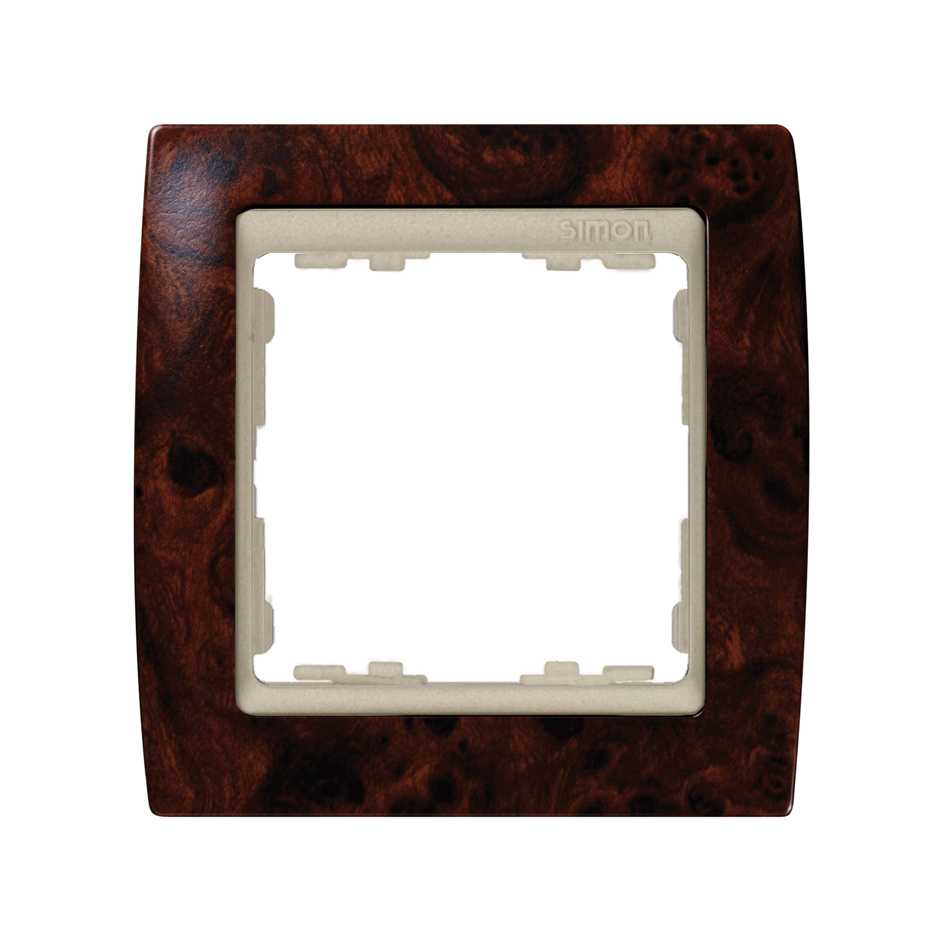

Frame for 1 element walnut root interior champagne Simon 82

Price/Unit
Price on request
Discontinued
Packaging quantity
10 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82

Because the details make the difference, style and personality of both your home and business, we offer you the spectacular frame for 1 element in walnut root and indoor champagne, of the wide range of colors and designs Simon 82. Measures 89x87 mm, with capacity to adapt in 1,2,3 and up to 4 elements, manufactured in metallized thermoplastic baseboard and thermoplastic frame, it is capable of withstanding temperatures between 5 and 40º, being able to reach a maximum of between -25 and 50º C, as accepted and regulated by the regulation UNE-EN 60669-1: 2002 + A1: 2003 + A2: 2009 + UNE 20315-1-1: 2009 for this type of parts, we advise you to use the champagne finish for rockers and covers, for the installation it will be enough to press or place it on the surface-mounted. For your hygiene, use a soft, dry cloth, do not use cloths and / or abrasive cleaners containing chlorine.

Basic information
  • Compatibility

    Simon 75, Simon 77 and Simon 82 mechanisms

  • Remarks

    It is recommended to use the champagne finish for rockers and covers.

  • Finish

    Graphite/Wood

  • Material

    Plastic

  • Packaging contents

    Frame with 1 element

Technical information
  • Market available

    CE

  • Available in

    1, 2, 3 and 4 elements

  • Inner frame

    Champagne

  • IP Rating

    IP21

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    1 element

  • Dimensions (mm)

    89 x 87

Installation and maintenance
  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2:2008

Logistics Information
  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    931040MMQ

  • Product net weight

    0.033KGM

  • Product gross weight

    0.033KGM

  • Product EAN

    8421053262221

  • Packaging quantity

    10

  • Packaging height

    92MMT

  • Packaging width

    92MMT

  • Packaging length

    110MMT

  • Packaging volume

    931040MMQ

  • Packaging net weight

    0.33KGM

  • Packaging gross weight

    0.33KGM

  • Packaging EAN

    8421053054901
