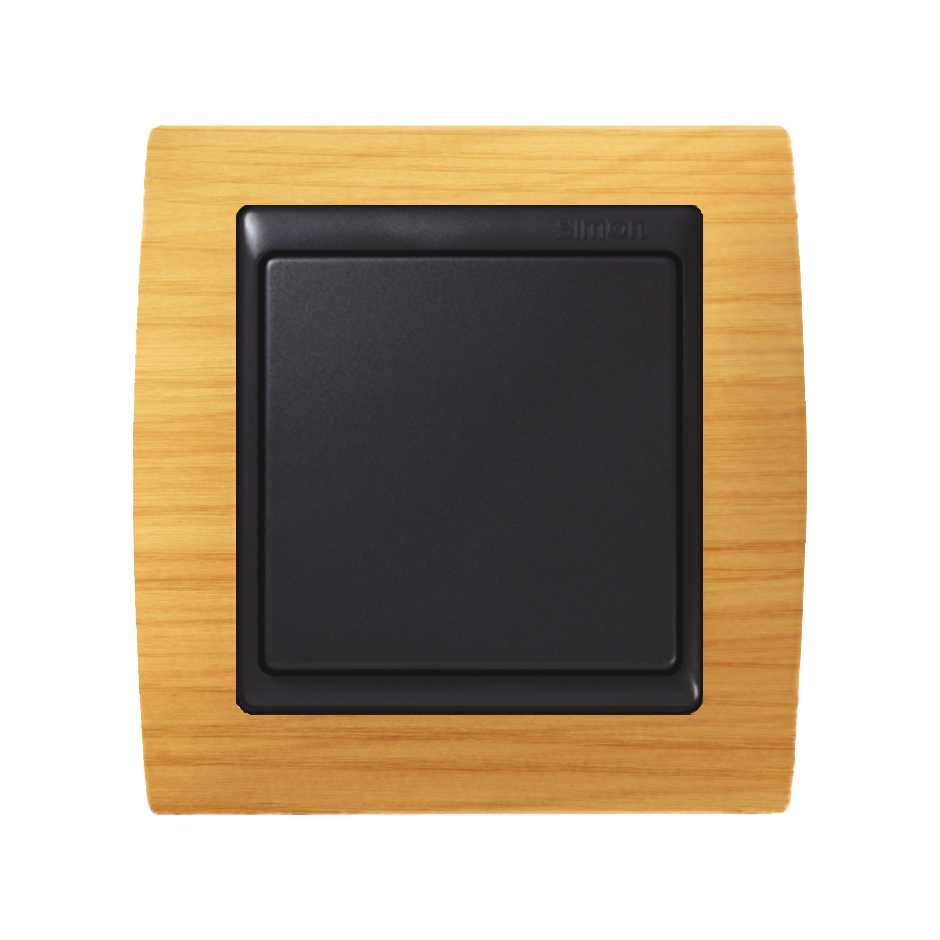

This image represents the combined solution of different references

This image represents the combined solution of different references

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
82825-69

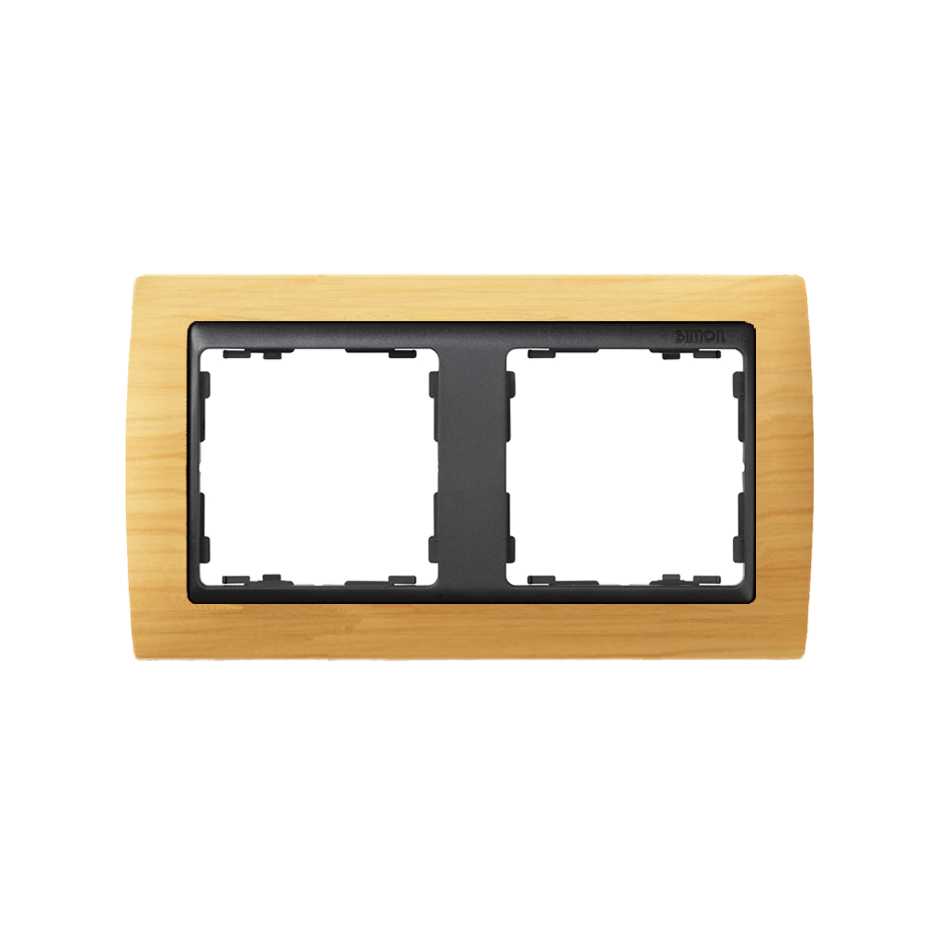

Frame for 2 elements pine interior graphite Simon 82

Price/Unit
€23.52
Hasta fin de existencias
Packaging quantity
10 Units

Available downloads

Data sheet

82825-69.pdf

Product declaration

  1. UES0092_7.pdf [231KB]

Drawing files

  1. Plano marco 2 elementos Simon 82.pdf []

Ask for advice
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82

Ref
82097-38
Plate for R/TV/SAT inductive sockets graphite Simon 82
Ref
82062-68
Plate for telephone sockets with RJ11 and RJ12 connectors graphite Simon 82
Ref
82041-38
Cover with safety device for German socket outlet graphite Simon 82
Ref
82026-38
Double rocker for switches graphite Simon 82
Ref
82010-38
Single rocker for switches graphite Simon 82
Información de Producto
Soporte
Basic information

  • Compatibility

    Simon 75, Simon 77 and Simon 82 mechanisms

  • Remarks

    It is recommended to use the graphite finish for rockers and covers.

  • Finish

    Wood

  • Material

    Plastic

  • Packaging contents

    Frame with 2 elements

Technical information

  • Market available

    CE

  • CE certification

  • Available in

    1, 2, 3 and 4 elements

  • Inner frame

    Graphite

  • IP Rating

    IP21

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    2 elements

  • Dimensions (mm)

    158 x 89

Installation and maintenance

  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009 + UNE 20315-1-1:2009

Logistics Information

  • Product net weight

    0.044 KGM

  • Product gross weight

    0.044 KGM

  • Product EAN

    8421053261736

  • Packaging quantity

    10

  • Packaging height

    86 MMT

  • Packaging width

    120 MMT

  • Packaging length

    172 MMT

  • Packaging volume

    1775040 MMQ

  • Packaging net weight

    0.44 KGM

  • Packaging gross weight

    0.442 KGM

  • Packaging EAN

    8421053004210
