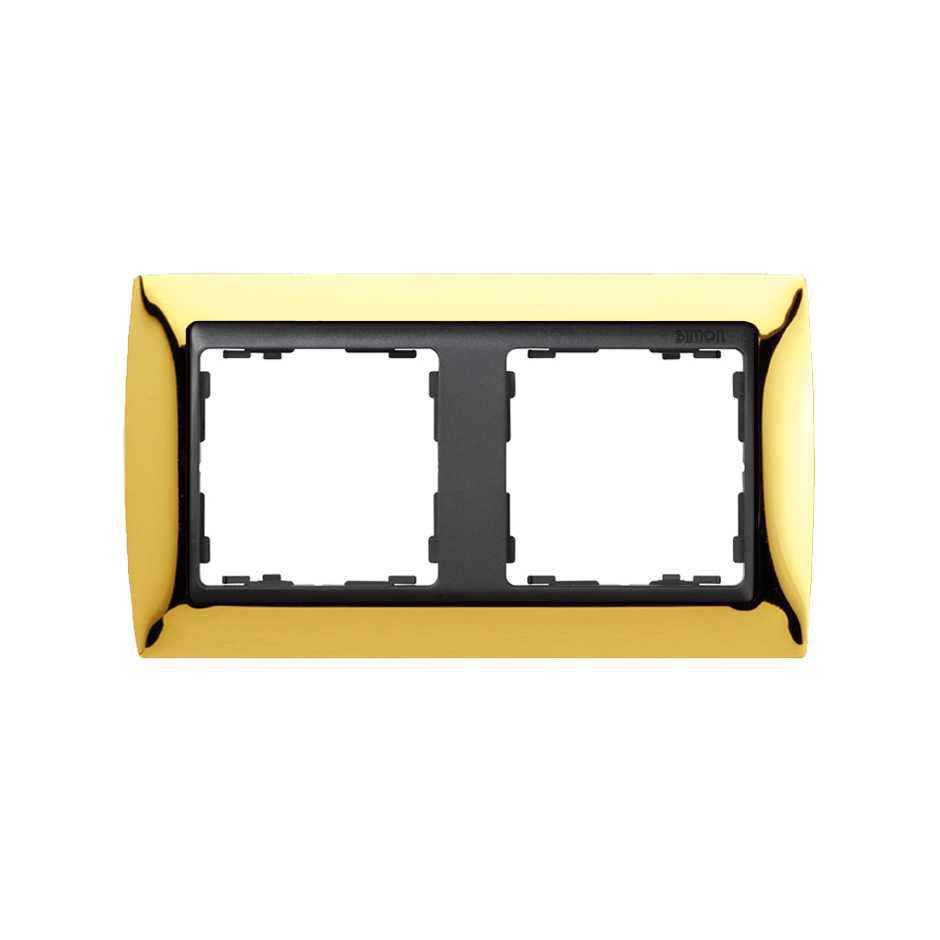

Frame for 2 elements gold interior graphite Simon 82

REFERENCE NO.: 82824-66
R.P.: Price on request
PACKAGING: 10 Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 82
Version:  2 elements
Product range:  Noble metal
Frame finish:  Gold
Inner frame:  Graphite
Available in:  1, 2, 3 and 4 elements.
Compatibility:  Simon 75, Simon 77 and Simon 82 mechanisms
Installation direction:  Vertical and horizontal
Packaging contents:  Frame with 2 elements
Remarks:  It is recommended to use the graphite finish for rockers and covers.

TECHNICAL INFORMATION

Dimensions:  158x89 mm
IP rating:  21
RAL:  Does not have
Manufacturing material:  Thermoplastic base and Zamak frame
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  UNE-EN 60669-1:2002 + A1:2003 + A2:2009 + UNE 20315-1-1:2009

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Installable in flush mount junction box:  Universal
Operating temperature range:  5 to 40 ºC
Storage temperature range:  -25 to 50 ºC
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  10
Box measurement unit:  MM
Height:  86.000
Wide:  120.000
Depth:  172.000
Box volume:  1775040.000
Box volume measurement unit:  MMQ
Net weight of box:  1.020
Unit weight of box:  KGM
EAN code:  8421053054581
Available in multiple box:  No
Available on pallet:  No

GALLERY


Frame Simon 82 gold interior graphite front view

82814-66-solucion-completa-marco-1-elemento-oro-zocalo-grafito-simon-82-frontal_2.jpg

This image represents the combination of different references

82814-66-solucion-completa-marco-1-elemento-oro-zocalo-grafito-simon-82-frontal_2.jpg

DRAWING AND DIMENSIONS

manual
Drawing Frame for 2 elements gold interior graphite Simon 82 DOWNLOAD

PRODUCT DECLARATIONS

manual
UE declaration Frame for 2 elements gold interior graphite Simon 82 DOWNLOAD
