Ref
82824-64

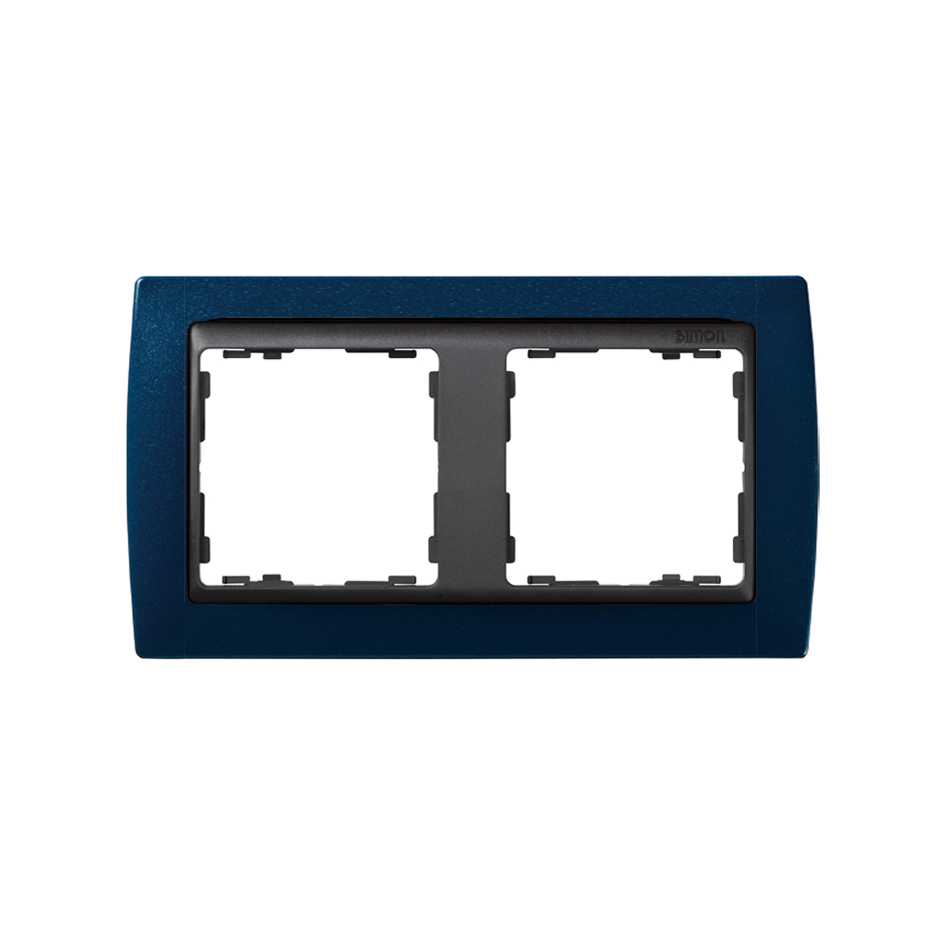

Frame for 2 elements metallic blue interior graphite Simon 82

Price/Unit
€22.86
Descatalogado
Packaging quantity
10 Units
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82

Basic information
  • Compatibility

    Simon 75, Simon 77 and Simon 82 mechanisms

  • Remarks

    It is recommended to use the graphite finish for rockers and covers.

  • Finish

    Metallic blue

  • Material

    Metal

  • Packaging contents

    Frame with 2 elements

Technical information
  • Market available

    CE

  • Available in

    1, 2, 3 and 4 elements

  • Inner frame

    Graphite

  • IP Rating

    IP21

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    2 elements

  • Dimensions (mm)

    158 x 89

Installation and maintenance
  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009 + UNE 20315-1-1:2009

Logistics Information
  • Product volume

    1775040 MMQ

  • Product net weight

    0.094 KGM

  • Product gross weight

    0.094 KGM

  • Product EAN

    8421053261675

  • Packaging quantity

    10

  • Packaging height

    86 MMT

  • Packaging width

    120 MMT

  • Packaging length

    172 MMT

  • Packaging volume

    1775040 MMQ

  • Packaging net weight

    0.94 KGM

  • Packaging gross weight

    0.94 KGM

  • Packaging EAN

    8421053054567
