Ref
82822-32

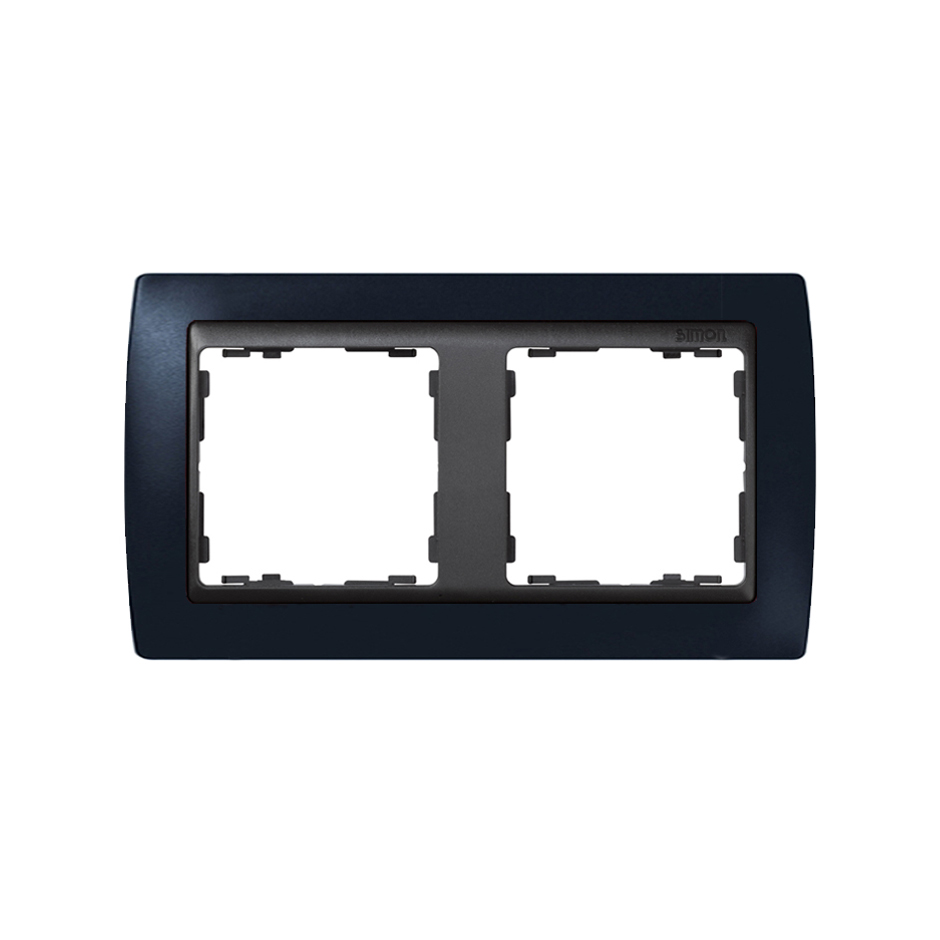

Frame for 2 elements graphite Simon 82

Price/Unit
€7.66
Packaging quantity
10 Units

Available downloads

Data sheet

82822-32.pdf

Product declaration

  1. UES0092_7.pdf [231KB]

Drawing files

  1. Plano marco 2 elementos Simon 82.pdf []

Ask for advice
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82

Ref
82097-38
Plate for R/TV/SAT inductive sockets graphite Simon 82
Ref
82062-68
Plate for telephone sockets with RJ11 and RJ12 connectors graphite Simon 82
Ref
82041-38
Cover with safety device for German socket outlet graphite Simon 82
Ref
82026-38
Double rocker for switches graphite Simon 82
Ref
82010-38
Single rocker for switches graphite Simon 82
Información de Producto
Soporte
Basic information

  • Compatibility

    Simon 75, Simon 77 and Simon 82 mechanisms

  • Remarks

    It is recommended to use the graphite finish for rockers and covers.

  • Finish

    Graphite

  • Material

    Plastic

  • Packaging contents

    Frame with 2 elements

Technical information

  • Market available

    CE

  • CE certification

  • Available in

    1, 2, 3 and 4 elements

  • Inner frame

    Graphite

  • IP Rating

    IP21

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    2 elements

  • Dimensions (mm)

    158 x 89

Installation and maintenance

  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface and flush mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009 + UNE 20315-1-1:2009

Logistics Information

  • Product net weight

    0.04 KGM

  • Product gross weight

    0.04 KGM

  • Product EAN

    8421053261620

  • Packaging quantity

    10

  • Packaging height

    86 MMT

  • Packaging width

    120 MMT

  • Packaging length

    172 MMT

  • Packaging volume

    1.775 DMQ

  • Packaging net weight

    0.4 KGM

  • Packaging EAN

    8421053090299
