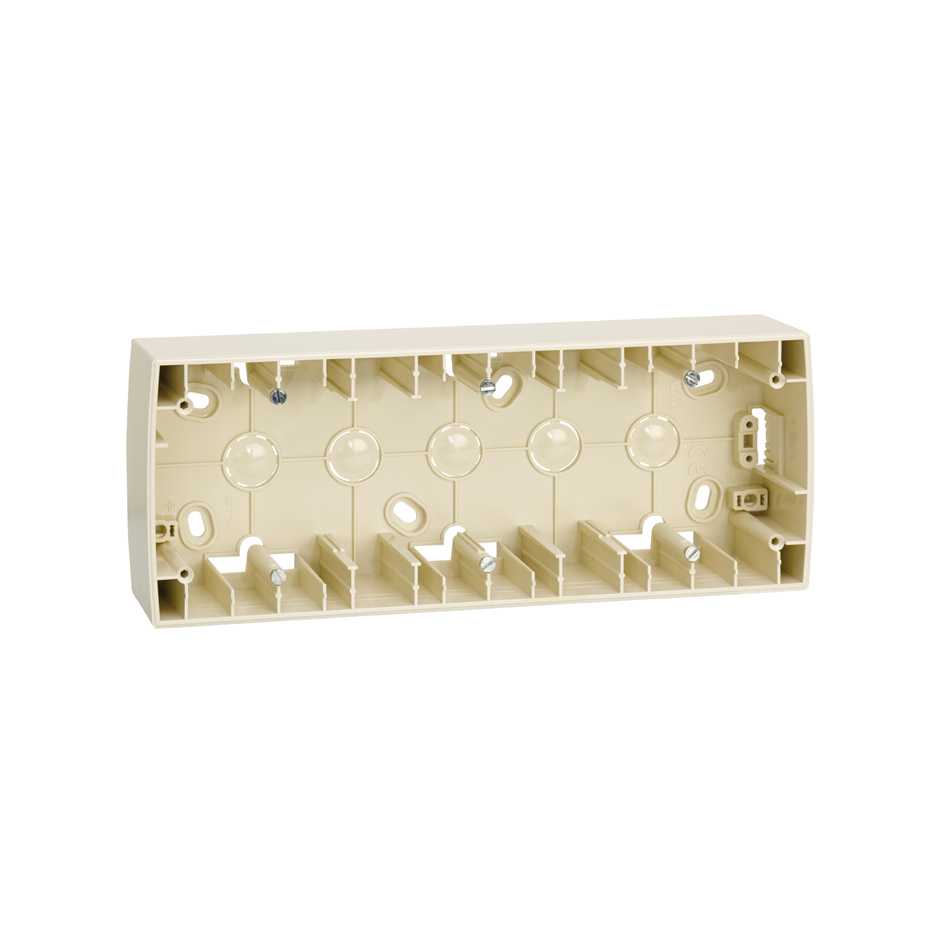

High surface-mount box for 3 elements ivory Simon 82
REFERENCE NO.:
82771-31
R.P.:
Price on request
PACKAGING:
5Units
BASIC INFORMATION
Series:
Simon 82
Version:
3 elements
Finish:
Ivory
Available in:
1, 2 and 3 elements
Compatibility:
Simon 75, Simon 77 and Simon 82 mechanisms
Installation direction:
Vertical and horizontal
Packaging contents:
Surface-mount box with 3 elements
Remarks:
It is recommended to use the ivory finish for rockers and covers.
TECHNICAL INFORMATION
Dimensions:
229x89 mm
Depth:
43 mm
IP rating:
20
RAL:
Does not have
Manufacturing material:
Thermoplastic
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
UNE-EN 60670-1:2006
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for surface mounting
Operating temperature range:
5 to 40 ºC
Storage temperature range:
-25 to 50 ºC
Maintenance:
Use a soft cloth slightly dampened with soapy water.
Do not use abrasive cloths or cleaning products that contain chlorine.
LOGISTIC DATA
Available in display box:
Yes
Packaging quantity:
5
Box measurement unit:
MM
Height:
95.000
Wide:
230.000
Depth:
240.000
Box volume:
5244000.000
Box volume measurement unit:
MMQ
Net weight of box:
0.815
Unit weight of box:
KGM
EAN code:
8421053071908
Available in multiple box:
No
Available on pallet:
No
