Ref
82761-38

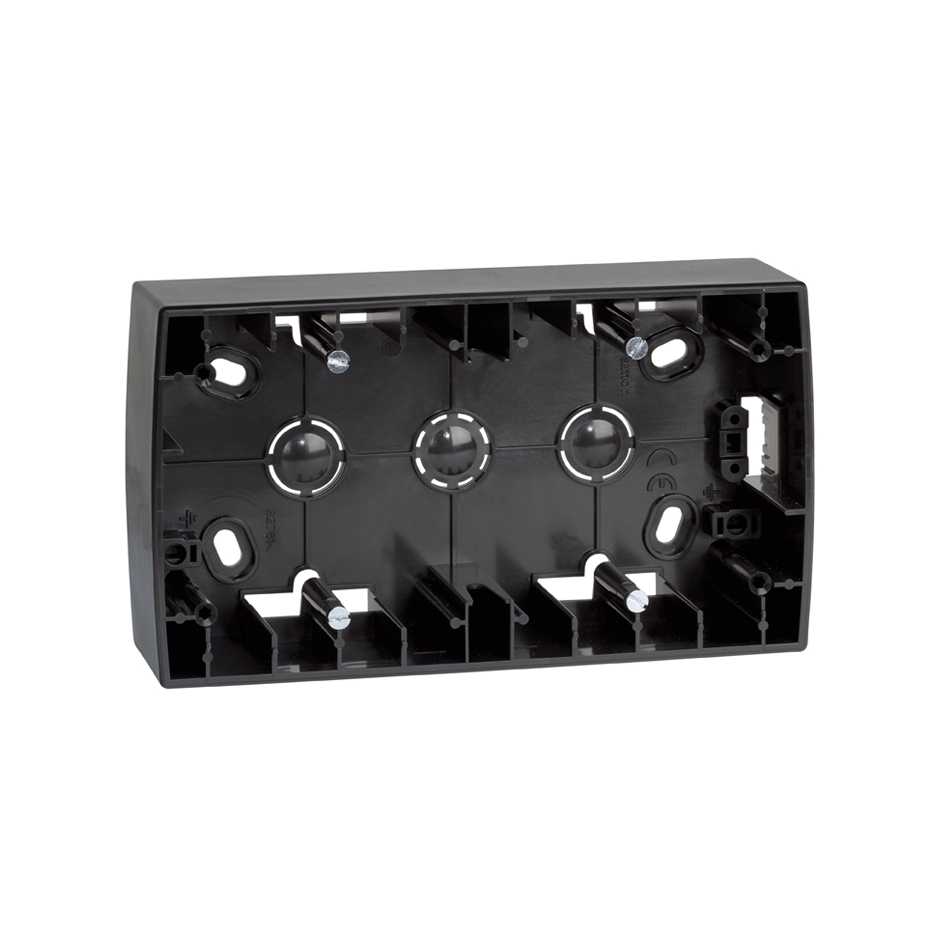

High surface-mount box for 2 elements graphite Simon 82

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Technical specifications
82761-38-datasheet-en.pdf
Product declaration

  1. UES0115.pdf [485KB]

Do you need advice?
Outstanding Features
Series
Simon 82
Series Compatibility

Simon 82

<p class=></p>
Ref
82825-69
Frame for 2 elements pine interior graphite Simon 82
<p class=></p>
Ref
82825-68
Frame for 2 elements walnut root interior graphite Simon 82
<p class=></p>
Ref
82825-61
Frame for 2 elements cherry interior graphite Simon 82
<p class=></p>
Ref
82824-67
Frame for 2 elements dark steel interior graphite Simon 82
<p class=></p>
Ref
82824-66
Frame for 2 elements gold interior graphite Simon 82
<p class=></p>
Ref
82824-65
Frame for 2 elements textured green interior graphite Simon 82
<p class=></p>
Ref
82824-64
Frame for 2 elements metallic blue interior graphite Simon 82
<p class=></p>
Ref
82824-60
Frame for 2 elements granite grey interior graphite Simon 82
<p class=></p>
Ref
82824-37
Frame for 2 elements metallic garnet interior graphite Simon 82
<p class=></p>
Ref
82824-36
Frame for 2 elements old copper interior graphite Simon 82
<p class=></p>
Ref
82824-34
Frame for 2 elements matt champagne interior graphite Simon 82
<p class=></p>
Ref
82824-33
Frame for 2 elements matt aluminium interior graphite Simon 82
<p class=></p>
Ref
82822-32
Frame for 2 elements graphite Simon 82
Product Information
Downloads
Support
Basic information

  • Compatibility

    Simon 75, Simon 77 and Simon 82 mechanisms

  • Remarks

    It is recommended to use the graphite finish for rockers and covers.

  • Finish

    Graphite

  • Material

    Plastic

  • Packaging contents

    Surface-mount box with 2 elements

Technical information

  • Market available

    CE

  • Available in

    1, 2 and 3 elements

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Version

    2 elements

  • Depth (mm)

    37

  • Dimensions (mm)

    158 x 89 x 37

Installation and maintenance

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface mounting

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    UNE-EN 60670-1:2006

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.104KGM

  • Product gross weight

    0.104KGM

  • Product EAN

    8421053261286

  • Packaging quantity

    5

  • Packaging height

    91MMT

  • Packaging width

    166MMT

  • Packaging length

    195MMT

  • Packaging volume

    2945670MMQ

  • Packaging net weight

    0.52KGM

  • Packaging gross weight

    0.52KGM

  • Packaging EAN

    8421053026342
