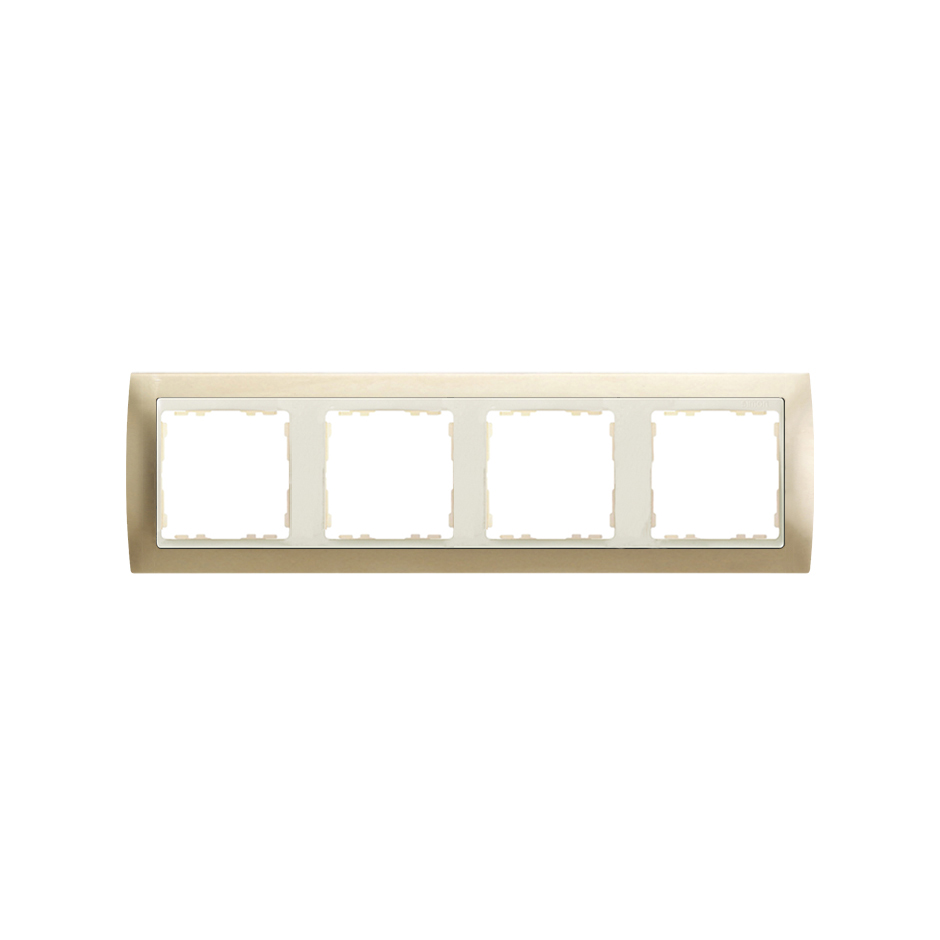

Frame for 4 elements matt champagne interior ivory Simon 82
REFERENCE NO.:
82744-34
R.P.:
Price on request
PACKAGING:
5Units
BASIC INFORMATION
Series:
Simon 82
Version:
4 elements
Product range:
Noble metal
Frame finish:
Matt champagne
Inner frame:
Ivory
Available in:
1, 2, 3 and 4 elements.
Compatibility:
Simon 75, Simon 77 and Simon 82 mechanisms
Installation direction:
Vertical and horizontal
Packaging contents:
Frame with 4 elements
Remarks:
It is recommended to use the ivory finish for rockers and covers.
TECHNICAL INFORMATION
Dimensions:
300x89 mm
IP rating:
21
RAL:
Does not have
Manufacturing material:
Thermoplastic base and Zamak frame
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
UNE-EN 60669-1:2002 + A1:2003 + A2:2009 + UNE 20315-1-1:2009
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for flush mounting
Installable in flush mount junction box:
Universal
Operating temperature range:
5 to 40 ºC
Storage temperature range:
-25 to 50 ºC
Maintenance:
Clean with a soft, dry cloth.
Do not use abrasive cloths or cleaning products that contain chlorine.
LOGISTIC DATA
Available in display box:
Yes
Packaging quantity:
5
Box measurement unit:
MM
Height:
55.000
Wide:
91.000
Depth:
306.000
Box volume:
1509750.000
Box volume measurement unit:
MMQ
Net weight of box:
0.915
Unit weight of box:
KGM
EAN code:
8421053054307
Available in multiple box:
No
Multiple box packaging quantity:
10
Multiple box packaging quantity measurement unit:
ZCM
Height of multiple box:
0.000
Width of multiple box:
0.000
Depth of multiple box:
0.000
Multiple box volume:
0.000
Net weight of multiple box:
1.830
Unit weight of multiple box:
KGM
Available on pallet:
No
